How External Scaffolding Ringlock System Boosts Site Safety?

Proven Modular Construction with Inherent Safety Features

External Scaffoldings Ringlock System safeguards the laborers since each component is designed to lock rather than hang loosely, it has tight tolerance control and a perfect fit. The Ringlock Standard has octagonal rings, the Ringlock Scaffolding Horizontal and also each diagonal secures into those rings using wedge pin. This forms a solid three dimensional bay, so the frame is resistant to sway and maintains its shape under loads. The design has its origins in the Layher system, developed over years of site application. As a Modular Ringlock Scaffolding System, it takes the guesswork out of pipe-and-coupler configurations, eliminates loose clips and tie wire, and provides every crew with a structure that is square, plumb and predictable. All the components of Tianjin Huayou Scaffolding are made of high strength steel with anti-rust surface.



Clear Specifications from a Complete Component Range

Component Outer Diameter (mm) Thickness (mm) Length / Size
Ringlock Standard 48.3 / 60.3 2.5 / 3.0 / 3.2 / 4.0 0.5 – 4.0 m
Ringlock Scaffolding Ledger 48.3 / 42 2.0 – 4.0 0.39 – 4.14 m
Ringlock Scaffolding Horizontal 48.3 / 42 2.0 – 4.0 0.46 – 3.07 m
Diagonal Brace 48.3 / 42 / 33 2.0 – 4.0 1.5 / 2.0 m vertical
Steel Plank 320 wide 1.2 – 2.0 0.73 – 3.07 m
Aluminium Access Deck 600 – 730 wide – 2.07 – 3.07 m
Construction material: STK400 / STK500 / Q235 / Q355 / S235 Surface treatment: hot dip galvanized, electro-galvanized, painted or powder coating. MOQ 100Sets, Delivery Time 20Days. Under custom lengths & drawings are available from Tianjin Huayou Scaffolding.

A Secure Fit with a Wedge-Locking Core

[PRO]

Triangular bracing – Each bay forms a rigid triangle to help prevent sway under heavy loads.
[PRO]

Tight wedge connection – The ledger seats securely against the octagonal ring, leaving little room for movement.
[PRO]

Fewer loose parts – The system does away with clips, bolts and tie wire that can slip or loosen.
[PRO]

Consistent components – Pre-designed parts help simplify assembly and make inspections quicker.
[PRO]

Strong steel tubes – STK400, Q235 and Q355 steel provide reliable support while limiting unwanted flex.
[PRO]

Galvanized protection – A hot-dip coating helps guard against rain, salt and wear from repeated use.
[PRO]

Built to recognized standards – Designed to meet European Ringlock scaffolding requirements for dependable performance.

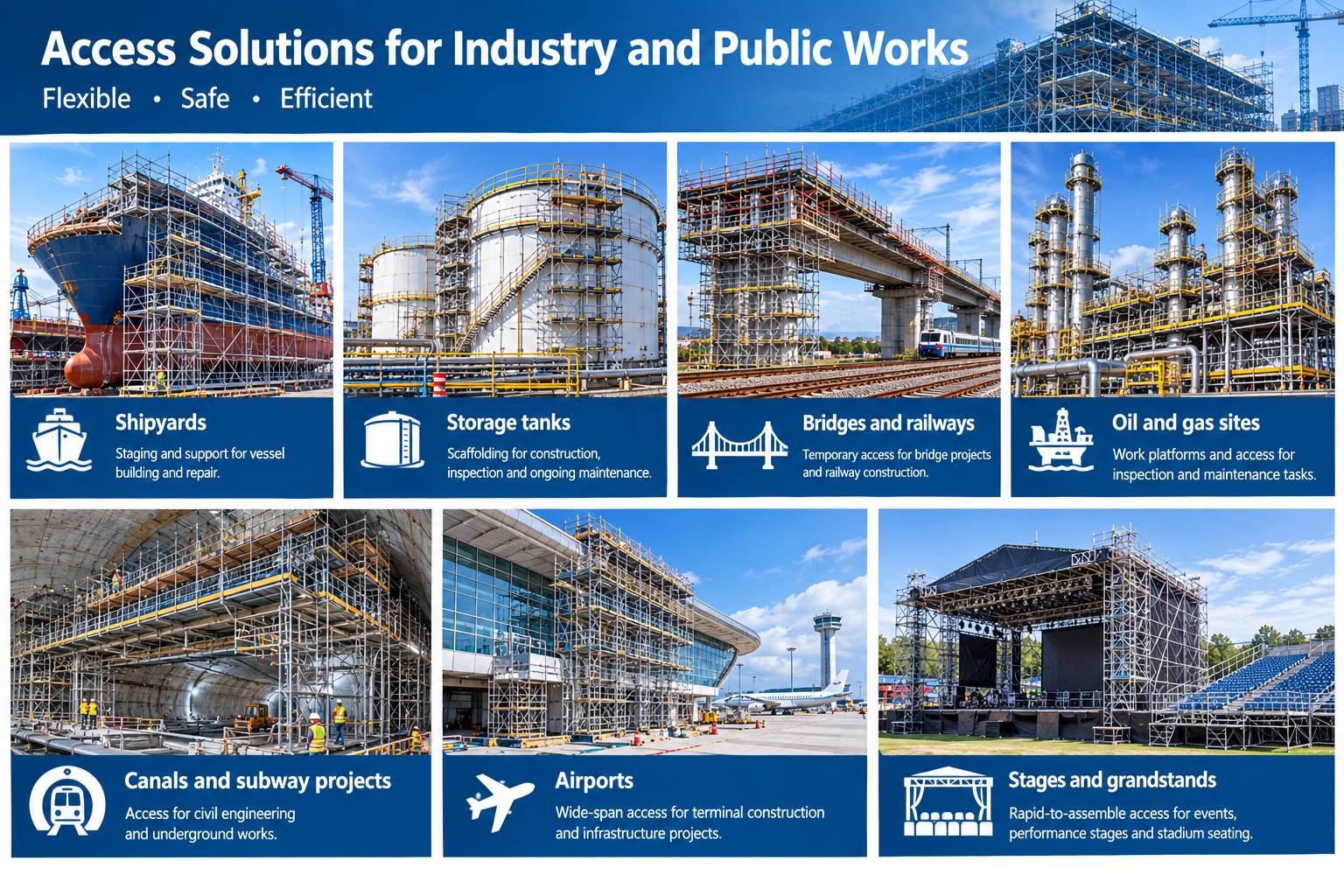

Access Solutions for Industry and Public Works



Shipyards



Storage tanks



Bridges and railways



Oil and gas sites



Canals and subway projects



Airports



Stages and grandstands

Safe delivery from the factory in Tianjin

  •

    Pre-galvanize Dispatch – Hot-dip galvanized for corrosion protection, completed and inspected before shipment.

  •

    Packed by Component – Standards, ledgers and braces are bundled separately to the site sorting.

  •

    Waterproof Packaging – With waterproof paper to protect moisture and surface scratches.

  •

    White Iron Protection Coated – Steel Corner Guards are included to protect the ends during handling and transit.

  •

    Mounted on Pallets or on Racks – Placed on wooden pallets or on metal racks to avoid to move during transportation.

  •

    Tianjin Huayou Scaffolding Carefully Container Loading - Carefully loaded in to containers from Tianjin Port, Each shipment is handled by.

  •

    With Test Certificates – Mill and test certificates are provided by Tianjin Huayou Scaffolding for`s customs clearance.

  •

    Tailor-made Packing --Special packing is available according to place of destination.

Frequently Asked Questions

Q1: How does this system enhance site safety?

A1: The Horizontal and diagonal of Ringlock Scaffolding lock into a rigid triangular formation through wedge pins, so the assembly is impervious to sway and it maintains its shape when subject to load.

Q2: What is the scope of supply?

A2: Modular Ringlock Scaffolding System Complete system including standards, ledgers, diagonals, base collars, jacks, steel planks, access decks, ladders and more.

Q3: What are the materials?

A3: High strength steel (STK400, Q235, Q355 etc), hot-dip galvanized or painted finish.

Q4: Is the light weight type available?

A4: Yes, we also provide Aluminium Ringlock Scaffolding for the lighter access work.

Q5: Are you selling worldwide?

A5: Indeed, Tianjin Huayou Scaffolding sells well to all over the world, nearly 50 countries or regions, all the customers come from Tianjin Port.
