In the context of the rapid development of the construction industry nowadays, the safety of high-altitude operations and the construction efficiency have always been the top priorities for project managers. The Cuplock scaffolding system, as one of the most popular modular scaffolding solutions worldwide, with its outstanding versatility and reliable structural performance, is providing safety guarantees for an increasing number of engineering projects. Whether it is ground construction or suspended operations, or fixed configuration or mobile tower form, the Cuplock system can perfectly meet the safety operation requirements under various complex working conditions.
Understanding the Cuplock Scaffolding Bracing.

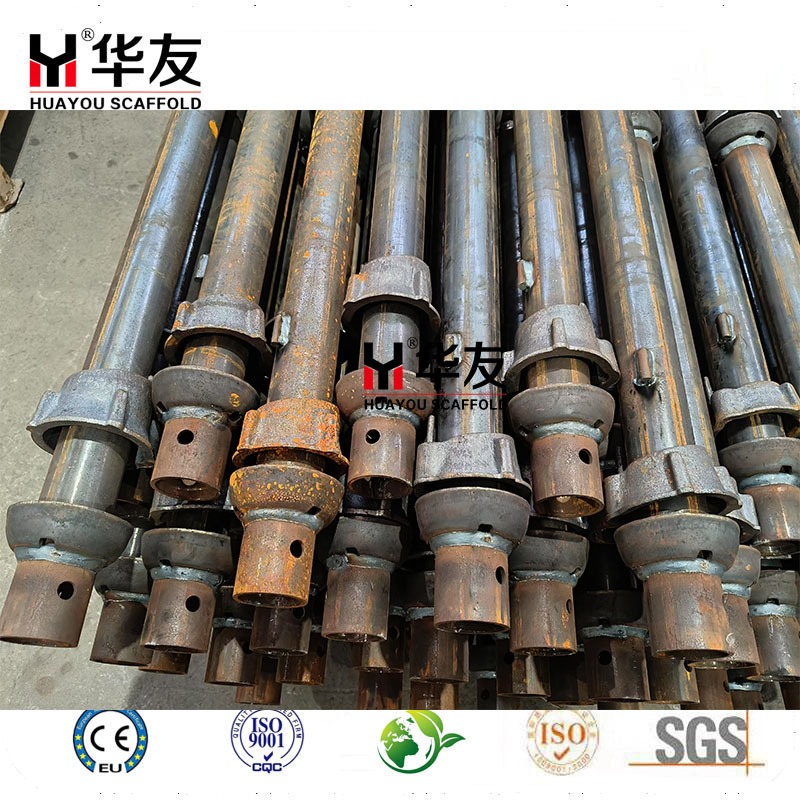

The Cuplock modular scaffolding system is similar to the Ringlock system. It is mainly composed of upright rods, horizontal rods, diagonal braces, adjustable bases, U-shaped top supports, and walkway boards, among other core components. Its unique cup-lock connection design enables it to perform well in various types of construction projects and is widely recognized in the industry as an excellent scaffolding solution.
In modern construction where both safety and efficiency are prioritized, the Cuplock system, with its innovative cup-locking locking mechanism, achieves the dual advantages of rapid assembly and reliable connection. This system is composed of vertical posts and horizontal beams, and forms a stable framework structure through unique cup-shaped connectors, which can withstand significant loads while ensuring the stability of the overall structure.
Core elements for the safe assembly of Cuplock tower
1. Foundation preparation and site assessment
The first step in safely assembling a Cuplock scaffolding tower is to conduct a comprehensive site assessment. It is essential to ensure that the ground is flat and solid, with sufficient bearing capacity. Adjustable bases (Base Jacks) should be used to accommodate minor ground undulations, ensuring the entire tower is vertically stable. For soft soil foundations, additional reinforcement measures should be taken to prevent uneven settlement.
2. Precise Installation of Posts and Crossbars

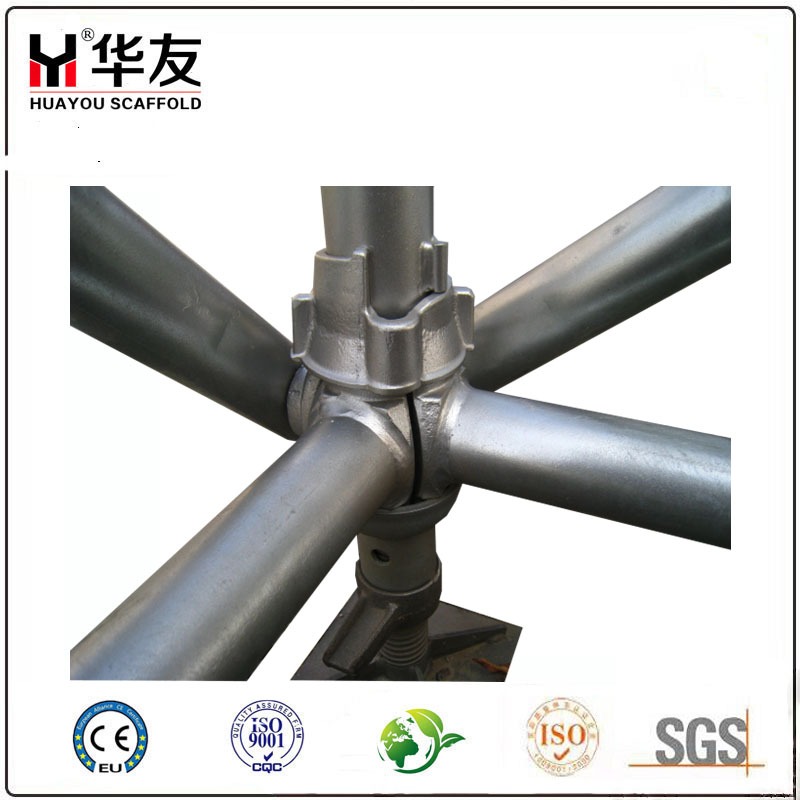

The core advantage of the Cuplock system lies in its cup-locking connection mechanism. During installation, insert the plug of the crossbar (Ledger) into the lower bowl of the post (Standard), secure the upper bowl, and tap it firmly. This design not only significantly improves the installation efficiency but also ensures the reliability of each connection point. Every step of the installation must check whether the bowl is fully locked, which is the foundation for ensuring the overall stability of the tower.
3. Correct Installation of Cuplock Scaffolding Diagonal Braces
During the construction of the Cuplock scaffolding tower, the installation of Cuplock scaffolding diagonal braces is a crucial step for ensuring structural stability. The diagonal braces can effectively transfer and distribute loads, resist horizontal wind forces and other lateral forces, and prevent the tower from deforming or toppling.
According to the engineering requirements, the diagonal braces can be designed in either the traditional form of steel pipes with fasteners, or with special diagonal braces equipped with riveting heads. Regardless of the chosen form, it is essential to ensure that the connection between the diagonal braces and the upright rods is firm and reliable, and to set them according to the spacing and angle specified in the design plan. Usually, a diagonal brace needs to be set at every several spans to form a complete structural system.
4. Work Platform and Safety Protection
When laying walkway boards (Steel Boards) on the Cuplock scaffolding tower, steel steps of appropriate specifications should be selected. The commonly used 225x38mm steel steps, with a thickness ranging from 1.3mm to 2.0mm, can provide sufficient load-bearing capacity. The steps must be fully and stably laid without any protruding parts. At the same time, guardrails and toeboards should be set at the edge of the working surface to prevent personnel and materials from falling.
5. Top structure and ancillary accessories
According to construction requirements, U-shaped top supports (U Head Jack) are installed on the top of the tower to support the formwork or other loads. When it is necessary to connect multiple working surfaces or transfer between different heights, dedicated walkways (Catwalk) and staircases (Staircase) should be set up to ensure the safety of personnel passage.
Summary
The safe construction of the Cuplock scaffold tower is a complex project that requires strict control over every aspect, from foundation treatment, pole installation, diagonal brace setting to safety measures. It is precisely because of the excellent design of the Cuplock system, combined with a standardized construction process, that its safe and efficient characteristics can be fully utilized, ensuring the safety of various construction projects. When conducting high-altitude work, always keep in mind: standardized construction is the prerequisite, the Cuplock scaffold diagonal braces are the key, and safety protection is the bottom line. Only when all three are combined can the goal of "safe work at heights" be truly achieved.
