Core Working Logic Of Octagonlock Scaffold Units
Many site contractors are curious about what makes Octagonlock Scaffolding Standard stand out among modular scaffold choices. As the central vertical post, it forms the backbone for Octagonlock System, delivering solid vertical bearing capacity for temporary construction works. Unlike ordinary disk-type scaffolds, Octagonlock adopts eight-sided octagonal discs to realise multi-direction component locking, which is the core feature of Scaffolding Octagonlock.
Unique Structural Differentiator On Job-sites

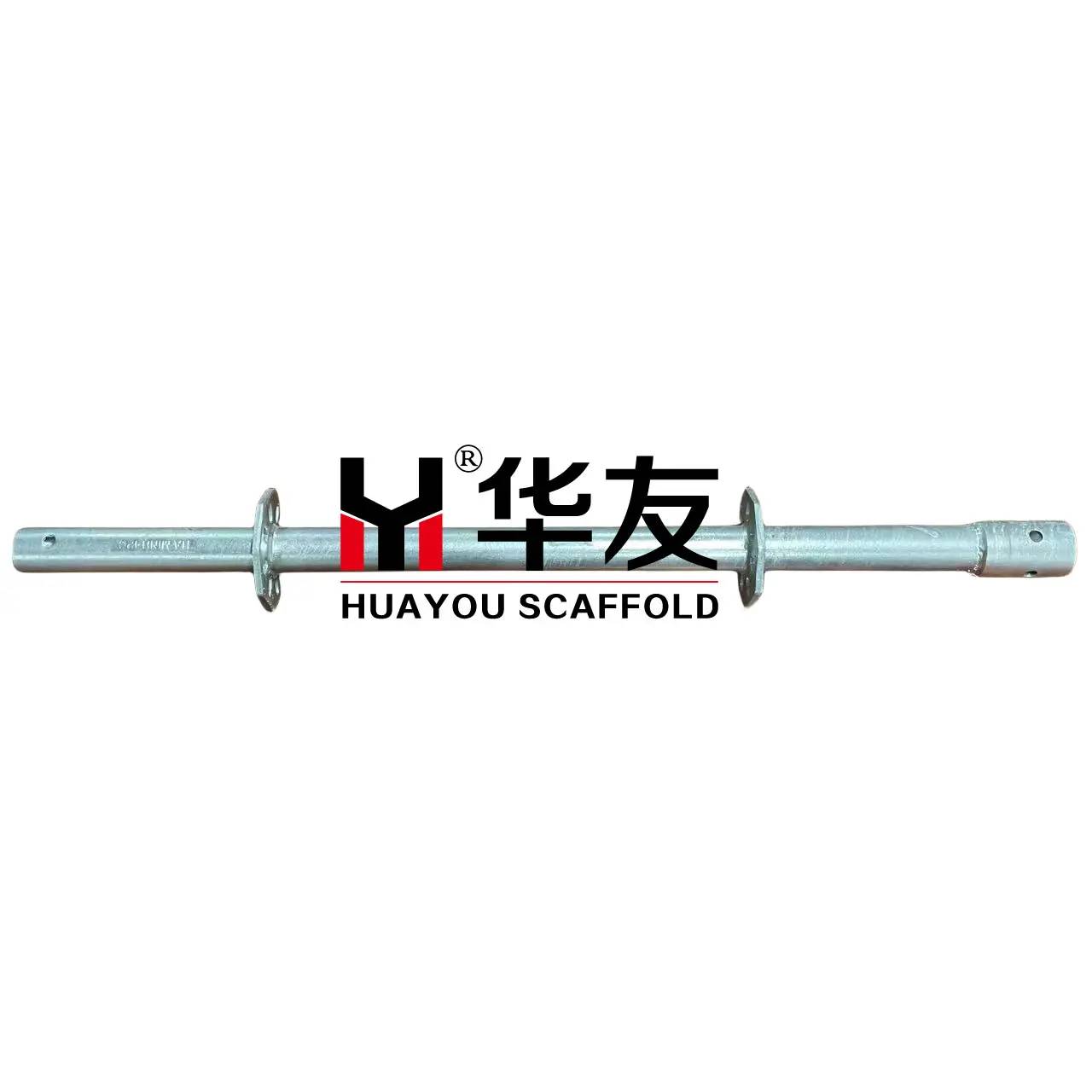

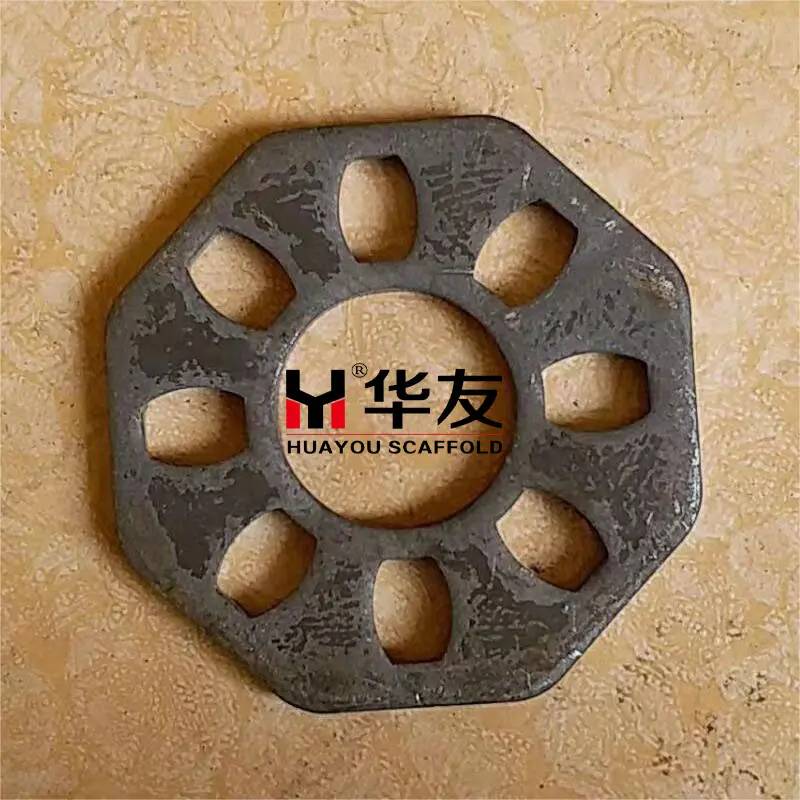

Manufactured from standard scaffold pipe, this vertical post uses 48.3mm outer diameter pipe with optional 2.5mm or 3.25mm wall thickness. Its octagon-shaped connecting disc comes in 8mm and 10mm thickness, pre-drilled with eight mounting holes. The core-to-core spacing between adjacent discs keeps 500 mm for consistent bay layout. One end is pre-welded outer sleeve, while the opposite pipe end reserves a 12-mm pin hole located 35 mm away from pipe terminus. Such precise machining simplifies mating with Octagonlock Scaffolding Ledger during on-site assembly.
|
Item |
Specification |
|
Pipe Outer Diameter |
48.3 mm |
|
Wall Thickness |
2.5 mm, 3.25 mm |
|
Octagon Disc Thickness |
8 mm, 10 mm, 8 connection holes |
|
Disc Core-to-core Spacing |
500 mm |
|
End Welded Part |
One-side welded outer sleeve |
|
Reserved Pin Hole |
12 mm hole, 35 mm from pipe end |
Huayou Manufacturing Strength And Supply Scope
Huayou means China’s friends, which established in the year of 2013 base on manufacturing scaffolding and formwork products. In order to expand more markets, we register one exporting company in the year of 2019, until now, our customers spread nearly 50 countries in the world. During these years, we already build a complete procurement system, quality controlling system, production procedure system, transportation system and professional exporting system etc. Can be said, we already grow into one of the most professional scaffolding and formwork manufacturing and exporting companies in China. Our production range covers the full-set Octagonlock Scaffolding System, also known as Scaffolding Octagonlock System, including matching Octagonlock Scaffolding Diagonal Brace for lateral stabilisation.
Practical Value For Global Construction Buyers

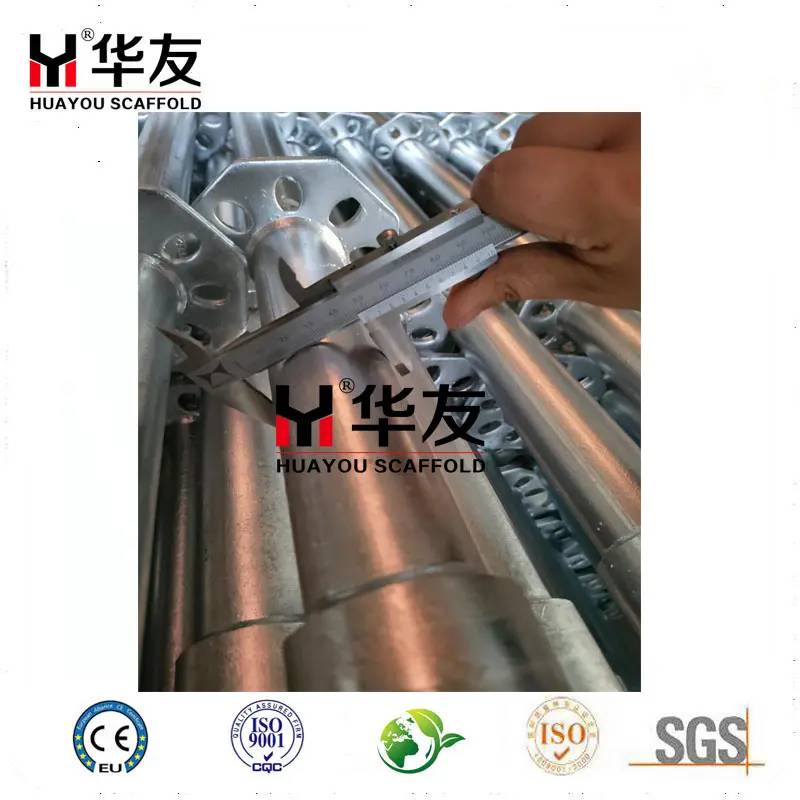

Well-fabricated vertical posts are critical for reliable modular scaffold performance. When matched with corresponding ledger and bracing parts, the whole Octagonlock Scaffolding System builds rigid scaffold bays for high-rise construction and heavy-load shoring tasks. Precise hole location and stable welded joints cut fitting errors and shorten erection cycles for field crews.
FAQ
Q: What key dimensions define Octagonlock Scaffolding Standard?
A: It adopts 48.3 mm OD pipe with 2.5 mm or 3.25 mm wall thickness; octagon discs sit 500 mm apart core-to-core, with pre-welded sleeve and reserved pin hole at pipe ends.
Q: Which parts can connect onto Octagonlock Scaffolding Standard?
A: Octagonlock Scaffolding Ledger and Octagonlock Scaffolding Diagonal Brace can lock onto eight-hole octagon discs to complete full scaffold frames.
Q: What advantages does Octagonlock System bring to construction sites?
A: Standardised disc spacing and precise pre-processing reduce on-site adjustment work and improve overall frame stability during erection.
Post time: Oct-20-2026
