In construction projects, the pouring of concrete is the core环节 that determines the quality of the structure. However， many people may overlook a crucial detail： the stability of the formwork system directly determines the safety and shaping effect of the concrete pouring. As the core component of formwork accessories， the Formwork Tie Rod and its matching nuts play an irreplaceable role. This article will deeply explore why the Formwork Tie Rod is crucial for safe pouring.
What is a Formwork Tie Rod?
Formwork Tie Rod, also known as Tie Bar Formwork, is the core load-bearing component used to firmly connect the two sides of the formwork. During the concrete pouring process, the liquid concrete will exert a huge lateral pressure. Without a strong enough tension rod system, the formwork may deform or even burst, resulting in serious safety accidents and quality issues.
Our Formwork Tie Rods usually adopt two mainstream diameters of D15/17mm and D20/22mm. The length can be customized according to the specific engineering requirements of the customers. This flexibility ensures that no matter how thick the wall is or how complex the structure is, there will always be a suitable tie rod to match.
The diverse configuration of the nut system
Just having the pull rods is not enough. The matching nuts are also crucial for ensuring the safety of the system. For different construction scenarios and types of formworks, we offer a wide range of nut options:
• Round nuts: Basic connection components, suitable for conventional wall formwork
• Wing nuts: Facilitate manual quick tightening, enhancing construction efficiency

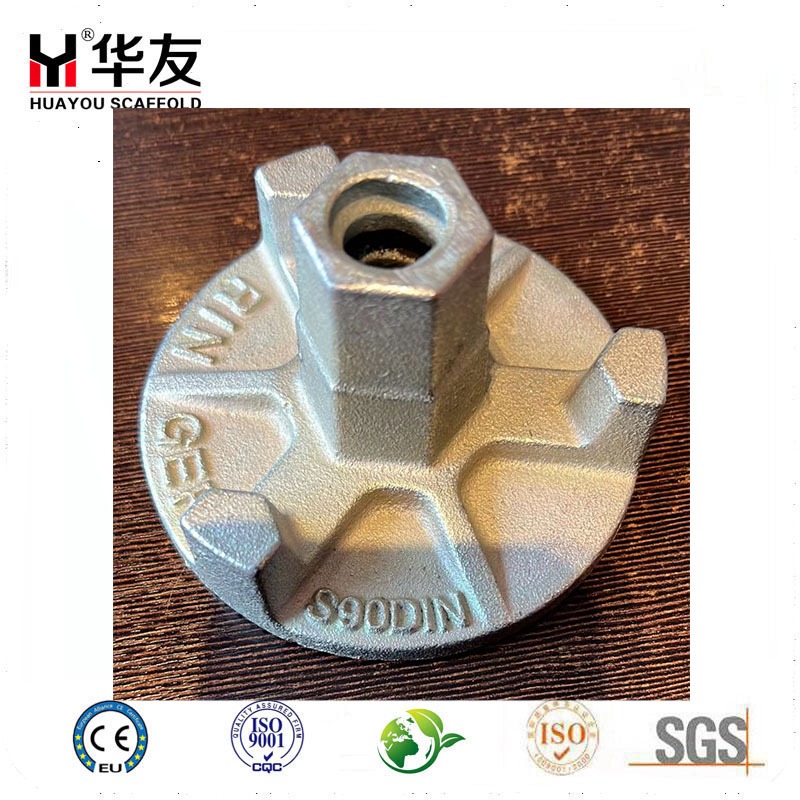

• Rotating nuts with round plates: Can flexibly adjust the angle, suitable for irregular formwork

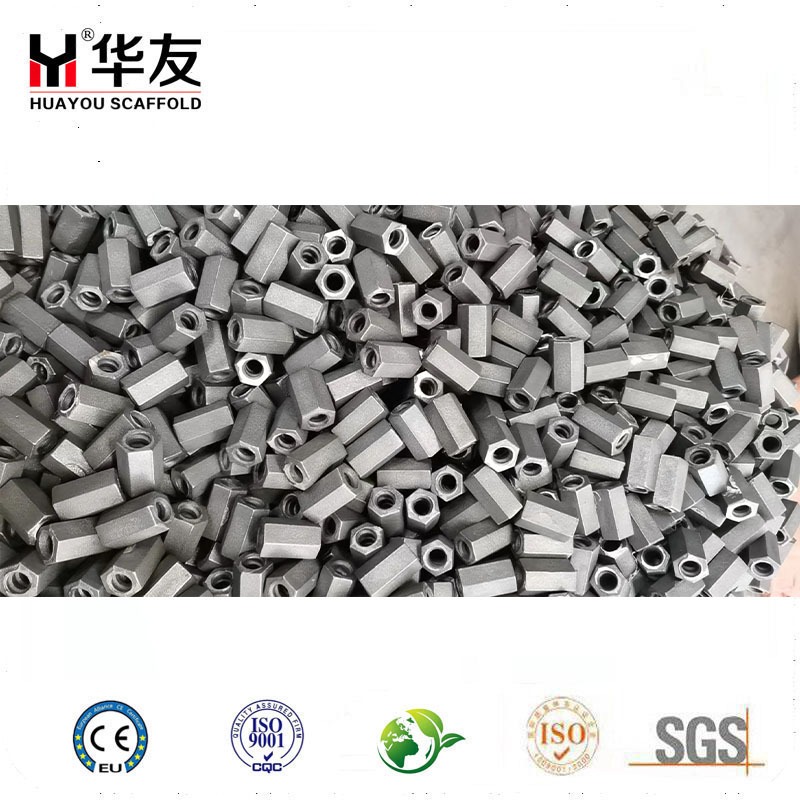

• Hexagonal nuts: Suitable for tool fastening, providing greater locking torque
• Sealing pieces: Specifically used for areas with waterproofing requirements such as basements and pools
• Washers: Distract pressure and protect the surface of the formwork
Why is the Formwork Tie Rod so crucial for safe pouring?
1. Resist lateral pressure to prevent cracking
The lateral pressure generated during concrete pouring is extremely high, especially when the pouring speed is fast or the wall height is large. The Formwork Tie Rod, as the sole load-bearing component connecting the two sides of the formwork, must have sufficient tensile strength. Our tie rods are made of high-quality steel and can reliably withstand the liquid pressure of the concrete, ensuring the overall stability of the formwork system.
2. Ensure uniform wall thickness
Another important function of Tie Bar Formwork is to control the thickness of the wall. By using precise tension rods and proper positioning, it ensures that the formwork on both sides remains parallel and maintains a constant spacing, thereby guaranteeing the accurate size and smooth surface of the formed wall.
3. Enhance construction efficiency
By using standardized Formwork Tie Rods and matching nuts, workers can quickly complete the installation and removal of the formwork. Notably, features such as the wing-shaped nuts allow for manual tightening without the need for tools, significantly reducing the time spent on formwork operations and ensuring the overall project schedule.
4. Adapt to complex engineering requirements
From ordinary building walls to basement areas and water treatment facilities with waterproofing requirements, by selecting different types of nuts (such as water-stop components), the Formwork Tie Rod system can flexibly handle various special situations and ensure the quality of the project.
Conclusion
Safety stems from details, and quality begins with components. Although the Formwork Tie Rod is small, it is the first line of defense for ensuring the safety of concrete pouring. Tianjin Huayou Scaffolding Co., Ltd. is located in Tianjin, a city rich in iron and steel resources. Relying on high-quality raw material supply and a complete quality control system, we provide customers with a full range of templates with reliable performance and a matching nut system. Our products have been exported to many regions such as Southeast Asia, the Middle East, Europe, and America, and we have won the trust of global customers with the philosophy of "Quality First, Customer Oriented, Service Oriented".
Choosing high-quality Formwork Tie Rods is to provide you with both safety and quality guarantees for your concrete projects. Please feel free to contact us to obtain more product information and technical consultation.
