The Octagonlock Scaffolding System gets its rigidity from more than vertical standards and horizontal ledgers. Each bay also needs a diagonal, otherwise the rectangle can rack sideways under wind, under stacked materials, and under the movement of workers. In the Octagonlock Scaffolding layout, the diagonal brace is the member that prevents that racking. Huayou builds the Octagonlock Scaffolding brace so that once the wedge pin is driven home, every rectangular bay turns into two triangles. A Scaffolding Octagonlock System braced this way resists sway far better than an unbraced frame, and that is why experienced site teams treat the brace as a compulsory item, not an optional extra, in any Octagonlock build.
Three Parts, One Locking Joint

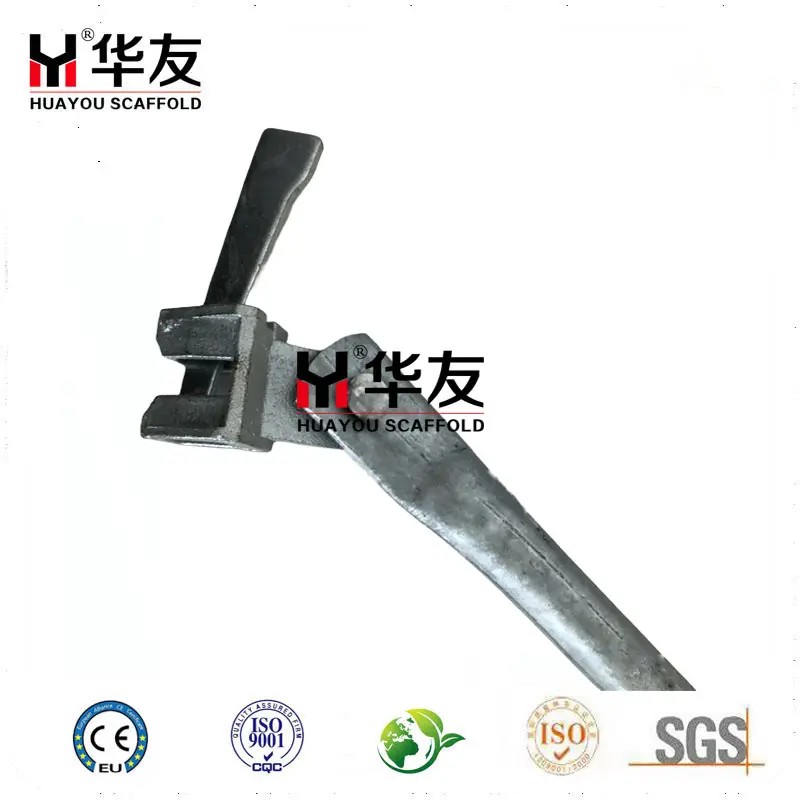

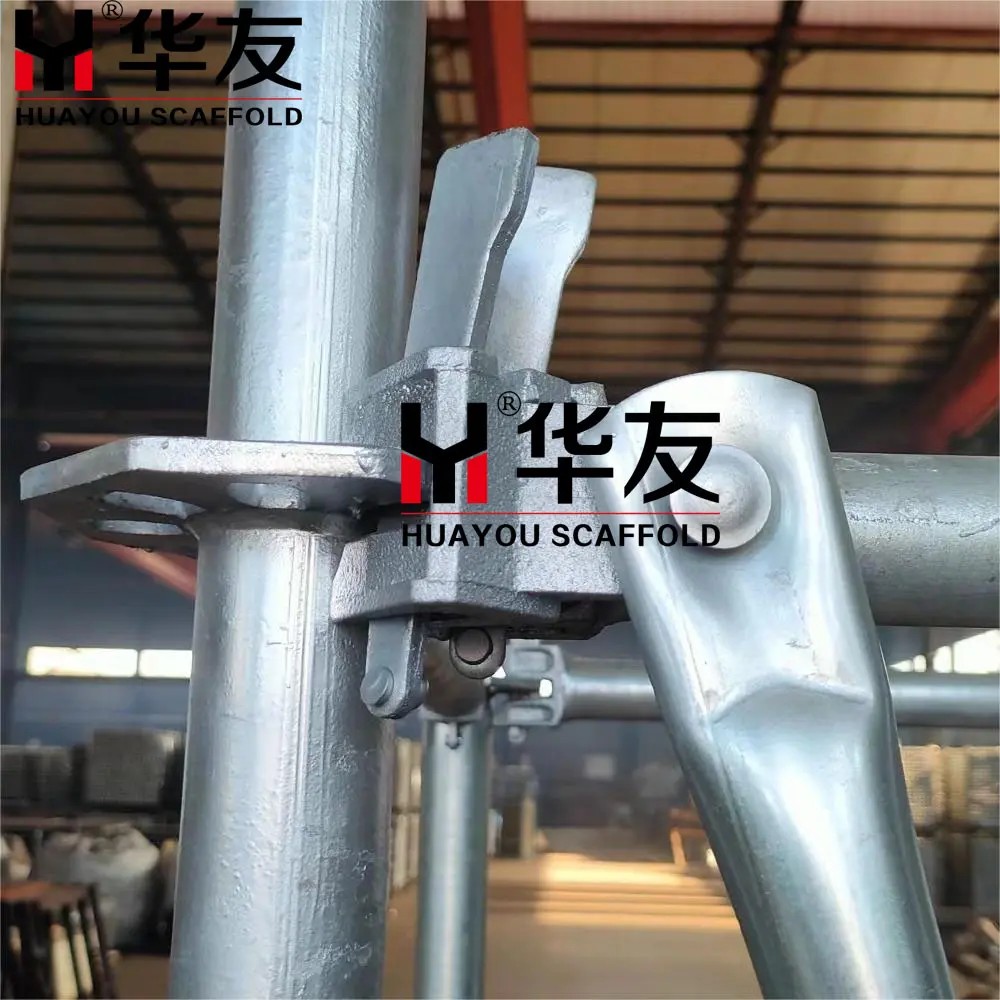

The brace itself is a simple assembly of three parts: a steel pipe, a diagonal brace head, and a wedge pin. In an Octagonlock build, the Octagonlock Scaffolding Standard is the main vertical member, the ledger locks in at every level, and the diagonal brace head is pinned across so that the wedge pin holds the whole joint firm. The result is a triangle in plan and in practice: the brace keeps the standard and the ledger together, exactly as the product design describes. Huayou’s Octagonlock line uses this same three-part logic from the smallest tower to the widest access bay, so every Scaffolding Octagonlock connection stays interchangeable across projects. The same wedge pin logic runs through every Octagonlock joint Huayou ships.
Materials and Surface Treatment
Material and surface treatment decide how many years the brace keeps working. Huayou manufactures the brace from Q235 or Q195 steel pipe, and the standard surface finish is hot-dip galvanizing. A typical Octagonlock Scaffolding brace uses a 33.5 mm outer diameter pipe, a wall thickness of 2.1 mm or 2.3 mm, and a head weighing about 0.38 kg. This configuration lowers cost while the Octagonlock Scaffolding System keeps its heavy-duty support, and the galvanized layer lets the parts face rain, humidity and salt air without rusting through. For a complete Scaffolding Octagonlock package, buyers usually order the brace together with standards and ledgers so that the coating and the joint hardware match. When an Octagonlock project calls for something non-standard, Huayou can produce according to customer requirements and drawing details, so the Octagonlock Scaffolding range is effectively customizable.
Sizes That Follow the Bay Plan
The brace sizes match the bay dimensions of the Octagonlock Scaffolding System layout. Huayou supplies diagonal braces in 600×1500 mm and 600×2000 mm, 900×1500 mm and 900×2000 mm, and 1200×1500 mm and 1200×2000 mm versions, all built on the same 33.5 mm pipe. Every size keeps that pipe and head, so Octagonlock Scaffolding braces stay interchangeable across bay widths. Since the fixing points repeat at every level, the braces line up across the structure level by level, which keeps erection fast and predictable. That repeatability is what turns the product into a true Modular Scaffolding System: standard parts, repeated geometry, and no on-site cutting or drilling. Later, the Octagonlock Scaffolding braces from one order can be topped up with matching parts when a project expands.
Where This Bracing Pays Off on Site
Stability matters most where the work itself is heavy and the site is exposed. Huayou’s Octagonlock Scaffolding System is a common choice for bridges, railway maintenance, oil and gas plants and storage tanks, because crews in those sectors build access one level at a time and need every platform to stay square while equipment moves above them. Huayou’s Octagonlock Scaffolding design keeps the platform square through that whole sequence. Some customers still replace the brace with pipe and coupler, and Huayou can quote either way, but the Octagonlock route saves labor because a single wedge pin locks the joint instead of multiple couplers.
Packaging, MOQ and Supply
Export logistics are part of the product. Huayou packs the braces on steel pallets or with steel strapped with wood bars, so pipes reach the port without bending. The minimum order is 100 pieces, and the dedicated production capacity for this line reaches 10,000 tons per year, which keeps lead times short even during peak season. Since the brace is a standard Octagonlock Scaffolding item inside Huayou’s production procedure system, repeat orders follow the same route and the same quality gates. That matters to Octagonlock buyers who restock the same tower year after year.
Who Makes It: Huayou Behind the Product
Huayou factory sits in a steel raw materials zone close to Tianjin Port, the largest north port in China, which shortens steel supply and simplifies sea freight. Annual capacity across the whole plant reaches 50,000 tons, covering ringlock system, walking platform, steel board, steel prop, tube and coupler, cuplock system, kwikstage system, frame system and formwork. The factory operates under ISO 9001 quality management and holds EN 74, STK500, EN 10219, EN 39, BS 1139, EN 12810, EN 12811, EN 1004 and SS 280 certificates across its pipe, coupler, system and steel plank ranges. Workers are trained every month, a QC department checks output before shipment, and buyers can combine the Octagonlock Scaffolding order with steel board, props and jacks in one-stop purchasing, or use OEM and ODM metal work services.
What to Check Before You Order
Before placing an order, buyers should ask for the test report and the dimension sheet, and check the galvanizing thickness, because that single figure decides how many rental cycles the brace will survive. It is also worth confirming the brace sizes match the bay plan, the packaging method, and the delivery window, and that the brace is compatible with the Octagonlock Scaffolding Standard and ledger already in stock. A test report and a dimension sheet protect any Octagonlock Scaffolding System purchase. None of these questions is difficult to answer for an Octagonlock supplier that makes the parts itself.
The Octagonlock Scaffolding Diagonal Brace is a small part with an outsized job: it is the triangle that keeps every bay of the Octagonlock Scaffolding System from racking, and Huayou builds it from galvanized steel with a wedge pin that locks in seconds. With Q235 and Q195 pipe options, sizes from 600 mm to 1200 mm wide, and a 10,000-ton annual capacity on this Octagonlock line, and a factory behind it that has exported scaffolding to nearly 50 countries since 2013, the brace is easy to standardize into any Modular Scaffolding System order. For contractors who value stability, speed and honest documentation, Huayou’s Octagonlock Scaffolding diagonal brace is the component to specify first.
