Formwork Accessories Flat Tie and Pin

Short Description:

Flat tie and wedge pin are very famous to use for Euro steel formwork that include steel form and plywood. In fact, just like tie rod function, but the wedge pin is to connect steel formworks, and small and big hook with steel pipe to complete one whole wall formwork.

Flat tie size will have many different length, 150L, 200L, 250L, 300L, 350L, 400L, 500L, 600L ect. thickness will be from 1.7.mm to 2.2mm for normal usage.

Raw Materials: Q195L

Surface Treatment: self-finished

MOQ: 1000 pcs

Send email to us

Product Detail

Product Tags

Company Introduction

Tianjin Huayou Scaffolding Co., Ltd is located in Tianjin City, which have a whole steel raw materials supply chain.

As we all know, the raw materials are very important to manufacture companies. that means, cost will be more competitive and quality will be easy to be controlled. We have more choices to find better raw materials to meet all our customers demand.

Regarding to formwork accessories, the flat tie is mainly to be used for steel formwork and fixed formwork with wall together. With more than 10 years experience, all most type flat tie, only if you have drawings, we can produce for you.

Currently, our products are export to many countries that from South East Asia region, Middle East Market and Europe, America, etc.

Our principle: "Quality First, Customer Foremost and Service Ultmost." We devote ourselves to meet your

requirements and promote our mutually beneficial cooperation.

Formwork Accessories

Name	Pic.	Size mm	Unit weight kg	Surface Treatment

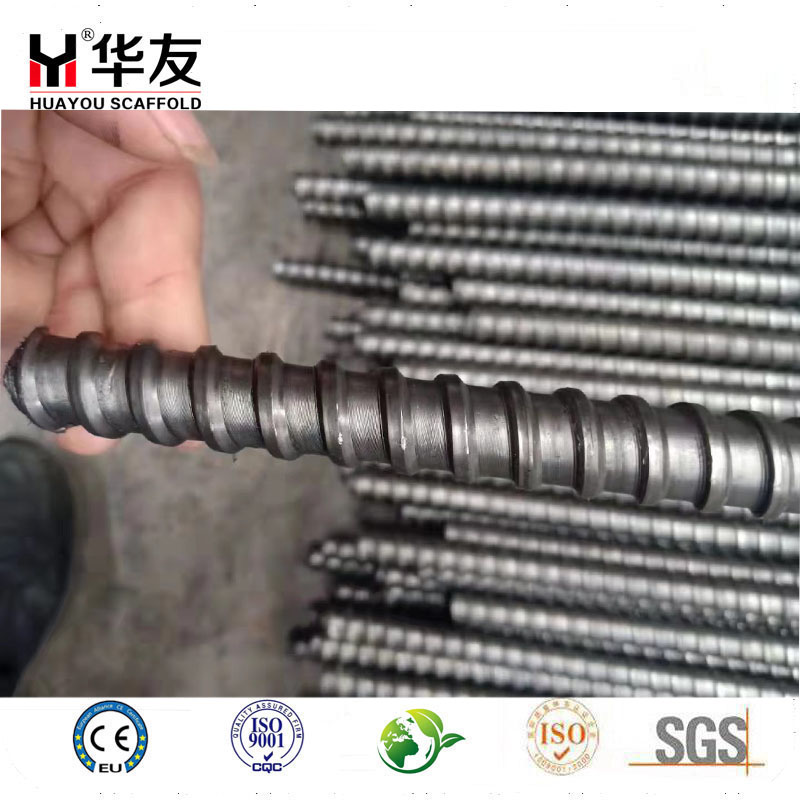

Tie Rod		15/17mm	1.5kg/m	Black/Galv.
Wing nut		15/17mm	0.4	Electro-Galv.

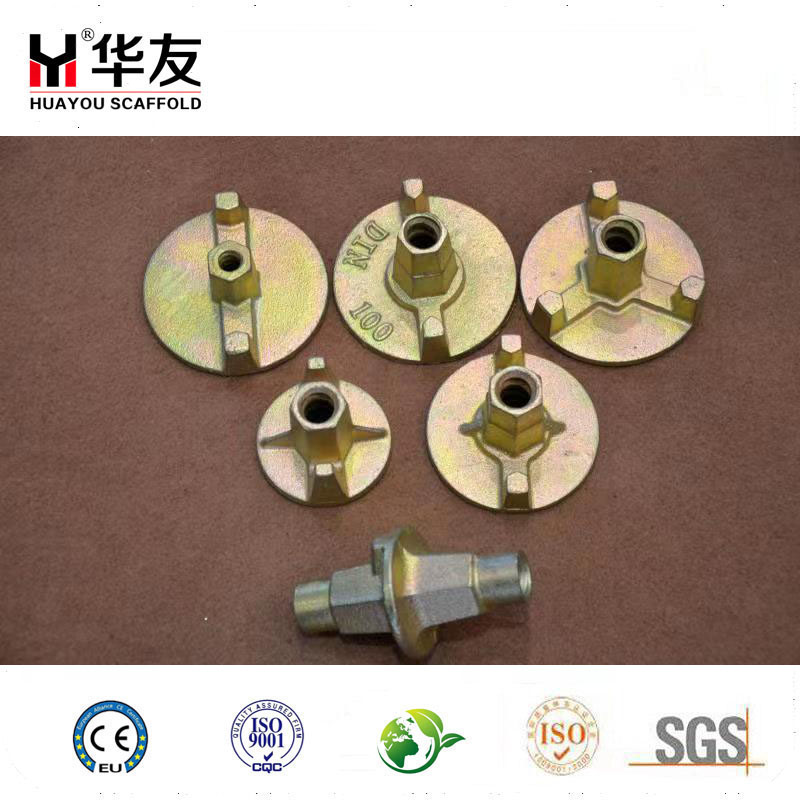

Round nut		15/17mm	0.45	Electro-Galv.
Round nut		D16	0.5	Electro-Galv.
Hex nut		15/17mm	0.19	Black
Tie nut- Swivel Combination Plate nut		15/17mm		Electro-Galv.
Washer		100x100mm		Electro-Galv.
Formwork clamp-Wedge Lock Clamp			2.85	Electro-Galv.
Formwork clamp-Universal Lock Clamp		120mm	4.3	Electro-Galv.
Formwork Spring clamp		105x69mm	0.31	Electro-Galv./Painted
Flat Tie		18.5mmx150L		Self-finished
Flat Tie		18.5mmx200L		Self-finished
Flat Tie		18.5mmx300L		Self-finished
Flat Tie		18.5mmx600L		Self-finished
Wedge Pin		79mm	0.28	Black
Hook Small/Big				Painted silver
