Product Introduction
The Octagonlock System is a modular disclock scaffold built around an eight-sided ring welded onto each standard. Where a round rosette only gives point contact, the octagonal ring lets a ledger’s U-groove sit on a flat face, so the wedge pin locks two full surfaces together. That small geometric change makes a real difference in how the Octagonlock Scaffolding handles heavy load. The standards are made from Q355 high-strength steel pipe at 48.3mm outer diameter, with octagonal rings welded at 500mm intervals. All ledgers, diagonal braces, base jacks and U-head jacks are produced in-house, which keeps the whole Octagonlock System consistent and dependable.
Product Advantages
[+]
Dual-contact connection – The flat octagonal face gives two full bearing surfaces, so joints resist rotation better than point-contact ringlock.
[+]
Heavy duty support – Q355 steel standards with a solid octagonal ring carry big vertical loads across multiple lifts.
[+]
Tighter joints – Wedge pin plus U-groove holds the Octagonlock Scaffolding Ledger firm, with little play even under dynamic load.
[+]
Fast assembly – Members lock onto the flat face directly, so crews build and strike the scaffold quickly.
[+]
In-house quality – Every Octagonlock System component is made by us, so tolerances stay consistent from start to finish.
[+]
Flexible lift heights – Rings at 500mm spacing give you working lifts from 0.5m to 3.0m to match the job.
[+]
Durable finish – Components are galvanized to survive repeated use, dismantling and storage.

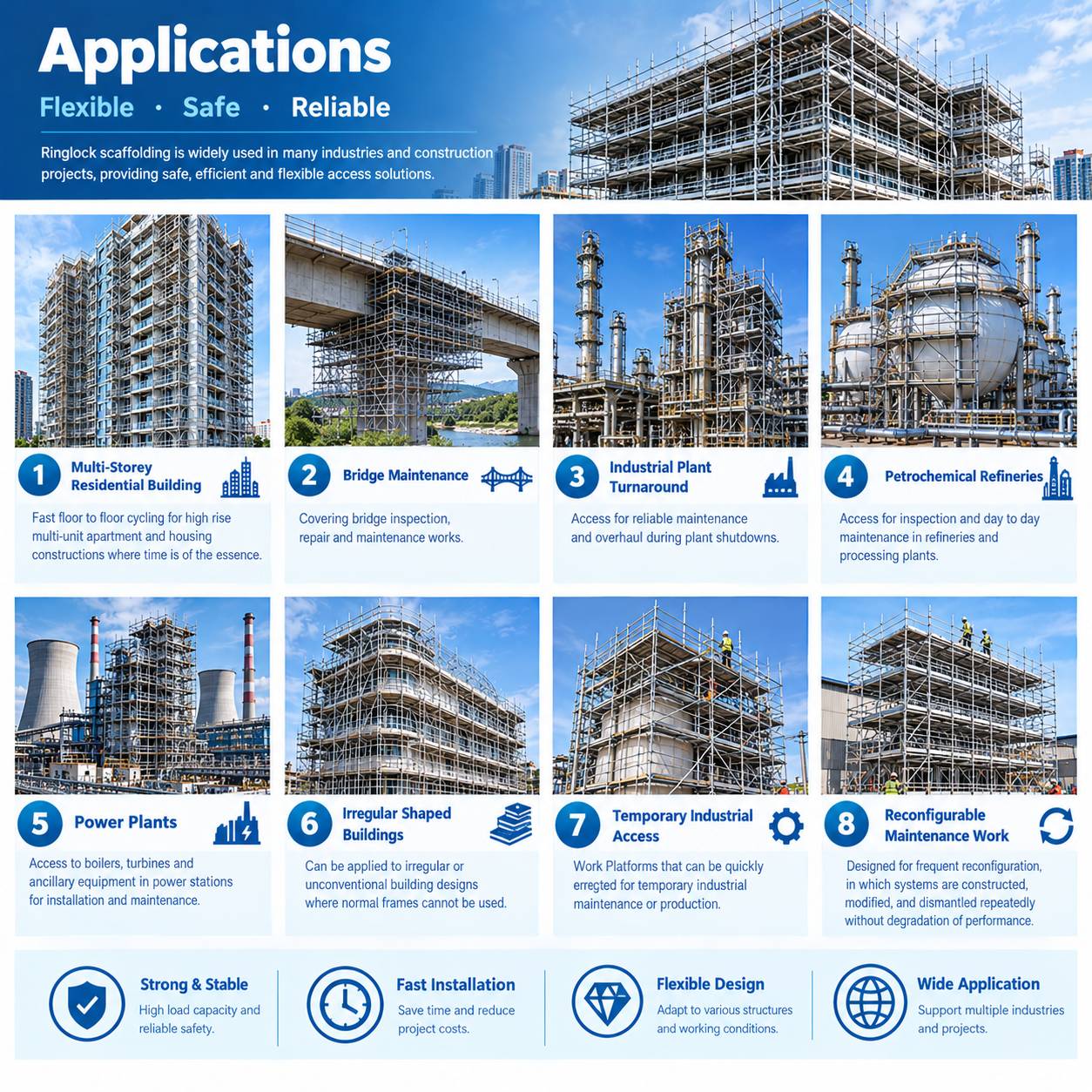

Applications
- Multi-Storey Residential Building – Fast floor to floor cycling for high rise multi-unit apartment.
- Bridge Maintenance – Covering bridge inspection, repair and maintenance works.
- Industrial Plant Turnaround – Access for reliable maintenance during plant shutdowns.
- Petrochemical Refineries – Access for inspection and day to day maintenance.
- Power Plants – Access to boilers, turbines and ancillary equipment.
- Irregular Shaped Buildings – Applied to unconventional building designs.
- Temporary Industrial Access – Work Platforms erected for temporary maintenance.
- Reconfigurable Maintenance Work – Designed for frequent reconfiguration without degradation.
Transportation & Packaging
● Galvanized Before Dispatch – Hot-dip galvanized for corrosion protection.
● Bundled by Component – Standards, ledgers packed in separate bundles.
● Waterproof Wrapping – Covered with waterproof paper against moisture.
● Steel Corner Guards – Fitted with protectors to keep ends safe.
● Fixed on Pallets or Racks – Secured to prevent shifting during transport.
● Careful Container Loading – Loaded carefully from Tianjin Port.
● Test Certificates Included – Mill and test certificates supplied for customs.
● Custom Packing – Available to meet specific destination requirements.
FAQ
Q1: What makes the Octagonlock System stronger than ringlock?
A1: The octagonal ring provides a dual-contact flat bearing surface, which resists rotation better than the point contact of a round rosette.
Q2: What steel is used for the standards?
A2: Q355 high-strength steel pipe, 48.3mm outer diameter, with octagonal rings welded at 500mm intervals.
Q3: What working lift heights are available?
A3: From 0.5m to 3.0m, set by the 500mm ring spacing.
Q4: Do you manufacture all components in-house?
A4: Yes. Standards, ledgers, diagonal braces, base jacks and U-head jacks are all produced by Tianjin Huayou.
Q5: Do you export globally?
A5: Yes, our scaffolding has reached nearly 50 countries, with container loading from Tianjin Port.
