In the field of construction, the selection of the scaffolding system directly affects the safety, efficiency and cost of the project. Although the traditional type of fastener-based scaffolding is widely used, with the increasing demands for modularization and load-bearing capacity in modern buildings, a more advanced solution - Rosette Scaffolding is gradually becoming the new industry standard. This article will deeply explore why Rosette Scaffolding can outperform the traditional fastener system in terms of performance.
What is Rosette Scaffolding?

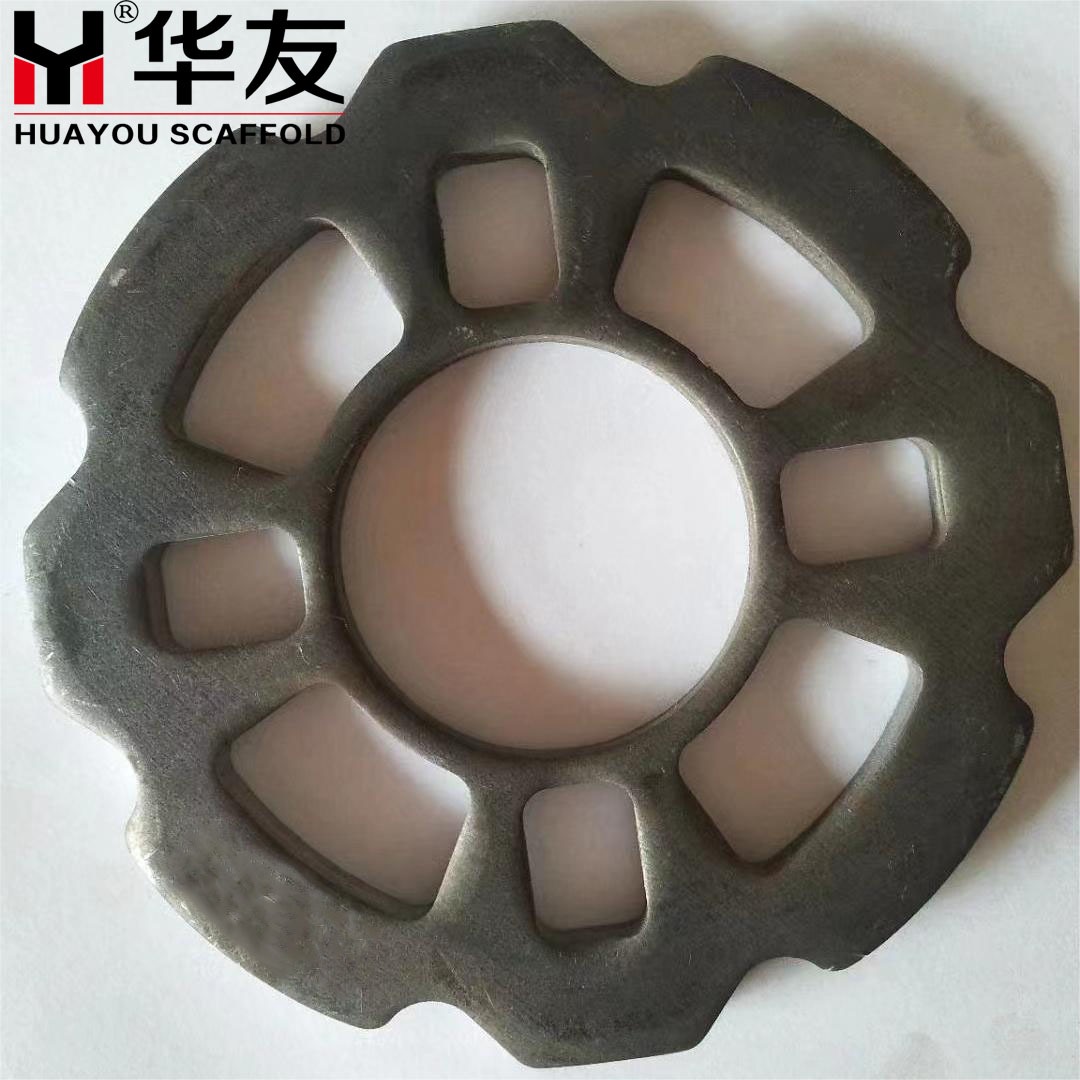

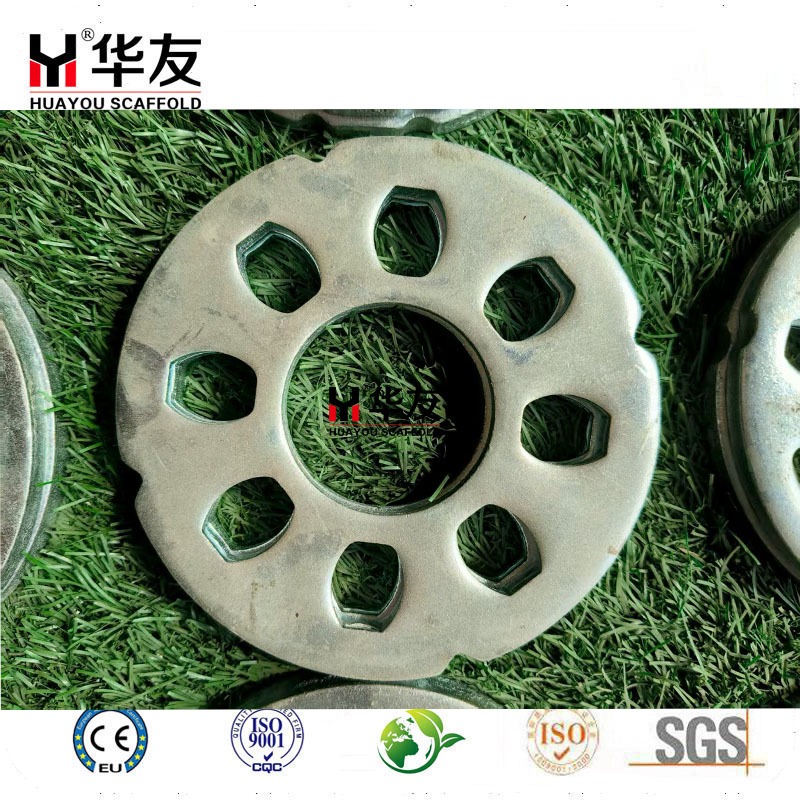

The core of Rosette Scaffolding lies in its unique Scaffolding Rosette component - a key load-bearing part with a circular appearance, simply referred to as "ring". This disc is formed by high-quality steel stamping and features a precisely engineered disc with outstanding load-bearing capacity and structural integrity. The standard Scaffolding Rosette offers three options for outer diameter: 120mm, 122mm, and 124mm. The thickness can be chosen between 8mm and 10mm, enabling it to handle various demanding construction load requirements with ease.
On each Scaffolding Rosette, precisely eight punching holes are evenly distributed: four smaller holes are used to connect the horizontal rods (ledger) to ensure the stability of the lateral structure; the four larger holes are used to install the diagonal braces, providing the lateral resistance capability for the entire scaffolding system. These discs are welded to the upright rods (standard) at precise intervals of 500mm to ensure the uniform distribution of loads throughout the structure.
Why can Rosette Scaffolding outperform traditional fastening systems?
Compared with traditional bolted scaffolding, Rosette Scaffolding has the following key advantages:
1. Higher connection reliability
The traditional fastening system relies on the frictional force of bolts for fixation. Over time, it is prone to loosening due to vibration and load. However, Rosette Scaffolding adopts a pin-type connection. The wedge-shaped plugs of the horizontal rods and diagonal braces fit tightly into the holes of the Scaffolding Rosette, forming a mechanical self-locking structure. This connection method is not only more secure but also has a much higher anti-slip performance than the friction-type fasteners.
2. Faster setup efficiency
The traditional fastening system requires tightening each bolt one by one, which takes a considerable amount of time for each connection point. The pin connection of Rosette Scaffolding enables quick installation and disassembly. Workers only need to gently tap the wedge-shaped plug to complete the fixation. According to calculations, the use of Rosette Scaffolding can increase the setup efficiency by more than 30%, significantly shortening the construction period.
3. Better load distribution
The scaffolding rosettes are standardizedly welded at 500mm intervals onto the upright poles, ensuring precise and uniform positioning at each connection point. The symmetrical design of the eight holes enables multiple-directional members to converge at the same node, with a clear load transmission path, avoiding the additional bending moments caused by eccentric loading in traditional fastening systems.
4. Higher system flexibility
Whether it is the construction of building facades, bridge projects, or the setup of large-scale event stages, Rosette Scaffolding can easily achieve the layout of various complex geometric shapes through the perforated design of Scaffolding Rosette. The four large holes allow diagonal supports to be installed at different angles, meeting the support requirements for various irregular structures.
From safety to economy, Rosette Scaffolding is redefining the performance standards of modern scaffolding systems with its innovative Scaffolding Rosette design. As a professional ODM manufacturer, we are committed to providing high-quality disc-type scaffolding solutions to global customers. No matter where you are - in the United States, Europe, or the United Kingdom - our products have gained a good reputation for their excellent quality and competitive prices. Please contact us to establish a long-term mutually beneficial partnership.
Post time: Mar-19-2026
