Durable Ringlock Scaffoding For Safe Construction Projects

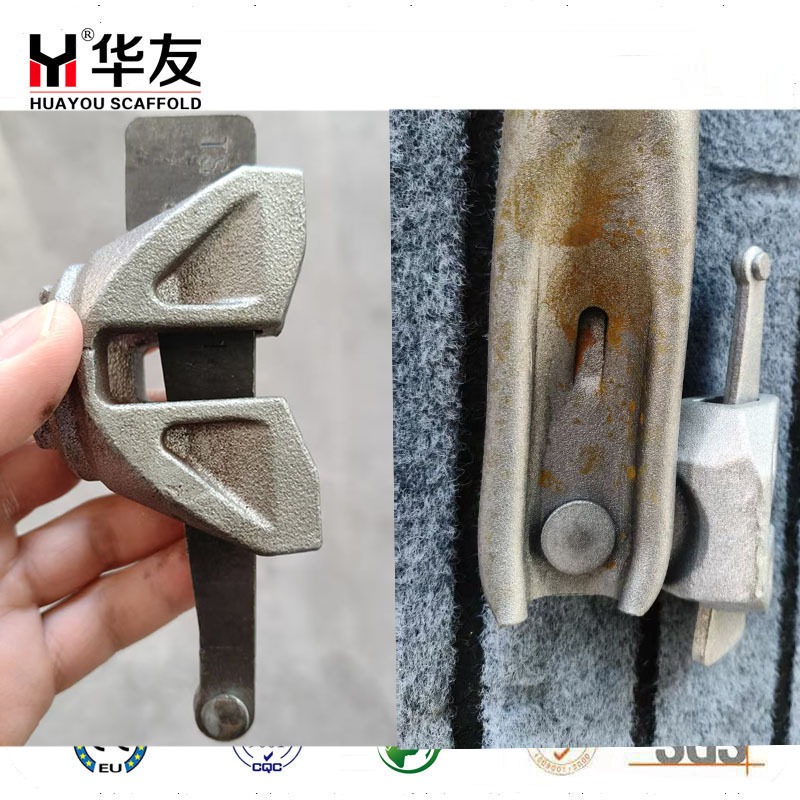

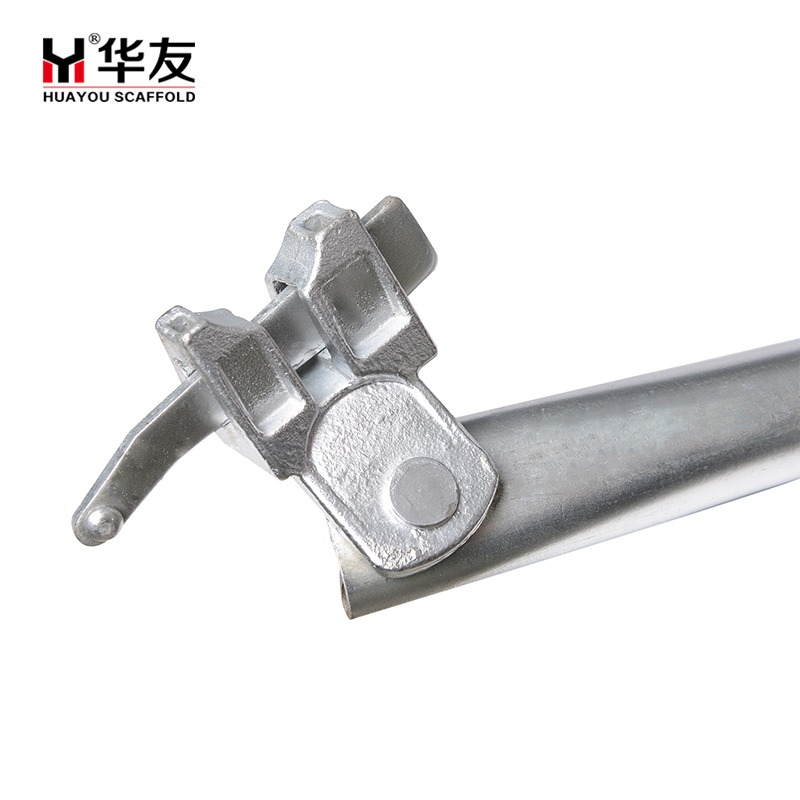

The diagonal braces of circular scaffolding are usually made of scaffolding pipes with outer diameters of 48.3mm, 42mm or 33.5mm, and are riveted and fixed to the ends of the diagonal braces. It forms a stable triangular support structure by connecting the plum blossom plates of different heights on the two vertical poles, effectively generating diagonal tensile stress and enhancing the firmness of the entire system.
The dimensions of the diagonal braces are precisely designed based on the span of the crossbars and the spacing of the vertical bars. The length calculation follows the principle of trigonometric functions to ensure precise structural matching.
Our circular scaffolding system has been certified by EN12810, EN12811 and BS1139 standards, and our products are exported to over 35 countries and regions around the world, including Southeast Asia, Europe, the Middle East, South America and Australia.
Size as following
|
Item |
Length (m) |
Length (m) H (Vertical) |
OD(mm) |
THK （mm） |
Customized |
|
Ringlock Diagonal Brace |
L0.9m/1.57m/2.07m |
H1.5/2.0m |
48.3/42.2/33.5mm |
2.0/2.5/3.0/3.2mm |
YES |
|
L1.2m /1.57m/2.07m |
H1.5/2.0m |
48.3/42.2/33.5mm |
2.0/2.5/3.0/3.2mm |
YES |
|
|
L1.8m /1.57m/2.07m |
H1.5/2.0m |
48.3/42.2/33.5mm |
2.0/2.5/3.0/3.2mm |
YES |
|
|
L1.8m /1.57m/2.07m |
H1.5/2.0m |
48.3/42.2/33.5mm |
2.0/2.5/3.0/3.2mm |
YES |
|
|
L2.1m /1.57m/2.07m |
H1.5/2.0m |
48.3/42.2/33.5mm |
2.0/2.5/3.0/3.2mm |
YES |
|
|
L2.4m /1.57m/2.07m |
H1.5/2.0m |
48.3/42.2/33.5mm |
2.0/2.5/3.0/3.2mm |
YES |
Advantages
1. Stable structure and scientific force application: By connecting two vertical poles with discs of different heights, a stable triangular structure is formed, effectively generating diagonal tensile force and significantly enhancing the overall rigidity and safety of the scaffolding.
2. Flexible specifications and rigorous design: The dimensions of the diagonal braces are precisely calculated based on the spans of the crossbars and vertical bars, just like solving trigonometric functions, ensuring that each diagonal brace can perfectly match the overall installation plan.
3. Quality Certification, Global Trust: Our products strictly adhere to international standards and have obtained authoritative certifications such as EN12810, EN12811, and BS1139. They have been exported to over 35 countries worldwide, and their quality has been verified by the market for a long time.
Huayou brand’s ringlock scaffolding
The production process of Huayou circular scaffolding is strictly controlled by the quality inspection department, with full-process quality supervision carried out from raw material inspection to finished product delivery. With ten years of dedicated experience in production and export, we are committed to serving global customers with outstanding product quality and high cost performance advantages, and can flexibly meet various customized demands.
With the increasing popularity of circular scaffolding in the construction field, Huayou continuously optimizes product performance and actively develops new supporting components, aiming to provide customers with a more comprehensive one-stop procurement solution.
As a safe and efficient support system, Huayou circular scaffolding has a wide range of applications and has been successfully used in multiple professional fields such as bridge construction, exterior wall construction of buildings, tunnel engineering, stage setup, lighting towers, shipbuilding, oil and gas engineering, and safety climbing ladders.
