Formwork Accessories Flat Tie and Wedge Pin

Short Description:

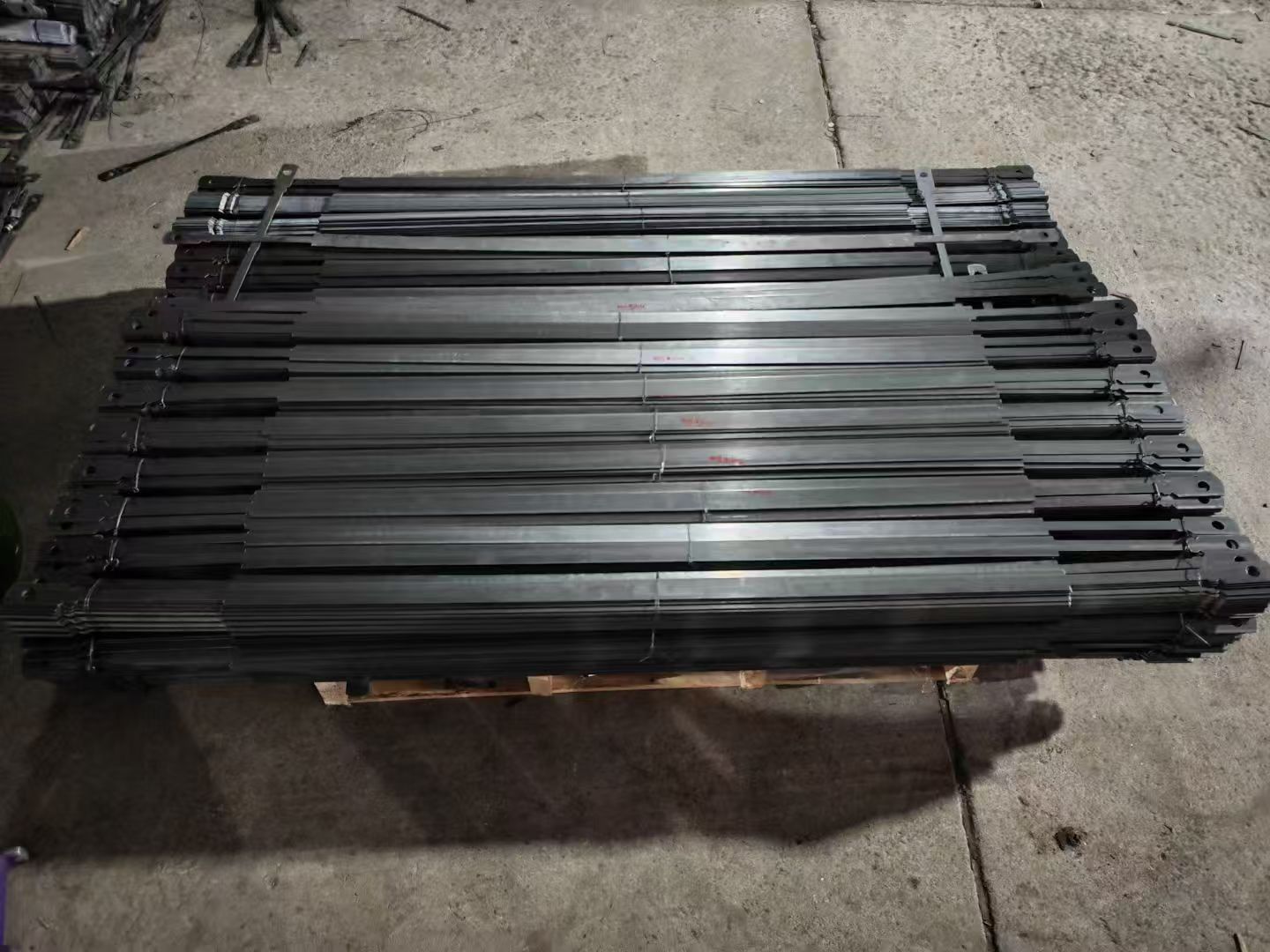

Flat tie and wedge pin are very famous to use for steel formwork that include steel form and plywood. In fact, just like tie rod function, but the wedge pin is to connect steel formworks, and small and big hook with steel pipe to complete one whole wall formwork.

Flat tie size will have many different length, 150L, 200L, 250L, 300L, 350L, 400L, 500L, 600L ect. thickness will be from 1.7mm to 2.2mm for normal usage.

Raw Materials: Q195L

Surface Treatment: self-finished

MOQ: 1000 pcs

Send email to us

Product Detail

Product Tags

Company Introduction

Tianjin Huayou Scaffolding Co., Ltd is located in Tianjin City, which have a whole steel raw materials supply chain.

As we all know, the raw materials are very important to manufacturer companies. that means, cost will be more competitive and quality will be easy to be controlled. We have more choices to find better raw materials to meet all our customers demand.

Regarding to formwork accessories, the flat tie is mainly to be used for steel formwork and fixed formwork with wall together. With more than 15 years experience, all most type flat tie, only if you have drawings, we can produce for you.

Currently, our products are export to many countries that from South East Asia region, Middle East Market and Europe, America, etc.

Our principle: "Quality First, Customer Foremost and Service Ultmost." We devote ourselves to meet your

requirements and promote our mutually beneficial cooperation.

Details showing

Honestly, we supply so many kinds of flate tie base on different clients' requirements. Only need open new mold then can supply 100% same goods with high quality.

Until now,our goods already spread to African, the Middle east of Asia, South American etc.

Name	Pic.	Size	Unit weight g
Flat tie		120L	Base on Thickness, normal thickness is 1.2mm, 1.3mm, 1.4mm, 1.5mm, 1.6mm, 1.7mm, 1.8mm, 2.0mm, 2.2mm, 2.5mm, 3.0mm, 3.5mm
Flat tie		150L
Flat tie		180L
Flat tie		200L
Flat tie		250L
Flat tie		300L
Flat tie		350L
Flat tie		400L
Flat tie		500L
Flat tie		600L
Flat tie		700L
Flat tie		800L
Flat tie		900L
Flat tie		1000L

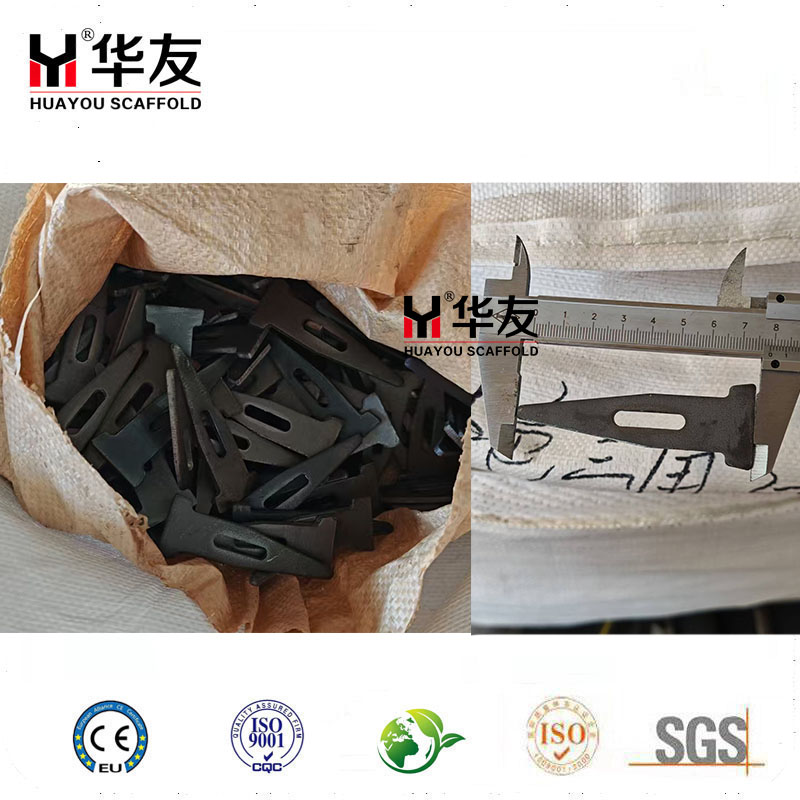

Wedge Pin		81L*3.5mm	34g
Wedge Pin		79L*3.5mm	28g
Wedge Pin		75L*3.5mm	26g

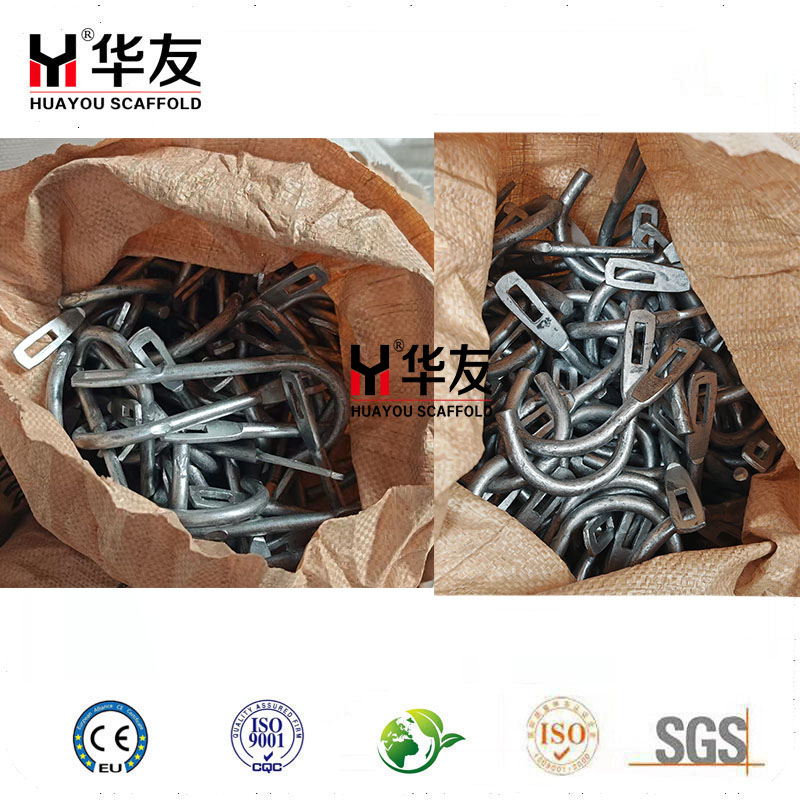

Large Hook			60g
Small Hook			81g
Casting Nut		Dia 12mm	105g
Casting Nut		Dia 16mm	190g
D Cone for Form Tie System		1/2 x 40mmL, inner 33mmL	65g
Tie Rod Washer Plate		100X100x4mm, 110x110x4mm,
Pin Bolt		12mmx500L	350g
Pin Bolt		12mmx600L	700g
Sepa. Bolt		1/2’’x120L	60g
Sepa. Bolt		1/2’’x150L	73g
Sepa. Bolt		1/2’’x180L	95g
Sepa. Bolt		1/2’’x200L	107g
Sepa. Bolt		1/2’’x300L	177g
Sepa. Bolt		1/2’’x400L	246g
Sepa. Tie		1/2’’x120L	102g
Sepa. Tie		1/2’’x150L	122g
Sepa. Tie		1/2’’x180L	145g
Sepa. Tie		1/2’’x200L	157g
Sepa. Tie		1/2’’x300L	228g
Sepa. Tie		1/2’’x400L	295g
Tie Bolt		1/2’’x500L	353g
Tie Bolt		1/2’’x1000L	704g

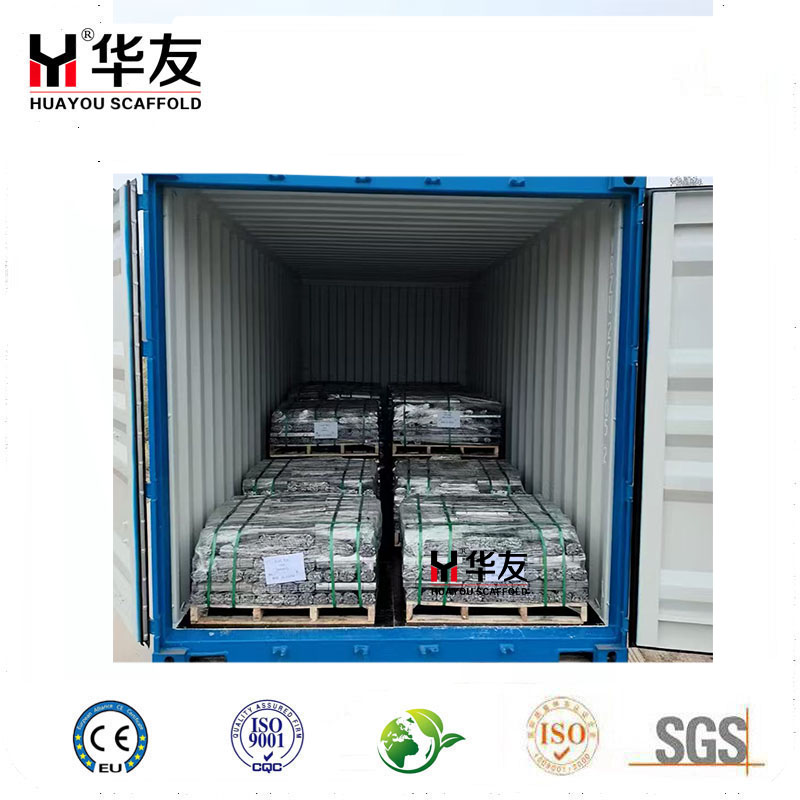

Packing and Loading

with more than 15 years scaffolding and formwork manufacturing and exporting, we already served more than 300 clients all over the world. all our goods are packed with suitable exporting, use steel pallet, wooden pallet , carton Box or some other packing.

Almost every two days, we will load one container with professional service.

Formwork Accessories

Name	Pic.	Size mm	Unit weight kg	Surface Treatment
Tie Rod		15/17mm	1.5kg/m	Black/Galv.
Wing nut		15/17mm	0.4	Electro-Galv.
Round nut		15/17mm	0.45	Electro-Galv.
Round nut		D16	0.5	Electro-Galv.
Hex nut		15/17mm	0.19	Black
Tie nut- Swivel Combination Plate nut		15/17mm		Electro-Galv.
Washer		100x100mm		Electro-Galv.
Formwork clamp-Wedge Lock Clamp			2.85	Electro-Galv.
Formwork clamp-Universal Lock Clamp		120mm	4.3	Electro-Galv.
Formwork Spring clamp		105x69mm	0.31	Electro-Galv./Painted
Flat Tie		18.5mmx150L		Self-finished
Flat Tie		18.5mmx200L		Self-finished
Flat Tie		18.5mmx300L		Self-finished
Flat Tie		18.5mmx600L		Self-finished
Wedge Pin		79mm	0.28	Black
Hook Small/Big				Painted silver
