Formwork accessories Pressed Panel Clamp

Formwork accessories Pressed Panel Clamp Featured Image
  • Formwork accessories Pressed Panel Clamp
  • Formwork accessories Pressed Panel Clamp
  • Formwork accessories Pressed Panel Clamp
  • Formwork accessories Pressed Panel Clamp

Short Description:

BFD Alignment Formwork Clamp for Peri Formwork Panel Maximo and Trio, also use for steel structure formwork. The clamp or clip mainly fixed between steel formworks together and more stronger like the teeth when pour concrete. Normally, the steel formwork only support wall concrete and column concrete. so the formwork clamp widely be used.

For formwork pressed clip, we also have two different quality.

One is the claw or teeth use Q355 steel, the other is the claw or teeth use Q235.




  • Process: Pressed

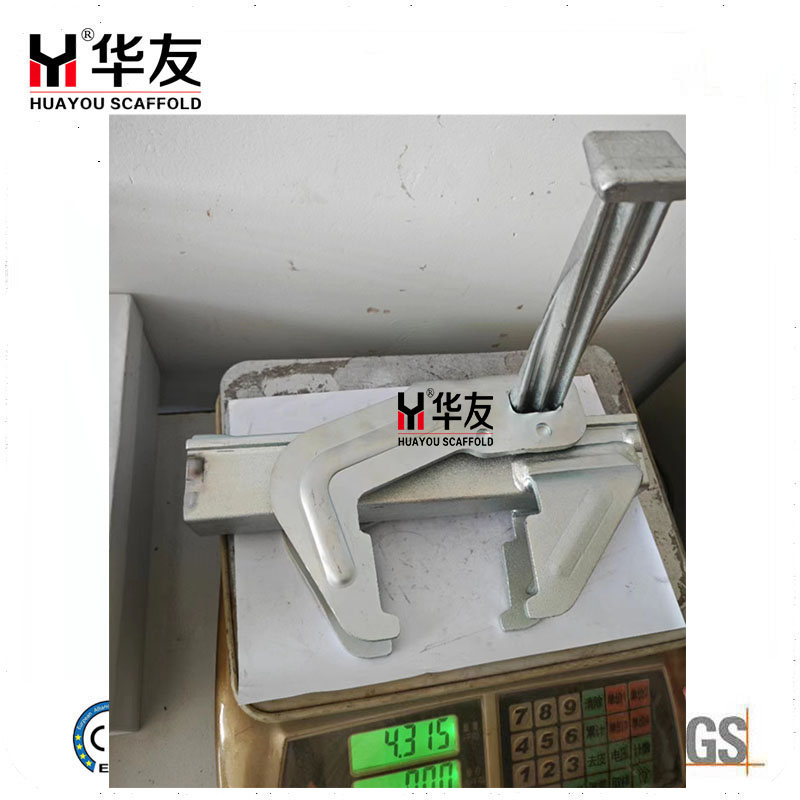

  • Unit Weight: 4.2kg
  • Raw Material: Q235/Q355

    • Product Detail

    Product Tags

    Company Introduction

    Tianjin Huayou Scaffolding Co., Ltd is located in Tianjin City, which can give us more support to choose different steel grade raw materials and also can control qualtiy.
    For Formwork system, formwork clamp or clip are very important parts to connect whole system for concrete building. Currently, We have two different types clamp, one is pressed, the other is casting one.
    Currently, our products are export to many countries that from South East Asia region, Middle East Market and Europe, America, etc.
    Our principle: "Quality First, Customer Foremost and Service Ultmost." We devote ourselves to meet your
    requirements and promote our mutually beneficial cooperation.

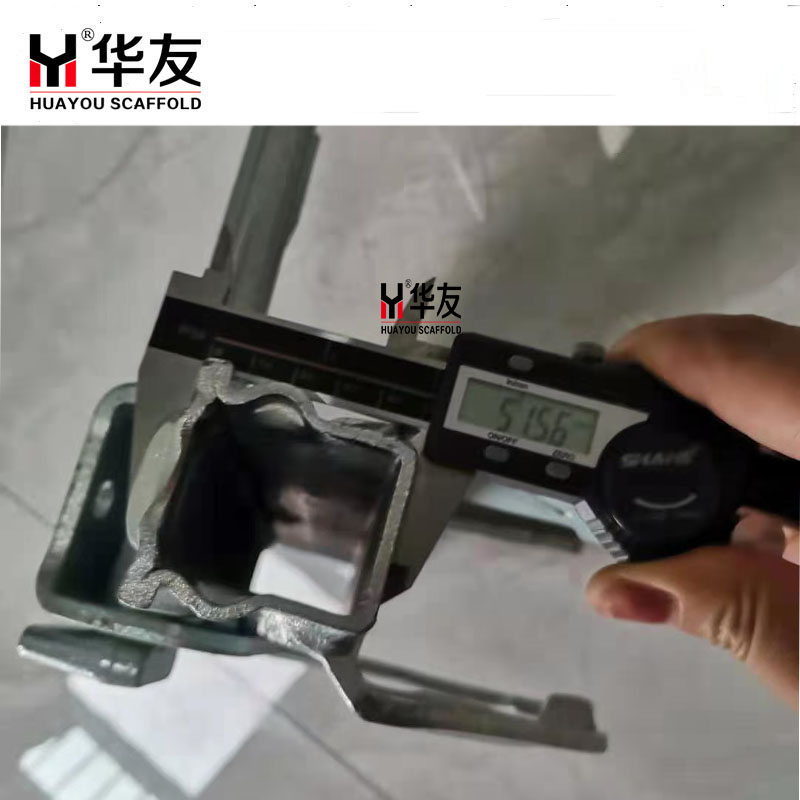

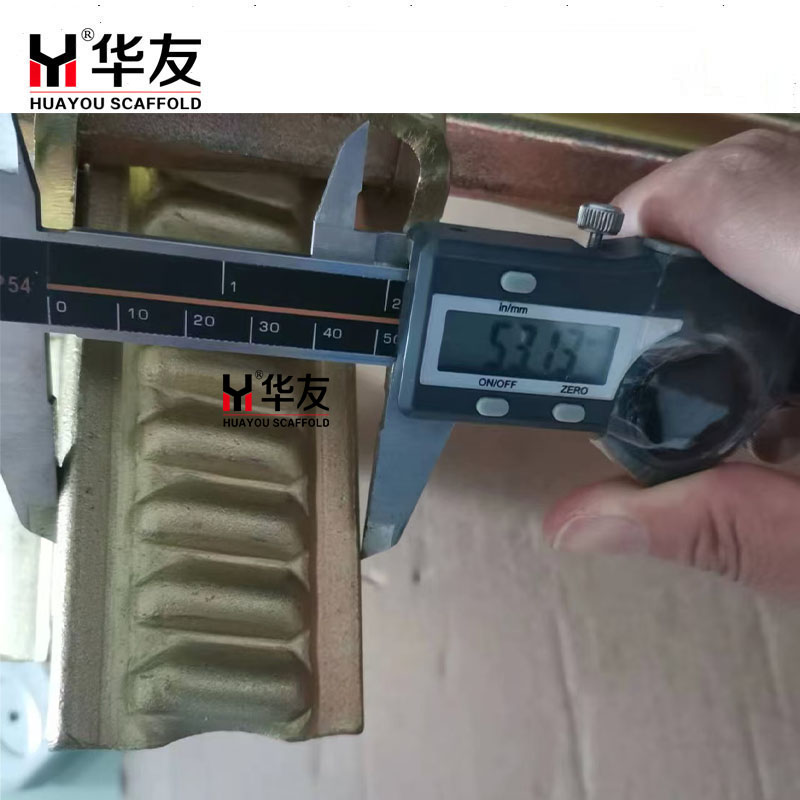

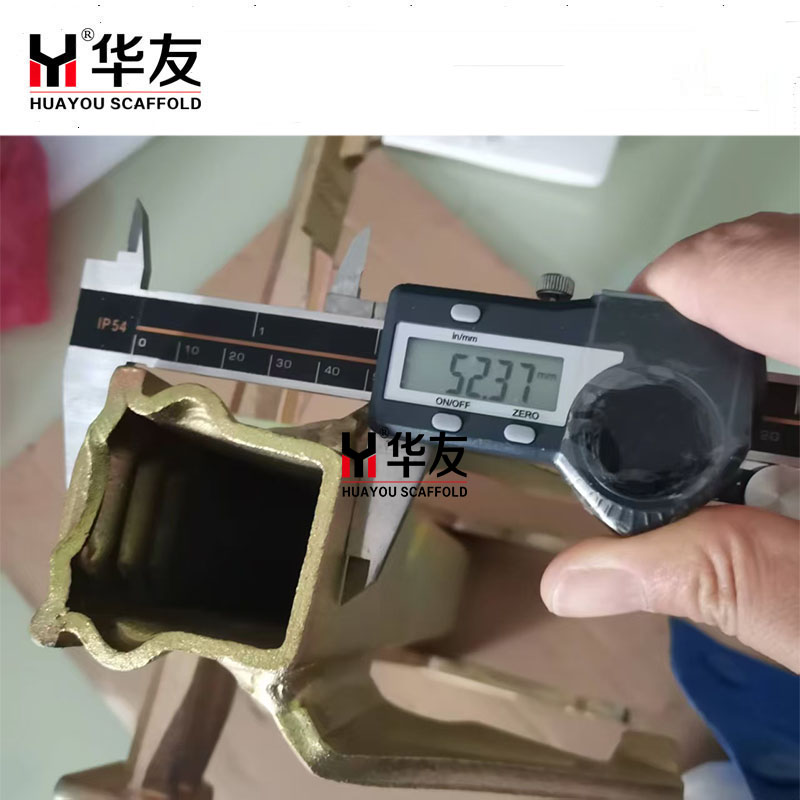

    Details Showing

    Honestly, every different markets have different requirements and the quality is uneven. and, most clients or final user have no idea to quality, only care and compare price.

    Actually, according to different requirements, we produce different level quality for choosing.

    For high quality clients, we suggest them to use Q355 claw clamp

    For lower required, we suggest them to use Q235 claw clamp, but after several times, the claw will be bent.

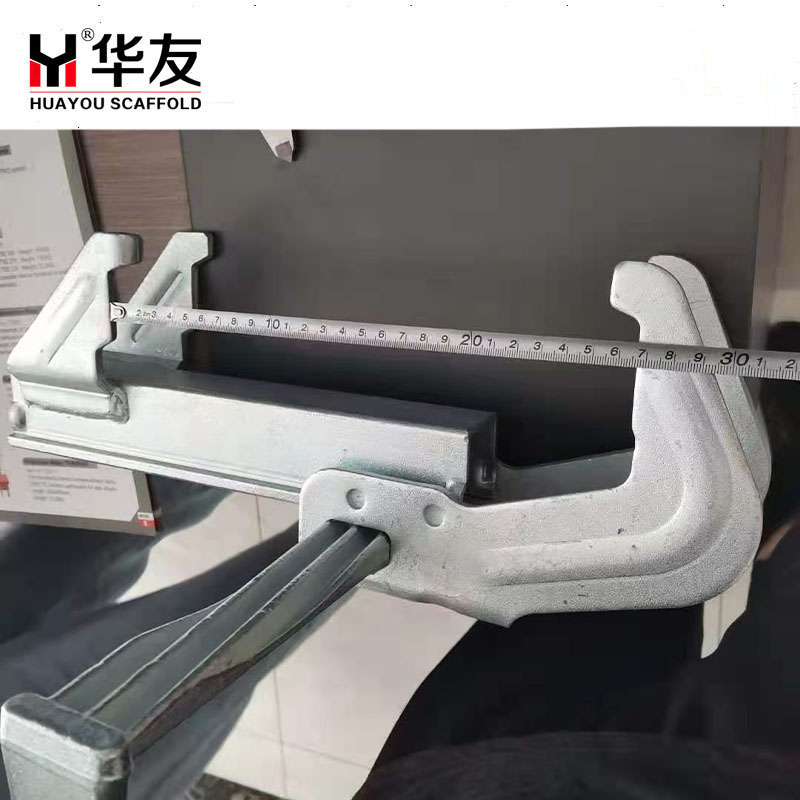

    Name Profile Structure Size Width mm unit weight kg Surface Treatment Raw materials
    Formwork clamp 120mm 250mm 4.3 Electro-Galv. Q235/Q355
    Formwork clamp 115mm 250mm 4.3 Electro-Galv. Q235/Q355

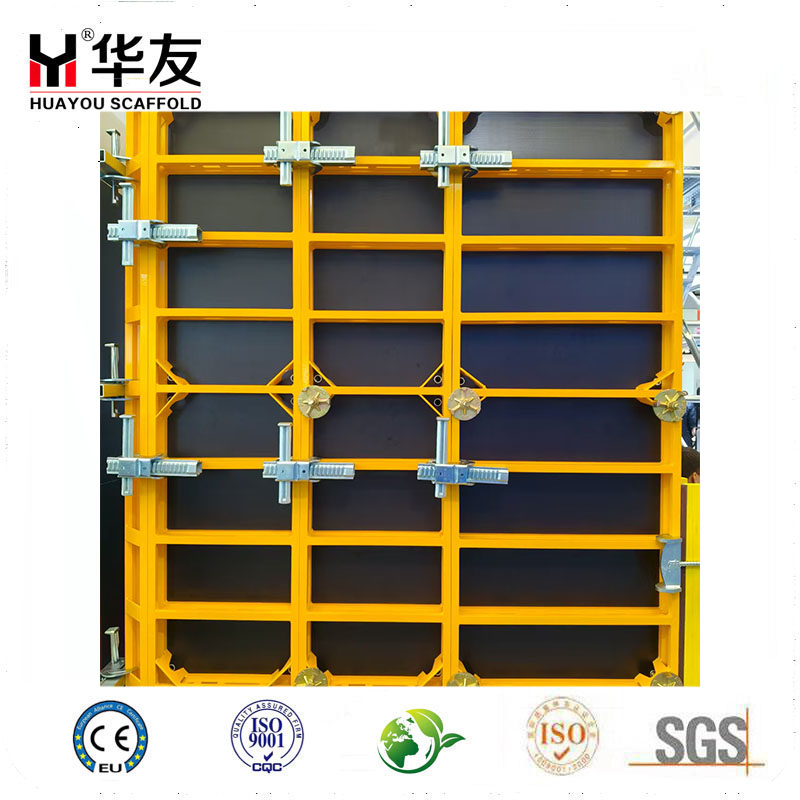

    HY-PFC-1

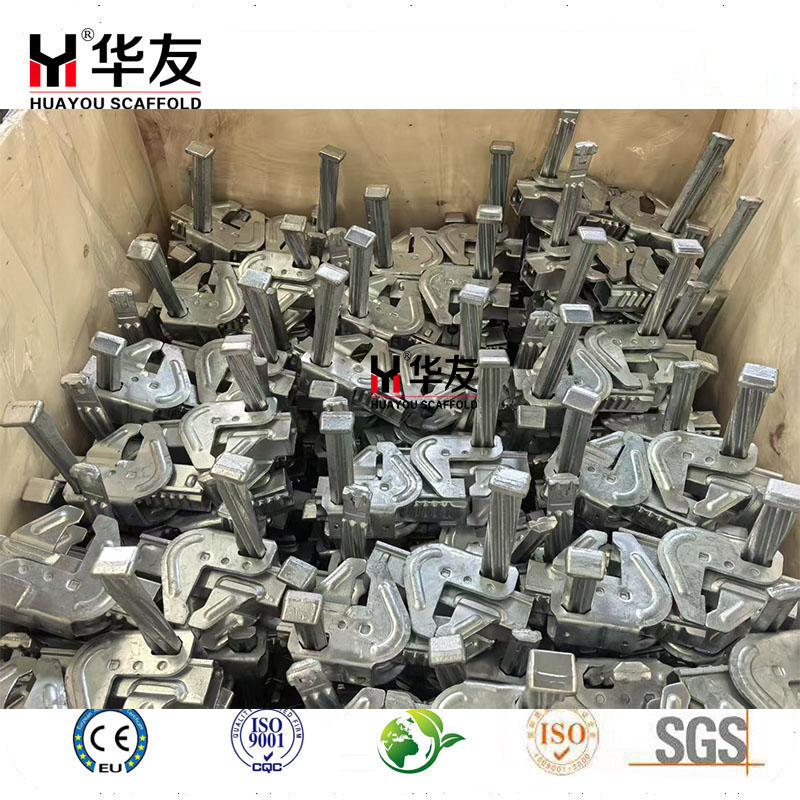

    Packing and Details

    Usually, all our Europa customers require wooden Box to packed them, thus all packing, loading and unloading are well kept. But the packing price is highest.

    Also have some other customers need woven bag.

    We will give different packages base on clients' requirements.

    Formwork Accessories

    Name Pic. Size mm Unit weight kg Surface Treatment
    Tie Rod   15/17mm 1.5kg/m Black/Galv.
    Wing nut   15/17mm 0.3kg Black/Electro-Galv.
    Wing nut 20/22mm 0.6kg Black/Electro-Galv.
    Round nut with 3 wings 20/22mm, D110 0.92kg Black/Electro-Galv.
    Round nut with 3 wings   15/17mm, D100 0.53 kg / 0.65kg Black/Electro-Galv.
    Round nut with 2 wings   D16 0.5kg Black/Electro-Galv.
    Hex nut   15/17mm 0.19kg Black/Electro-Galv.
    Tie nut- Swivel Combination Plate nut   15/17mm 1kg  Black/Electro-Galv.
    Washer   100x100mm   Black/Electro-Galv.
    Panel lock clamp 2.45kg Electro-Galv.
    Formwork clamp-Wedge Lock Clamp     2.8kg Electro-Galv.
    Formwork clamp-Universal Lock Clamp   120mm 4.3 Electro-Galv.
    Steel cone  DW15mm  75mm 0.32kg Black/Electro-Galv.
    Formwork Spring clamp   105x69mm 0.31 Electro-Galv./Painted
    Flat Tie   18.5mmx150L   Self-finished
    Flat Tie   18.5mmx200L   Self-finished
    Flat Tie   18.5mmx300L   Self-finished
    Flat Tie   18.5mmx600L   Self-finished
    Wedge Pin   79mm 0.28 Black
    Hook Small/Big       Painted silver
