High Quality Kwikstage Scaffold – Quick Assembly & Dismantle
Engineered for precision and durability, our Kwikstage scaffolding is robot-welded and laser-cut for superior strength and consistent quality within 1mm tolerances. This versatile system, available in Australian, British, and African types, features a hot-dip galvanized or painted finish for maximum corrosion resistance. Each order is securely packed on steel pallets and backed by our commitment to professional service and reliable performance for your construction projects.

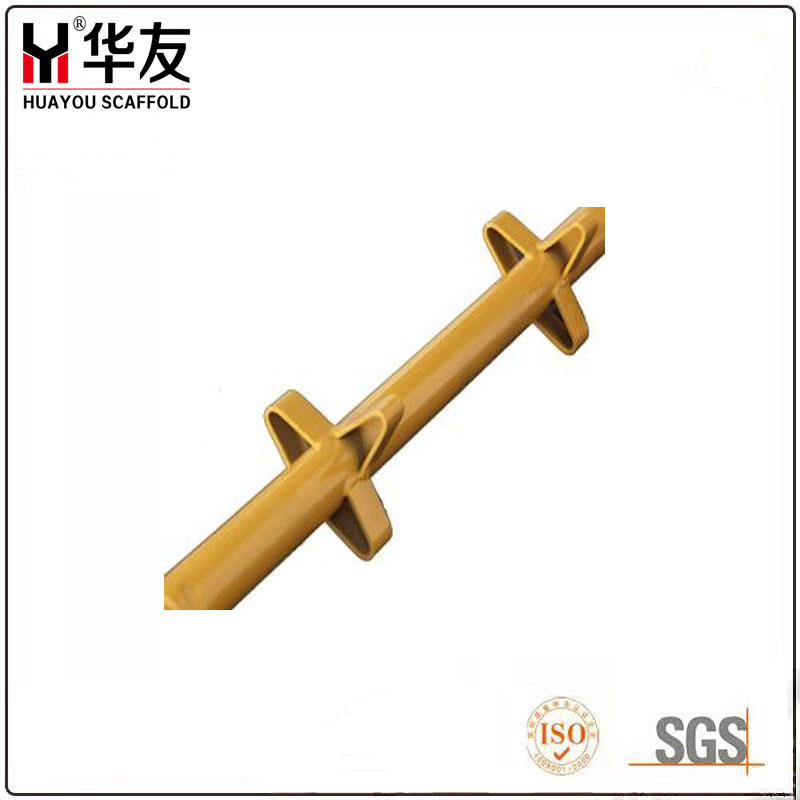

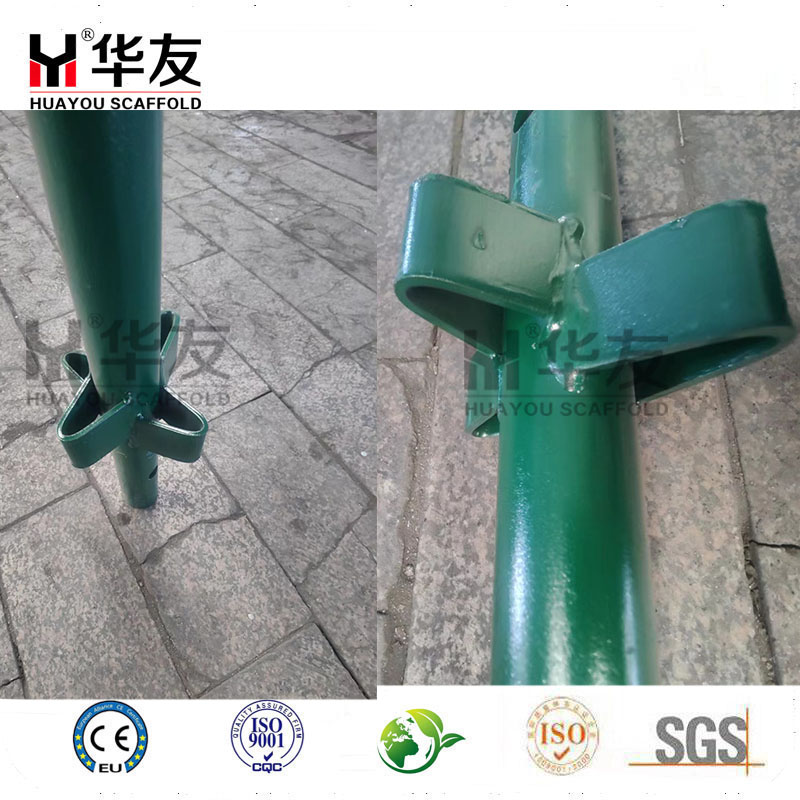

Kwikstage Scaffolding Vertical/Standard
|
NAME |
LENGTH(M) |
NORMAL SIZE(MM) |
MATERIALS |
|
Vertical/Standard |
L=0.5 |
OD48.3, Thk 3.0/3.2/3.6/4.0 |
Q235/Q355 |
|
Vertical/Standard |
L=1.0 |
OD48.3, Thk 3.0/3.2/3.6/4.0 |
Q235/Q355 |
|
Vertical/Standard |
L=1.5 |
OD48.3, Thk 3.0/3.2/3.6/4.0 |
Q235/Q355 |
|
Vertical/Standard |
L=2.0 |
OD48.3, Thk 3.0/3.2/3.6/4.0 |
Q235/Q355 |
|
Vertical/Standard |
L=2.5 |
OD48.3, Thk 3.0/3.2/3.6/4.0 |
Q235/Q355 |
|
Vertical/Standard |
L=3.0 |
OD48.3, Thk 3.0/3.2/3.6/4.0 |
Q235/Q355 |
Kwikstage Scaffolding Ledger
|
NAME |
LENGTH(M) |
NORMAL SIZE(MM) |
|
Ledger |
L=0.5 |
OD48.3, Thk 3.0-4.0 |
|
Ledger |
L=0.8 |
OD48.3, Thk 3.0-4.0 |
|
Ledger |
L=1.0 |
OD48.3, Thk 3.0-4.0 |
|
Ledger |
L=1.2 |
OD48.3, Thk 3.0-4.0 |
|
Ledger |
L=1.8 |
OD48.3, Thk 3.0-4.0 |
|
Ledger |
L=2.4 |
OD48.3, Thk 3.0-4.0 |
Kwikstage Scaffolding Brace
|
NAME |
LENGTH(M) |
NORMAL SIZE(MM) |
|
Brace |
L=1.83 |
OD48.3, Thk 3.0-4.0 |
|
Brace |
L=2.75 |
OD48.3, Thk 3.0-4.0 |
|
Brace |
L=3.53 |
OD48.3, Thk 3.0-4.0 |
|
Brace |
L=3.66 |
OD48.3, Thk 3.0-4.0 |

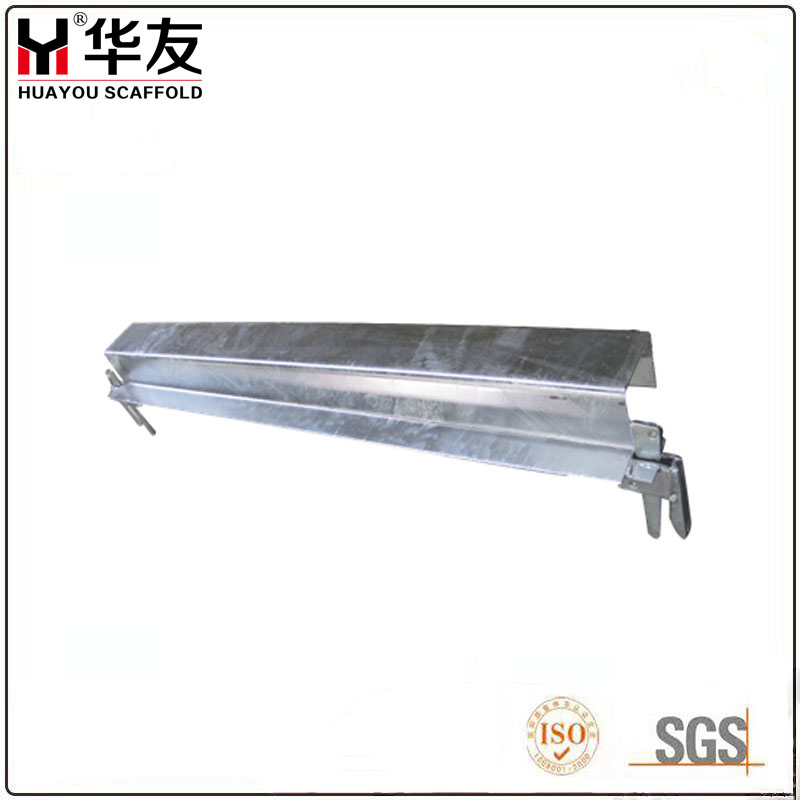

Kwikstage Scaffolding Transom
|
NAME |
LENGTH(M) |
NORMAL SIZE(MM) |
|
Transom |
L=0.8 |
OD48.3, Thk 3.0-4.0 |
|
Transom |
L=1.2 |
OD48.3, Thk 3.0-4.0 |
|
Transom |
L=1.8 |
OD48.3, Thk 3.0-4.0 |
|
Transom |
L=2.4 |
OD48.3, Thk 3.0-4.0 |
Kwikstage Scaffolding Return Transom
|
NAME |
LENGTH(M) |
|
Return Transom |
L=0.8 |
|
Return Transom |
L=1.2 |

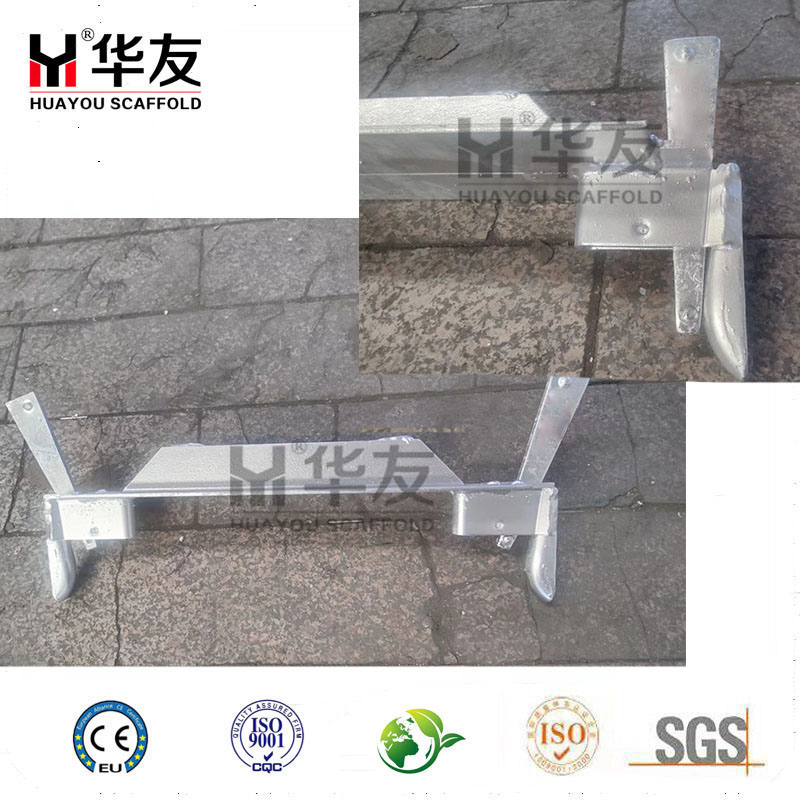

Kwikstage Scaffolding Platform Braket
|
NAME |
WIDTH(MM) |
|
One Board Platform Braket |
W=230 |
|
Two Board Platform Braket |
W=460 |
|
Two Board Platform Braket |
W=690 |

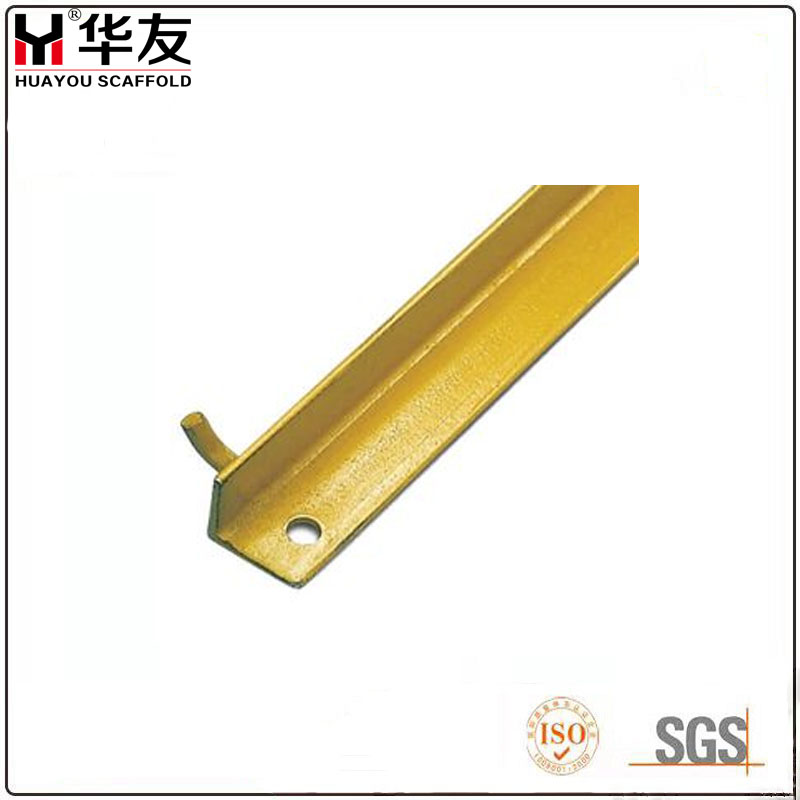

Kwikstage Scaffolding Tie Bars
|
NAME |
LENGTH(M) |
SIZE(MM) |
|
One Board Platform Braket |
L=1.2 |
40*40*4 |
|
Two Board Platform Braket |
L=1.8 |
40*40*4 |
|
Two Board Platform Braket |
L=2.4 |
40*40*4 |
Kwikstage Scaffolding Steel Board
|
NAME |
LENGTH(M) |
NORMAL SIZE(MM) |
MATERIALS |
|
Steel Board |
L=0.54 |
260*63.5*1.5/1.6/1.7/1.8 |
Q195/235 |
|
Steel Board |
L=0.74 |
260*63.5*1.5/1.6/1.7/1.8 |
Q195/235 |
|
Steel Board |
L=1.25 |
260*63.5*1.5/1.6/1.7/1.8 |
Q195/235 |
|
Steel Board |
L=1.81 |
260*63.5*1.5/1.6/1.7/1.8 |
Q195/235 |
|
Steel Board |
L=2.42 |
260*63.5*1.5/1.6/1.7/1.8 |
Q195/235 |
|
Steel Board |
L=3.07 |
260*63.5*1.5/1.6/1.7/1.8 |
Q195/235 |
Advantages
1. Outstanding manufacturing precision and quality: Utilizing robot automatic welding and laser cutting, it ensures smooth and firm weld seams, precise dimensions (with errors controlled within 1mm), strong structural load-bearing capacity, and safety and reliability.
2. Extremely high installation efficiency and multi-functionality: The modular design makes assembly and disassembly quick and easy, significantly reducing working hours and labor costs; The system has strong versatility and can be flexibly combined with various components to meet diverse construction requirements.
3. Long-lasting anti-rust performance and global applicability: It offers advanced surface treatments such as hot-dip galvanizing, with excellent weather resistance and a long service life. At the same time, we offer a variety of international models such as Australian standard and British standard to meet the regulations and usage habits of different markets.

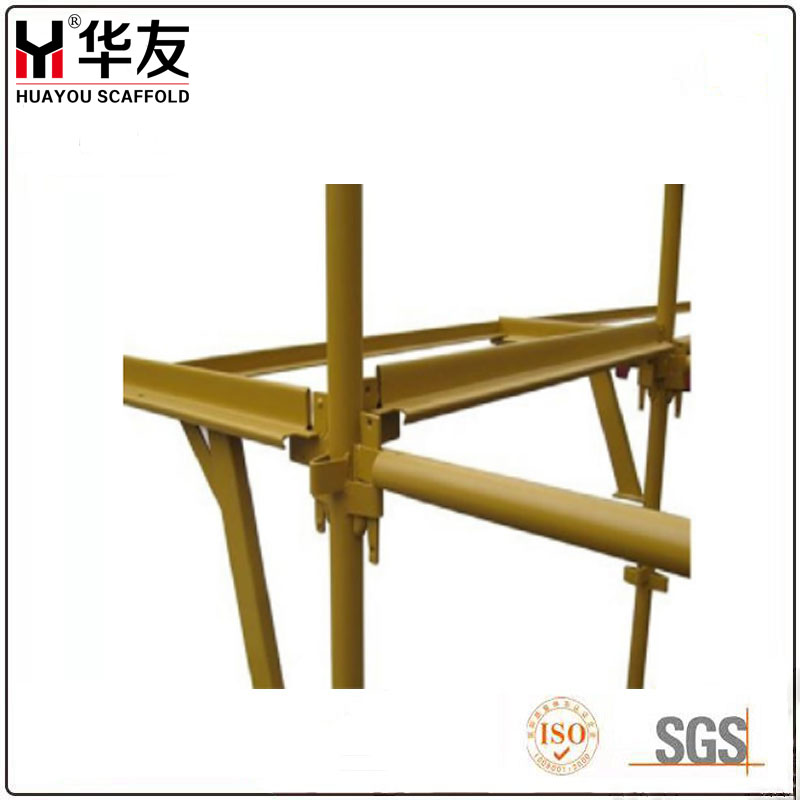

Actual Photos Showing
