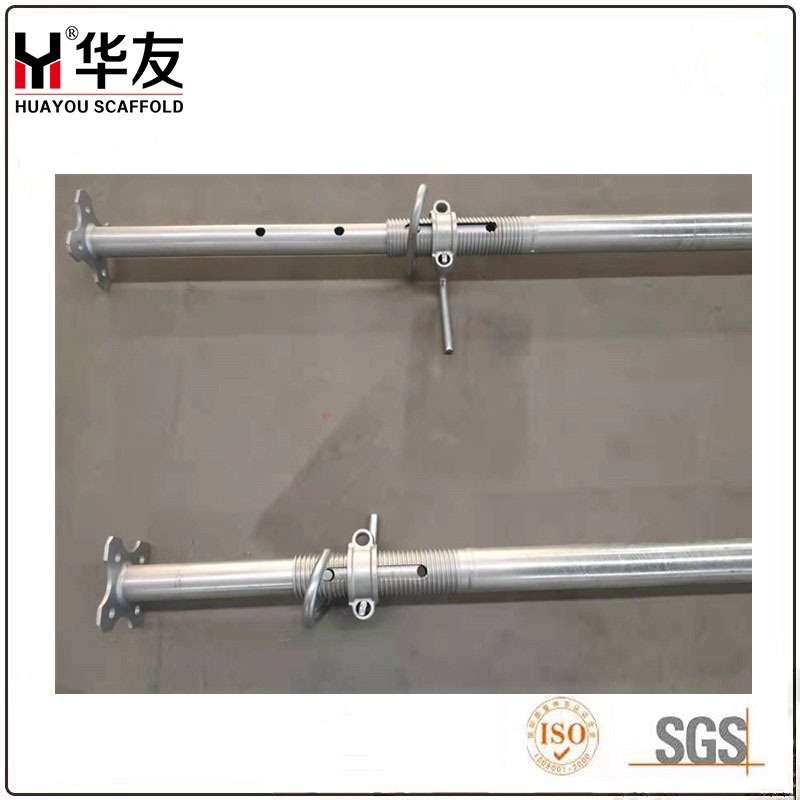

Multifunctional Adjustable Steel Support For Scaffolding Support
Huayou offers high-quality steel pillars for scaffolding, which are divided into two major types: light and heavy.
The product adopts high-precision laser drilling and thickened steel pipes, featuring strong load-bearing capacity, corrosion resistance and adjustable height, fully replacing traditional wooden poles. After undergoing strict quality inspection, its outstanding safety and durability have won us wide acclaim in the market.
Specification Details
|
Item |
Min Length-Max. Length |
Inner Tube(mm) |
Outer Tube(mm) |
Thickness(mm) |
|
Light Duty Prop |
1.7-3.0m |
40/48 |
48/56 |
1.3-1.8 |
|
1.8-3.2m |
40/48 |
48/56 |
1.3-1.8 |
|
|
2.0-3.5m |
40/48 |
48/56 |
1.3-1.8 |
|
|
2.2-4.0m |
40/48 |
48/56 |
1.3-1.8 |
|
| Heavy Duty Prop |
1.7-3.0m |
48/60 |
60/76 |
1.8-4.75 |
| 1.8-3.2m | 48/60 | 60/76 | 1.8-4.75 | |
| 2.0-3.5m | 48/60 | 60/76 | 1.8-4.75 | |
| 2.2-4.0m | 48/60 | 60/76 | 1.8-4.75 | |
| 3.0-5.0m | 48/60 | 60/76 | 1.8-4.75 |

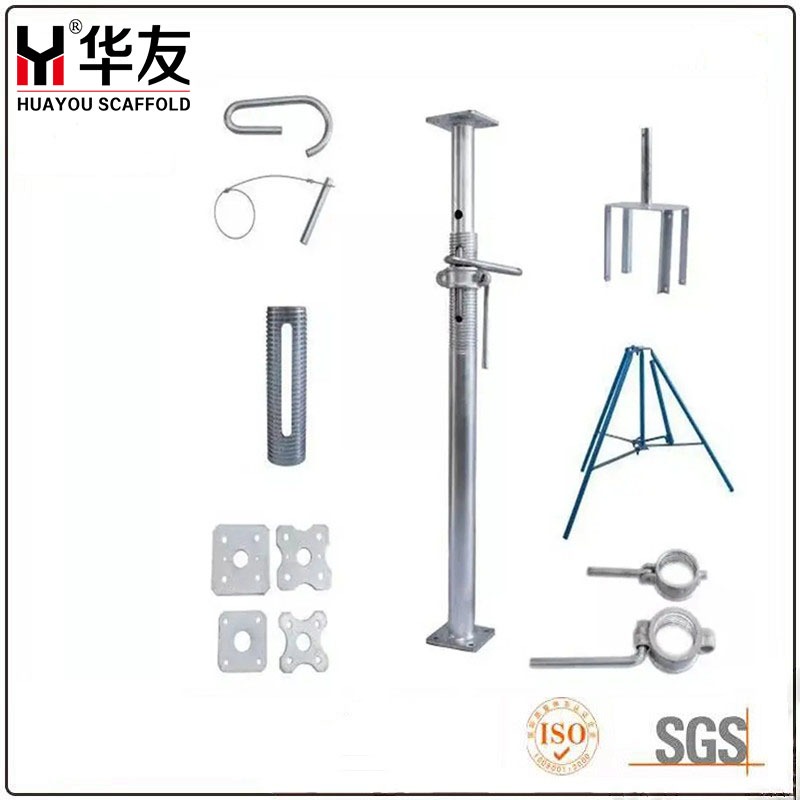

Other Information
| Name | Base Plate | Nut | Pin | Surface Treatment |
| Light Duty Prop | Flower type/
Square type |
Cup nut | 12mm G pin/
Line Pin |
Pre-Galv./
Painted/ Powder Coated |
| Heavy Duty Prop | Flower type/
Square type |
Casting/
Drop forged nut |
16mm/18mm G pin | Painted/
Powder Coated/ Hot Dip Galv. |
Advantages
1. Complete product range and wide application: We offer two major pillar series, light and heavy, covering various specifications such as OD40/76mm, to meet the needs of different construction scenarios from low load to high support strength.
2. Excellent load-bearing capacity, safe and reliable: Designed with high-strength steel and thickened pipe walls (≥2.0mm), it has a stronger load-bearing capacity and is less prone to breakage compared to traditional wooden poles, providing a solid and safe support guarantee for concrete pouring.
3. Precise adjustment, flexible and efficient: The inner tube adopts high-precision laser drilling technology, with precise hole positions, making the expansion and contraction adjustment more flexible and smooth. It can quickly adapt to different construction height requirements and improve work efficiency.

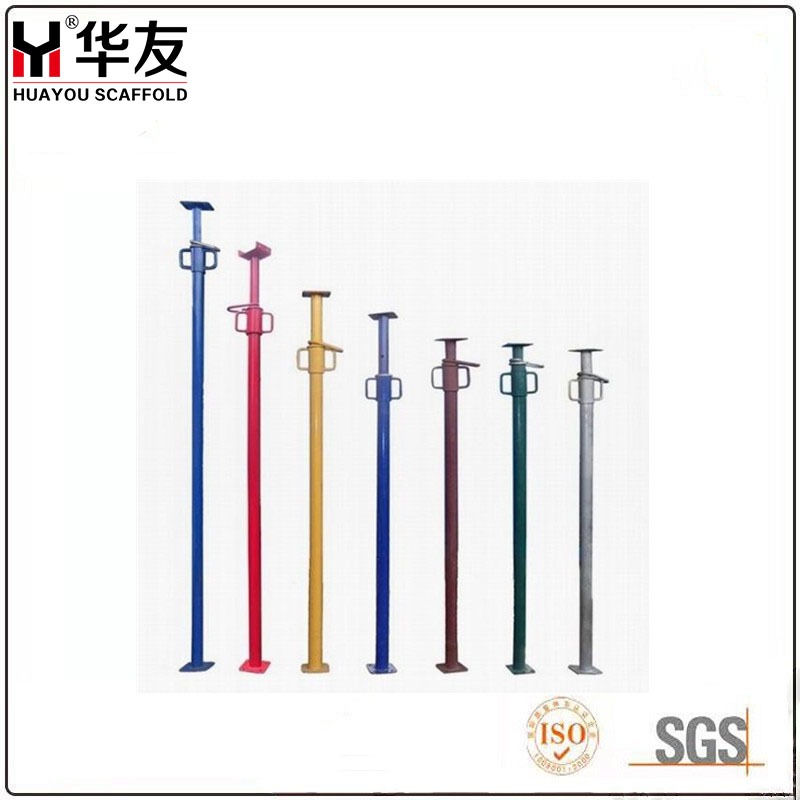

4. High-quality accessories, durable and sturdy: Heavy-duty pillars are equipped with cast/forged nuts, while light-duty pillars use specially designed cup-shaped nuts, ensuring a robust structure. We offer a variety of surface treatment methods such as painting, pre-galvanizing and electro-galvanizing, which are corrosion-resistant, wear-resistant and have a long service life.
5. Strict quality control and quality assurance: From raw materials to finished products, each batch of products undergoes strict inspection and testing by the QC department to ensure compliance with international quality standards and specific customer requirements, maintaining consistent quality.
6. Exquisite craftsmanship and leading technology: With an experienced production team and continuously improving processing techniques, it was the first to adopt advanced processes such as laser drilling, ensuring the accuracy and consistency of product processing, and enjoys a high reputation in the industry.
