Adjustable Bridge Inspection Scaffolding System With Easy Assembly
Description

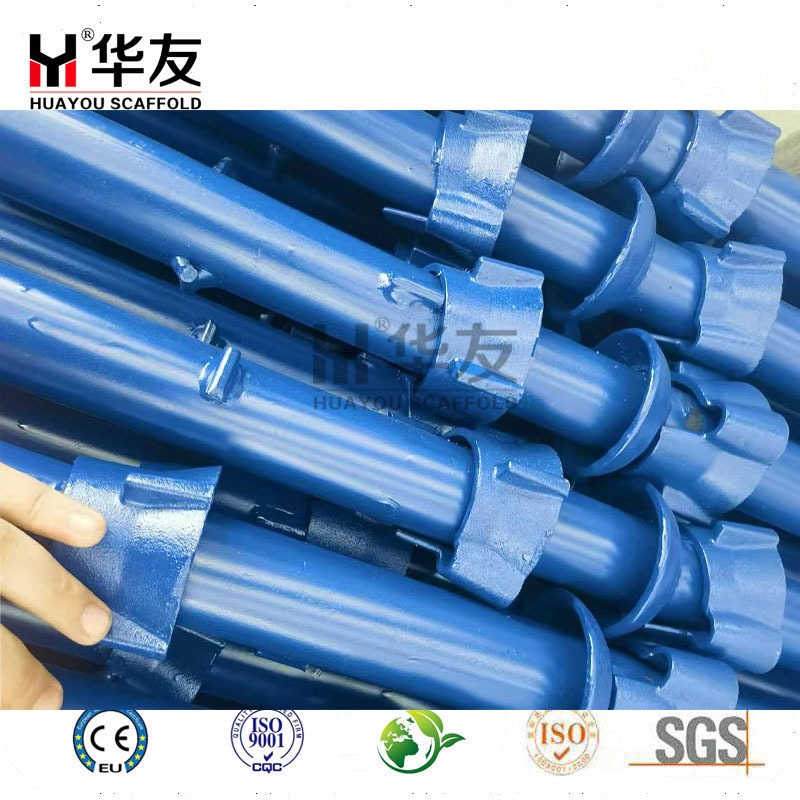

Bridge Scaffolding System features vertical standards with top and bottom cups, and horizontal ledgers with pressed or forged blade ends. It includes diagonal braces with couplers or riveted blades, and steel boards ranging from 1.3mm to 2.0mm in thickness.
Specification Details
|
Name |
Diameter (mm) |
thickness(mm) | Length (m) |
Steel Grade |
Spigot |
Surface Treatment |
|
Cuplock Standard |
48.3 |
2.5/2.75/3.0/3.2/4.0 |
1.0 |
Q235/Q355 |
Outer sleeve or Inner Joint |
Hot Dip Galv./Painted |
|
48.3 |
2.5/2.75/3.0/3.2/4.0 |
1.5 |
Q235/Q355 |
Outer sleeve or Inner Joint |
Hot Dip Galv./Painted |
|
|
48.3 |
2.5/2.75/3.0/3.2/4.0 |
2.0 |
Q235/Q355 |
Outer sleeve or Inner Joint |
Hot Dip Galv./Painted |
|
|
48.3 |
2.5/2.75/3.0/3.2/4.0 |
2.5 |
Q235/Q355 |
Outer sleeve or Inner Joint |
Hot Dip Galv./Painted |
|
|
48.3 |
2.5/2.75/3.0/3.2/4.0 |
3.0 |
Q235/Q355 |
Outer sleeve or Inner Joint |
Hot Dip Galv./Painted |
|
Name |
Diameter (mm) |
Thickness(mm) |
Length (mm) |
Steel Grade |
Blade Head |
Surface Treatment |
|
Cuplock Ledger |
48.3 |
2.5/2.75/3.0/3.2/4.0 |
750 |
Q235 |
Pressed/Casting/Forged |
Hot Dip Galv./Painted |
|
48.3 |
2.5/2.75/3.0/3.2/4.0 |
1000 |
Q235 |
Pressed/Casting/Forged |
Hot Dip Galv./Painted |
|
|
48.3 |
2.5/2.75/3.0/3.2/4.0 |
1250 |
Q235 |
Pressed/Casting/Forged |
Hot Dip Galv./Painted |
|
|
48.3 |
2.5/2.75/3.0/3.2/4.0 |
1300 |
Q235 |
Pressed/Casting/Forged |
Hot Dip Galv./Painted |
|
|
48.3 |
2.5/2.75/3.0/3.2/4.0 |
1500 |
Q235 |
Pressed/Casting/Forged |
Hot Dip Galv./Painted |
|
|
48.3 |
2.5/2.75/3.0/3.2/4.0 |
1800 |
Q235 |
Pressed/Casting/Forged |
Hot Dip Galv./Painted |
|
|
48.3 |
2.5/2.75/3.0/3.2/4.0 |
2500 |
Q235 |
Pressed/Casting/Forged |
Hot Dip Galv./Painted |
|
Name |
Diameter (mm) |
Thickness (mm) |
Steel Grade |
Brace Head |
Surface Treatment |
|
Cuplock Diagonal Brace |
48.3 |
2.0/2.3/2.5/2.75/3.0 |
Q235 |
Blade or Coupler |
Hot Dip Galv./Painted |
|
48.3 |
2.0/2.3/2.5/2.75/3.0 |
Q235 |
Blade or Coupler |
Hot Dip Galv./Painted |
|
|
48.3 |
2.0/2.3/2.5/2.75/3.0 |
Q235 |
Blade or Coupler |
Hot Dip Galv./Painted |
Advantages
1. Outstanding stability and security
The unique Cuplock connection mechanism is formed by the wedge-shaped blade on the horizontal pole head locking with the lower cuplock on the vertical pole, creating a rigid connection. The structure is stable and has strong load-bearing capacity, providing extremely high safety guarantees for high-altitude operations.
2. Extremely high modularity and universality
The system is composed of a few components such as standard vertical rods, horizontal crossbars and diagonal braces. The modular design enables it to be built from the ground as well as used for suspension support. It can flexibly construct fixed or mobile scaffolding, support towers, etc., and is suitable for various building shapes and project types.
3. Quick installation and outstanding efficiency
The simple "fastening" method does not require any loose parts such as bolts and nuts, greatly reducing the use of tools and the risk of component loss. This makes the assembly and disassembly process very rapid, significantly saving labor costs and construction time.
4. The components are sturdy and durable
The main load-bearing components (vertical rods and horizontal rods) are all made of Q235 or Q355 high-strength steel, ensuring the rigidity and durability of the material. Galvanized surface treatment provides excellent anti-corrosion ability and extends the service life.
5. Widely applied and economically efficient
Its strong adaptability and reusability make it an ideal choice for everything from residential construction to large-scale industrial, commercial and bridge projects. The rapid assembly and dismantling speed and long service life jointly reduce the comprehensive usage cost of the project.
FAQS
1. Q: What makes the Cuplock system different from other scaffolding types?
A: Its unique cup-shaped node points allow for simultaneous connection of up to four components—standards, ledgers, and diagonals—with a single hammer blow, ensuring faster erection and a highly rigid structure.
2. Q: What are the primary components of a basic Cuplock scaffold frame?
A: The core components are vertical Standards (with fixed bottom and top cups), horizontal Ledgers (with forged blade ends), and Diagonals (with specialized ends) that lock into the cups to create a stable lattice.
3. Q: Can Cuplock scaffolding be used for mobile access towers?
A: Yes, the Cuplock system is highly versatile. It can be configured as static towers or mounted on casters to create mobile rolling towers for overhead work that requires frequent repositioning.
4. Q: What materials are typically used for key Cuplock components?
A: Main components are made from high-strength steel. Standards and Ledgers use Q235 or Q355 grade steel tubes. Base jacks and U-head jacks are also steel, while scaffolding boards are typically 1.3mm-2.0mm thick steel plates.
5. Q: Is the Cuplock system suitable for heavy-load applications?
A: Absolutely. The robust cup-lock mechanism and the system's design create a rigid frame with high load-bearing capacity, making it ideal for supporting heavy materials and workers on large commercial and industrial projects.
