Aluminium Telescopic Single Ladder
Aluminium ladder is very famous and be acceptable to all homework, farm work, interior decoration and other small projects etc, with so many advantages, such as portable, flexible, safe and durable.
During these years, we already can design and produce many types aluminium products base on differrent markets requirements. Mainly supply aluminium single ladder, telescopic ladder and hinge multipurpose ladder. Also please offer your drawing design, we can give you more skilled support.
Let's make a different through our cooperation.
Main types
Aluminium single ladder
Aluminium single telescopic ladder
Aluminium multipurpose telescopic ladder
Aluminium big hinge multipurpose ladder
Aluminium tower platform
Aluminium plank with hook
1) Aluminium Single Telescopic Ladder
| Name | Photo | Extension Length(M) | Step Height (CM) | Closed Length (CM) | Unit Weight (kg) | Max Loading (Kg) |
| Telescopic ladder |  |
L=2.9 | 30 | 77 | 7.3 | 150 |
| Telescopic ladder | L=3.2 | 30 | 80 | 8.3 | 150 | |
| Telescopic ladder | L=3.8 | 30 | 86.5 | 10.3 | 150 | |
| Telescopic ladder |  |
L=1.4 | 30 | 62 | 3.6 | 150 |
| Telescopic ladder | L=2.0 | 30 | 68 | 4.8 | 150 | |
| Telescopic ladder | L=2.0 | 30 | 75 | 5 | 150 | |
| Telescopic ladder | L=2.6 | 30 | 75 | 6.2 | 150 | |
| Telescopic ladder with Finger Gap and Stabilize Bar |  |
L=2.6 | 30 | 85 | 6.8 | 150 |
| Telescopic ladder with Finger Gap and Stabilize Bar | L=2.9 | 30 | 90 | 7.8 | 150 | |
| Telescopic ladder with Finger Gap and Stabilize Bar | L=3.2 | 30 | 93 | 9 | 150 | |
| Telescopic ladder with Finger Gap and Stabilize Bar | L=3.8 | 30 | 103 | 11 | 150 | |
| Telescopic ladder with Finger Gap and Stabilize Bar | L=4.1 | 30 | 108 | 11.7 | 150 | |
| Telescopic ladder with Finger Gap and Stabilize Bar | L=4.4 | 30 | 112 | 12.6 | 150 |
2) Aluminium Multipurpose Ladder
|
Name |
Photo |
Extension Length (M) |
Step Height (CM) |
Closed Length (CM) |
Unit Weight (Kg) |
Max Loading (Kg) |
|
Multipurpose Ladder |
|
L=3.2 |
30 |
86 |
11.4 |
150 |
|
Multipurpose Ladder |
L=3.8 |
30 |
89 |
13 |
150 |
|
|
Multipurpose Ladder |
L=4.4 |
30 |
92 |
14.9 |
150 |
|
|
Multipurpose Ladder |
L=5.0 |
30 |
95 |
17.5 |
150 |
|
|
Multipurpose Ladder |
L=5.6 |
30 |
98 |
20 |
150 |
3) Aluminium Double Telescopic Ladder
| Name | Photo | Extension Length(M) | Step Height (CM) | Closed Length (CM) | Unit Weight (Kg) | Max Loading(Kg) |
| Double Telescopic Ladder |  |
L=1.4+1.4 | 30 | 63 | 7.7 | 150 |
| Double Telescopic Ladder | L=2.0+2.0 | 30 | 70 | 9.8 | 150 | |
| Double Telescopic Ladder | L=2.6+2.6 | 30 | 77 | 13.5 | 150 | |
| Double Telescopic Ladder | L=2.9+2.9 | 30 | 80 | 15.8 | 150 | |
| Telescopic Combination Ladder | L=2.6+2.0 | 30 | 77 | 12.8 | 150 | |
| Telescopic Combination Ladder | L=3.8+3.2 | 30 | 90 | 19 | 150 |

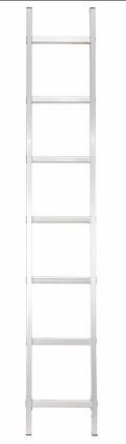

4) Aluminium Single Straight Ladder
| Name | Photo | Length (M) | Width (CM) | Step Height (CM) | Customize | Max Loading(Kg) |
| Single Straight Ladder |  |
L=3/3.05 | W=375/450 | 27/30 | Yes | 150 |
| Single Straight Ladder | L=4/4.25 | W=375/450 | 27/30 | Yes | 150 | |
| Single Straight Ladder | L=5 | W=375/450 | 27/30 | Yes | 150 | |
| Single Straight Ladder | L=6/6.1 | W=375/450 | 27/30 | Yes | 150 |
Company Advantages
we have Skilled workers,dynamic sales team,specialised QC, top quality services and products for ODM Factory ISO and SGS Certificated H. D. G. E. G. Different Types Stable Steel Material Ringlock Scaffolding, Our ultimate objective is always to rank as a top brand and to lead as a pioneer within our field. We have been sure our thriving experience in tool generation will win customer's trust, Wish to co-operate and co-create a far better potential along with you!
ODM Factory China Prop and Steel Prop, Due to the changing trends in this field, we involve ourselves into merchandise trade with dedicated efforts and managerial excellence. We maintain timely delivery schedules, innovative designs, quality and transparency for our customers. Our moto is to deliver quality solutions within stipulated time.
We have now advanced machines. Our merchandise are exported towards the USA, the UK and so on, enjoying a good reputation amongst consumers for Factory Q195 Scaffolding Planks in Bundle 225mm Board Metal Deck 210-250mm, Welcome to arrange long-term marriage with us. Most effective Selling price Forever Quality in China.
China Scaffolding Lattice Girder and Ringlock Scaffold, We warmly welcome domestic and overseas customers to visit our company and have business talk. Our company always insists on the principle of "good quality, reasonable price, the first-class service". We've been willing to build long-term, friendly and mutually beneficial cooperation with you.
