Building Scaffold Steel Plank And Construction Projects

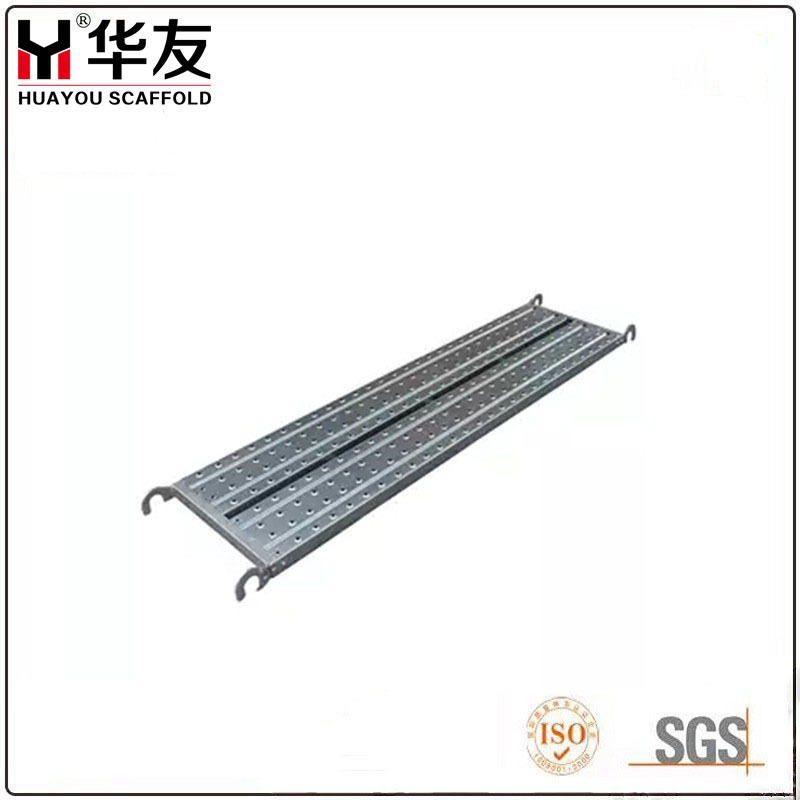

Our scaffolding passage plates are made by welding multiple steel plates through hooks to form wide walkways, and are available in various specifications ranging from 400mm to 500mm. Its sturdy steel structure and anti-slip design ensure the safe movement of workers, making it suitable for various construction and engineering scenarios, and balancing efficiency and protection.
As a key component in the disc-type scaffolding system, this passage plate is welded from steel plates and hooks, forming a wide and stable working surface. Wear-resistant, anti-slip and flexible installation, it effectively enhances safety and work efficiency in construction and maintenance projects.
Size as following
|
Item |
Width (mm) |
Height (mm) |
Thickness (mm) |
Length (mm) |
Stiffener |
|

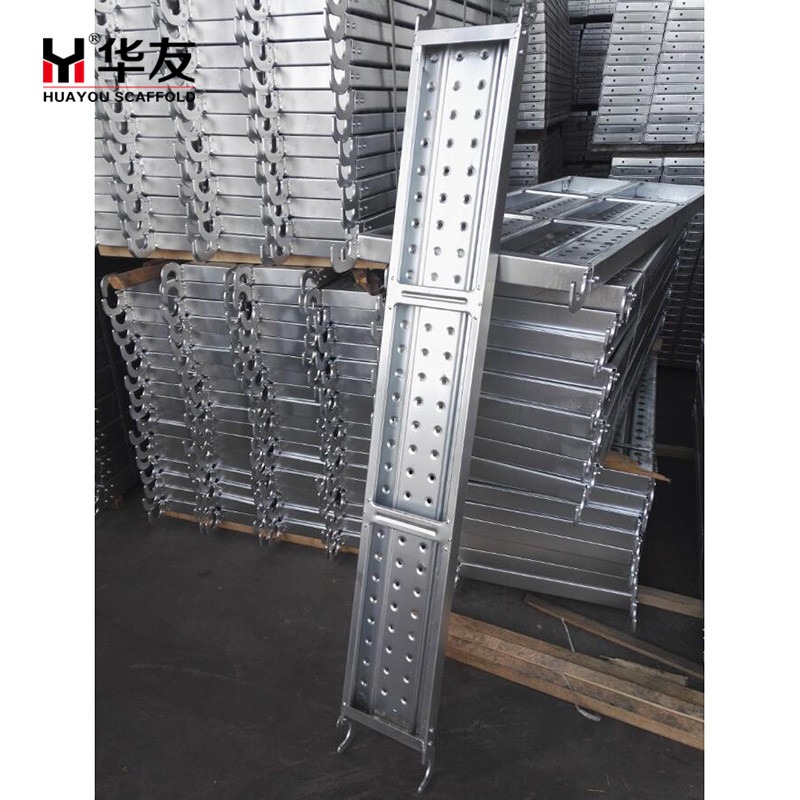

Plank with hooks
|
200 |
50 |
1.0/1.1/1.1/1.5/1.8/2.0 |
500-3000 |
Flat support |
|
210 |
45 |
1.0/1.1/1.1/1.5/1.8/2.0 |
500-3000 |
Flat support |
|
|
240 |
45/50 |
1.0/1.1/1.1/1.5/1.8/2.0 |
500-3000 |
Flat support |
|
|
250 |
50/40 |
1.0/1.1/1.1/1.5/1.8/2.0 |
500-3000 |
Flat support |
|
|
300 |
50/65 |
1.0/1.1/1.1/1.5/1.8/2.0 |
500-3000 |
Flat support |
|
| Catwalk |
400 |
50 |
1.0/1.1/1.1/1.5/1.8/2.0 |
500-3000 |
Flat support |
|
420 |
45 |
1.0/1.1/1.1/1.5/1.8/2.0 |
500-3000 |
Flat support |
|
|
450 |
38/45 | 1.0/1.1/1.1/1.5/1.8/2.0 | 500-3000 | Flat support | |
| 480 | 45 | 1.0/1.1/1.1/1.5/1.8/2.0 | 500-3000 | Flat support | |
| 500 | 40/50 | 1.0/1.1/1.1/1.5/1.8/2.0 | 500-3000 | Flat support | |
| 600 | 50/65 | 1.0/1.1/1.1/1.5/1.8/2.0 | 500-3000 | Flat support |
Advantages
1. Outstanding safety and stability
Firm connection: The steel plate and the hook are firmly combined through welding and riveting processes to ensure a stable and reliable connection with the scaffolding system (such as the disc type), effectively preventing displacement and overturning.
High-strength load-bearing capacity: Made of sturdy steel, it has a strong load-bearing capacity, providing a stable and safe working platform for personnel and equipment.
Outstanding anti-slip performance: The board surface is designed with concave and convex holes, providing excellent anti-slip performance, significantly reducing the risk of workers slipping and enhancing their confidence in high-altitude operations.
2. Excellent durability and economy
Extra-long service life: High-quality steel and exquisite craftsmanship ensure the product's durability. Under normal construction conditions, it can be continuously used for 6 to 8 years, far exceeding similar products on the market.
High residual value recycling: Even if the steel is scrapped after many years, it can still be recycled. It is estimated that 35% to 40% of the initial investment can be recovered, further reducing the long-term usage cost.
Superior cost performance: The initial purchase price is lower than that of wooden pedals. Combined with its extremely long lifespan, the total life cycle cost is highly competitive.
3. Strong functionality and applicability
Multi-functional application: Specifically designed for scaffolding systems, it is widely applicable to various scenarios such as construction sites, maintenance projects, industrial applications, Bridges, and even shipyards.
Special processes for harsh environments: The unique bottom sand hole design can effectively prevent the accumulation of sand particles, making it particularly suitable for harsh environments such as painting and sandblasting workshops in shipyards.
Improving scaffolding erection efficiency: The use of steel plates can appropriately reduce the number of steel pipes in scaffolding, simplify the structure, and thereby enhance the overall scaffolding erection efficiency.
4. Convenient installation and flexibility
Quick installation and disassembly: The carefully designed hooks make installation and disassembly simple and fast, and can be flexibly adjusted according to project requirements, saving labor and time costs.
Customized options: We can weld and produce steel plates and channel plates of different specifications and sizes according to customer requirements (with standard widths ranging from 200mm to over 500mm), meeting diverse project needs.
5. Excellent material properties
Lightweight and high strength: While ensuring high strength, the product is relatively light in weight, making it easy to handle and operate.
Outstanding corrosion resistance: It has excellent anti-corrosion and alkali resistance properties, and is suitable for various complex construction environments.
Fireproof and flame-retardant: Steel itself is non-combustible, providing a natural fire safety guarantee.
Basic information
Huayou Company specializes in the research and development as well as production of steel scaffolding boards and channel boards. With decades of experience in scaffolding manufacturing, we can provide a variety of high-quality steel treads with different specifications and functions according to the diverse needs of our customers. Our products serve the global construction, maintenance and industrial application fields with outstanding durability, safety and flexibility.
FAQS
Q1. What is a Scaffolding Catwalk, and how is it different from a single plank?
A: Scaffolding Catwalk is a wider working platform created by welding two or more steel planks together with integrated hooks. Unlike single planks (e.g., 200mm wide), catwalks are designed for broader walkways and platforms, with common widths of 400mm, 450mm, 500mm, etc. They are primarily used as an operating or walking platform in Ringlock scaffolding systems, providing a safer and more spacious area for workers.
Q2. How are the planks secured to the scaffolding?
A:Our steel planks and catwalks feature specially designed hooks that are welded and riveted to the sides of the planks. These hooks allow for easy and secure attachment directly onto the scaffolding frames. This design ensures the platform remains firmly in place during use while also allowing for quick installation and dismantling.
Q3. What are the main advantages of your steel planks?
A:Our Huayou steel planks offer numerous advantages:

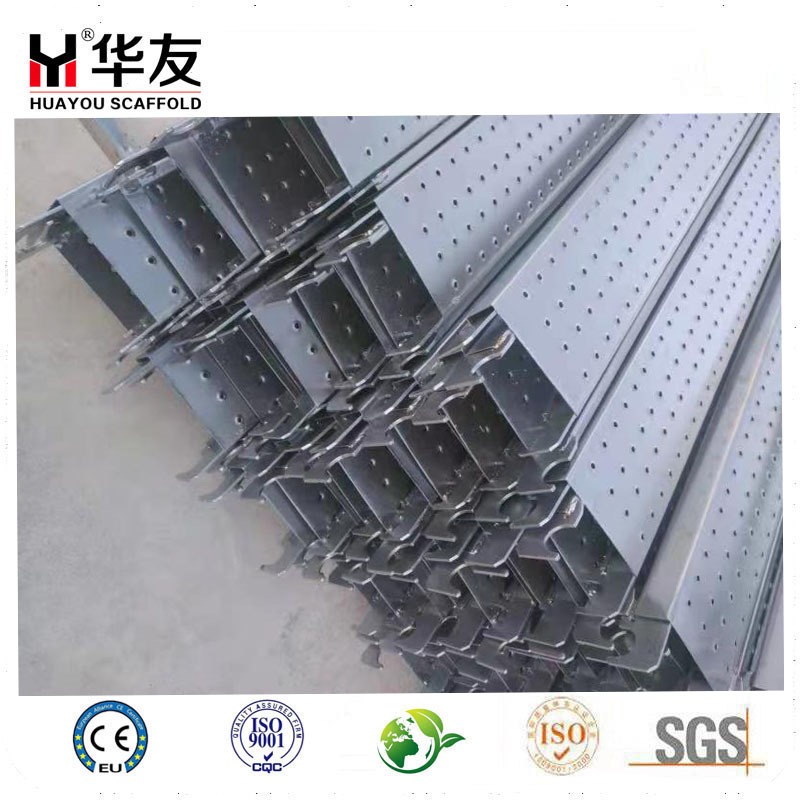

- Safety & Durability: Made of robust steel (Q195, Q235), they are fireproof, corrosion-resistant, and have high compressive strength. The surface has a non-slip design with concave and convex holes.
- Longevity & Economy: They can be used continuously for 6-8 years, and even after scrapping, 35-40% of the investment can be recovered. The price is lower than wooden planks.
- Efficiency: Their design reduces the number of scaffolding pipes needed and improves erection efficiency.
- Specialized Use: The unique sand-hole process on the bottom prevents sand accumulation, making them ideal for environments like shipyard painting and sandblasting workshops.
Q4. What are your available sizes and customization options?
A:We offer a wide range of standard sizes to meet different needs.
- Single Planks: 200*50mm, 210*45mm, 240*45mm, 250*50mm, 300*50mm, 320*76mm, etc.
- Catwalks (Welded Planks): 400mm, 420mm, 450mm, 480mm, 500mm in width, etc.
Furthermore, with over ten years of manufacturing experience, we can produce different types of steel planks and weld planks with hooks together based on specific customer requirements.
Q5. What are the order details regarding materials, delivery, and MOQ?
- Brand: Huayou
- Materials: High-quality Q195 or Q235 steel.
- Surface Treatment: Available in hot-dipped galvanized or pre-galvanized for enhanced corrosion resistance.
- Minimum Order Quantity (MOQ): 15 Tons.
- Delivery Time: Typically 20-30 days, depending on the order quantity.
- Packaging: Securely bundled with steel straps for safe transport.
