Formwork Accessories Tie Rod and tie Nuts

Short Description:

Formwork accessories include so many products, the tie rod and nuts are very important to fix formworks with wall together tightly. Normally, we use tie rod is D15/17mm, D20/22mm size, length can give different base on customers’ requirements. Nut have so many different types, round nut, wing nut, swivel nut with round plate, hex nut, water stopper and washer etc.

Accessories: Tie rod and nut

Raw Materials: Q235/#45 steel/QT450

Surface Treatment: black/Galv.

Send email to us

Product Detail

Product Tags

Company Introduction

Tianjin Huayou Scaffolding Co., Ltd is located in Tianjin City, which can give us more support to choose different steel grade raw materials and also can control qualtiy.

For Formwork system, tie rod and nut are very important parts to connect whole system for concrete building. Currently, Tie rod have two different pattern, British and metric measurement. Steel grade have Q235 and #45 steel. But for nut, steel grade are all same, QT450, just looking and diameter different. Normal size are D90,D100,D110,D120 etc

Currently, our products are export to many countries that from South East Asia region, Middle East Market and Europe, America, etc.

Our principle: "Quality First, Customer Foremost and Service Ultmost." We devote ourselves to meet your

requirements and promote our mutually beneficial cooperation.

Details Showing

Honestly, every different markets have different requirements and the quality is uneven. and, most clients or final user have no idea to quality, only care and compare price.

Actually, according to different requirements, we produce different level quality for choosing.

For high quality clients, we suggest them #45 steel raw materails and hot-rolling one, D17MM, the

tensile strength can reach 185-190kn.

D20, the tensile strength can reach 20kn.

For lower required, we suggest them Q235 raw materials and cold-drawing one, the tensile strength only 130-140kn

Name	Size	Technique Process	Surface Treatment	Raw materials

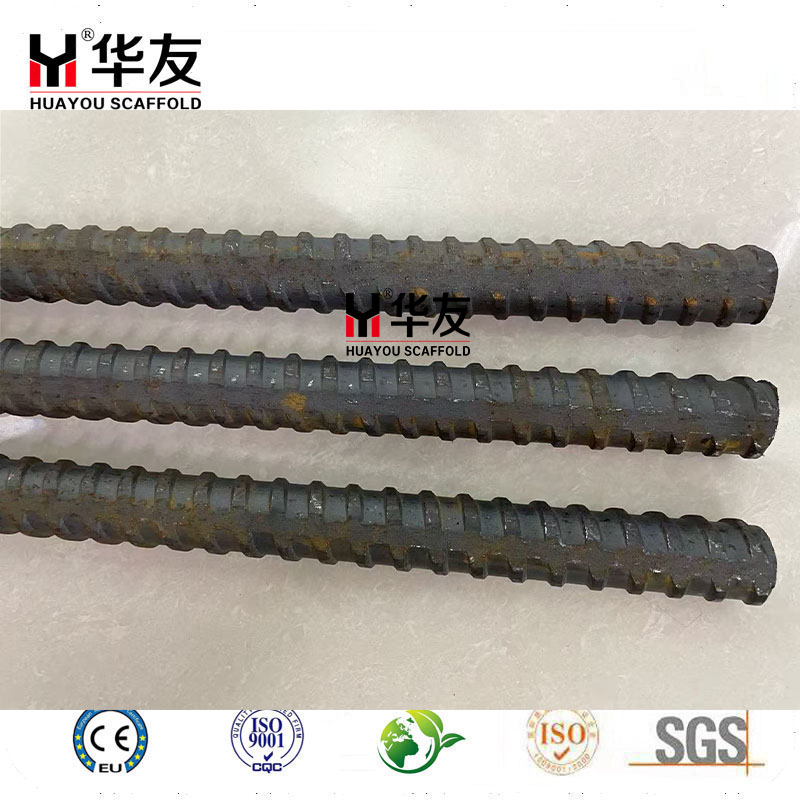

Tie Rod	D15/17mm	Hot-rolling	Black/Hot Dip Galv/Electro-Galv.	Q235/#45 steel

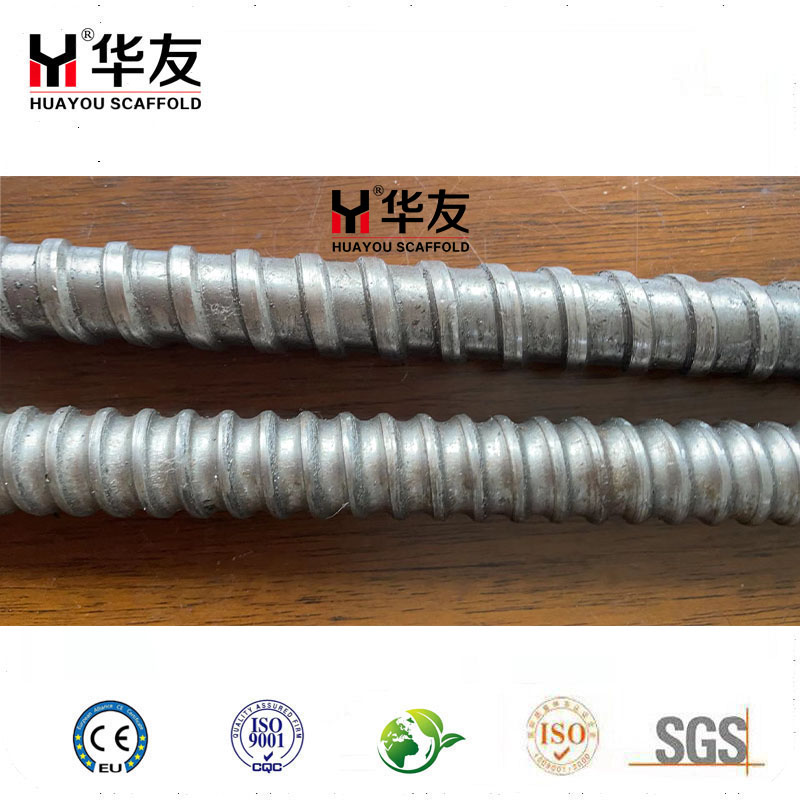

Tie Rod	D15/17mm	Cold-drawing	Black/Hot Dip Galv/Electro-Galv.	Q235/#45 steel
Tie Rod	D20/22mm	Hot-rolling	Black/Hot Dip Galv/Electro-Galv.	Q235/#45 steel

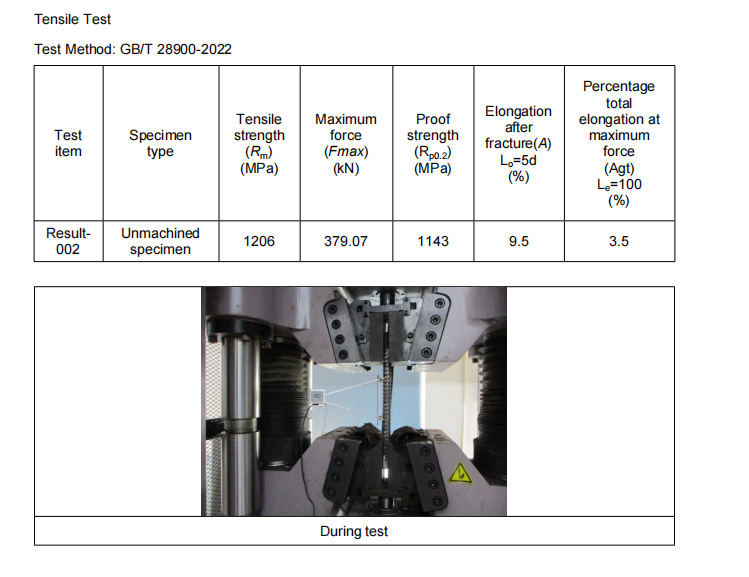

Testing Report

Our Company have very strict production process, from raw materials to loading container, our QC will have a complete procedure to ensure all goods Ex-warehouse with well situation.

Because of quality and cost, we will suggest different choices to different customers.

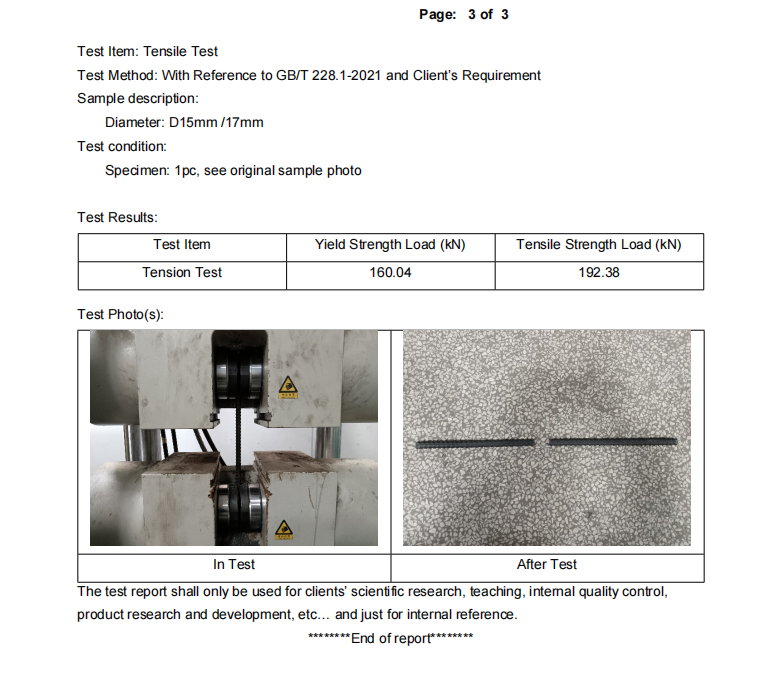

For Tie rod and nut, Testing Standard is GB/T28900 and GB/T 228.

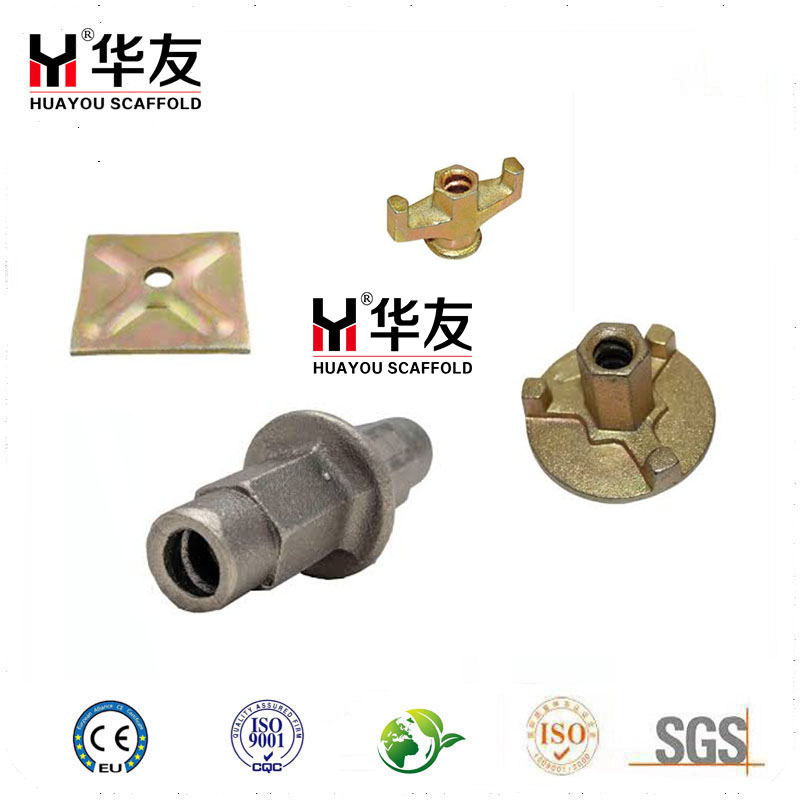

Formwork Accessories

Name	Pic.	Size mm	Unit weight kg	Surface Treatment
Tie Rod		15/17mm	1.5kg/m	Black/Galv.
Wing nut		15/17mm	0.3kg	Black/Electro-Galv.
Wing nut		20/22mm	0.6kg	Black/Electro-Galv.

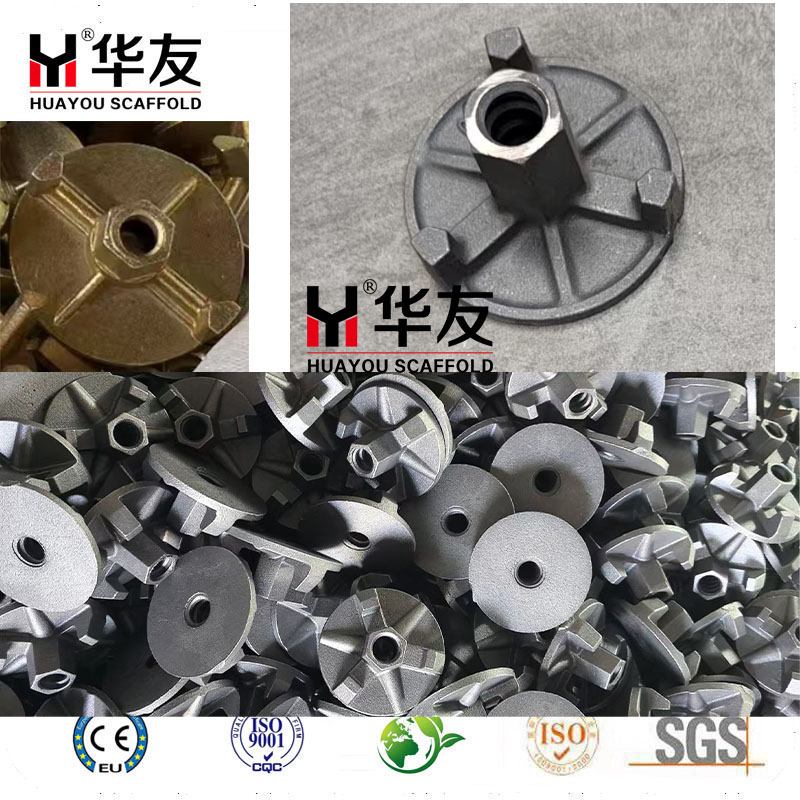

Round nut with 3 wings		20/22mm, D110	0.92kg	Black/Electro-Galv.
Round nut with 3 wings		15/17mm, D100	0.53 kg / 0.65kg	Black/Electro-Galv.
Round nut with 2 wings		D16	0.5kg	Black/Electro-Galv.
Hex nut		15/17mm	0.19kg	Black/Electro-Galv.
Tie nut- Swivel Combination Plate nut		15/17mm	1kg	Black/Electro-Galv.
Washer		100x100mm		Black/Electro-Galv.
Panel lock clamp			2.45kg	Electro-Galv.
Formwork clamp-Wedge Lock Clamp			2.8kg	Electro-Galv.
Formwork clamp-Universal Lock Clamp		120mm	4.3	Electro-Galv.
Steel cone		DW15mm 75mm	0.32kg	Black/Electro-Galv.
Formwork Spring clamp		105x69mm	0.31	Electro-Galv./Painted
Flat Tie		18.5mmx150L		Self-finished
Flat Tie		18.5mmx200L		Self-finished
Flat Tie		18.5mmx300L		Self-finished
Flat Tie		18.5mmx600L		Self-finished
Wedge Pin		79mm	0.28	Black
Hook Small/Big				Painted silver
