Galvanized Scaffolding Prop with Pin Lock
Our Scaffolding Fork Head Jack is manufactured under strict in-house quality requirements, serving primarily European and American markets. Raw materials undergo steel grade testing, diameter, and thickness measurement before precision cutting by laser machine with a tolerance of just 0.5mm. All welding processes meet our factory standards—consistent depth, width, speed, and appearance—guaranteeing no faulty weld, false weld, spatter, or residue. The 4-pillar design (angle bar + base plate) ensures firm H-beam connection and system stability. Most customers purchase together with formwork. Packaging is done with steel pallets (or wood pallets upon request), and all goods are qualified for container loading.
Components Specification as following
| Name | Pipe Dia mm | Fork size mm | Surface Treatment | Raw materials | Customized |
| Fork Head | 38mm | 30x30x3x190mm, 145x235x6mm | Hot Dip Galv/Electro-Galv. | Q235 | Yes |
| For Head | 32mm | 30x30x3x190mm, 145x230x5mm | Black/Hot Dip Galv/Electro-Galv. | Q235/#45 steel | Yes |
Advantages
1. Superior Load-Bearing Capacity
Manufactured from high-strength steel that matches the material of scaffolding supports, ensuring consistent and reliable performance under heavy concrete loads.
2. Enhanced Stability & Safety

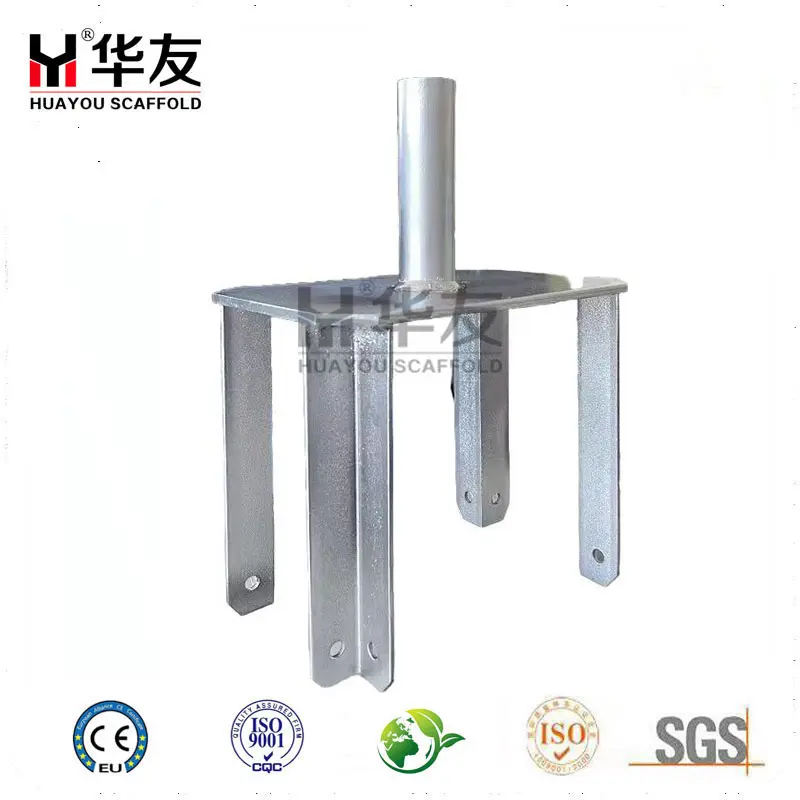

The unique 4-pillar design (angle bar + base plate) firmly connects H-beams to props, preventing component loosening and maintaining overall scaffolding system stability.
3. Quick & Easy Installation
Enables fast, tool-efficient assembly, significantly improving scaffolding erection efficiency and reducing labor time on site.
4. Secure Four-Corner Connection
The four-corner design increases joint firmness, effectively preventing shifting or detachment during use—critical for high-vibration or heavy-load applications.
5. Certified Construction Safety
Qualified fork heads meet relevant construction safety standards, providing a reliable guarantee for worker safety during concrete support operations.
Basic information
1.Brand: Huayou
2.Materials: Q235, Q195, Q355
3.Surface treatment: hot dipped galvanized , electro-galvanized
4.Production procedure: material---cut by size---punching hole---welding ---surface treatment
5.Package: by bundle with steel strip or by pallet
6.MOQ: 500 pcs
7.Delivery time: 20-30days depends on the quantity
FAQs
1. What is the main function of the 4-pillar fork head in a scaffolding system?
The fork head connects the H-beam to the scaffolding prop, supports formwork concrete, and ensures the overall stability of the scaffolding system.
2. What materials are these fork heads made of, and why?
They are usually made of high-strength steel, matching the material of scaffolding steel supports to provide excellent load-bearing capacity and durability.
3. How does the four-corner design improve scaffolding performance?
The four-corner design enhances connection firmness, effectively prevents component loosening during use, and improves overall structural safety.
4. Does the fork head help with assembly efficiency?
Yes, it enables easy and quick installation, which helps improve scaffolding assembly efficiency on construction sites.
5. Are these fork heads compliant with safety standards?
Qualified four-corner plugs meet relevant construction safety standards, providing a reliable guarantee for workers’ safe operation on the scaffolding.
