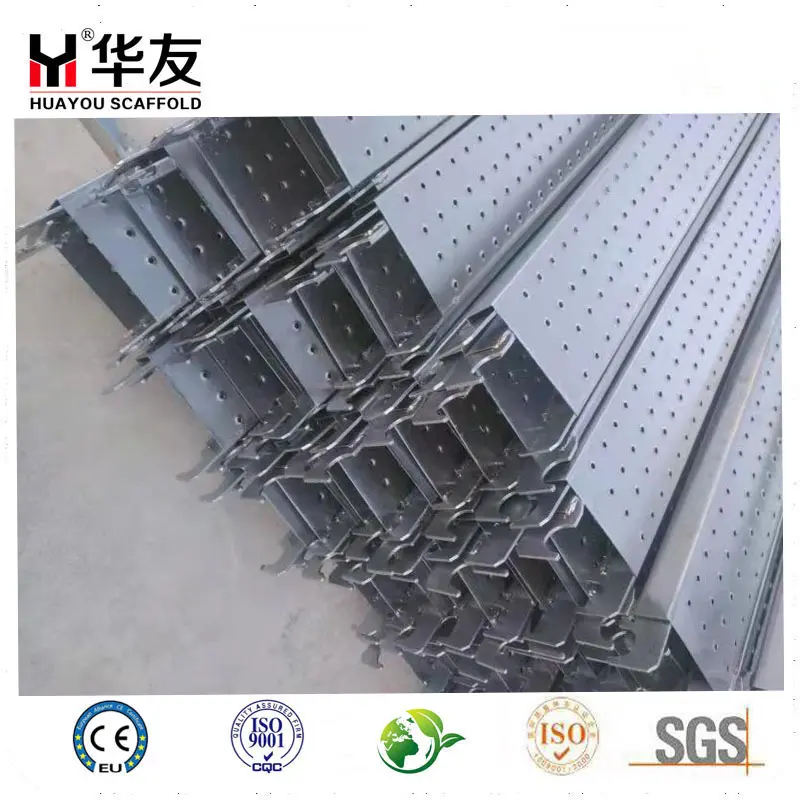

Hook Steel Plank Perforated Steel Scaffold Planks
Available in standard cross-sections of 420x45mm, 450x45mm, and 500x45mm, this decking component—commonly known as a catwalk—is purpose-built for frame scaffolding applications. Its integrated hooks simply engage with the horizontal ledgers, effectively spanning the void between two adjacent frames. This configuration creates an instant, secure walkway that greatly improves ease of movement and efficiency for onsite personnel.
Size as following
|
Item |
Width (mm) |
Height (mm) |
Thickness (mm) |
Length (mm) |
|
Scaffolding Plank with hooks |
200 |
50 |
1.0-2.0 |
Customized |
|
210 |
45 |
1.0-2.0 |
Customized |
|
|
240 |
45 |
1.0-2.0 |
Customized |
|
|
250 |
50 |
1.0-2.0 |
Customized |
|
|
260 |
60/70 |
1.4-2.0 |
Customized |
|
|
300 |
50 |
1.2-2.0 | Customized | |
|
318 |
50 |
1.4-2.0 | Customized | |
|
400 |
50 |
1.0-2.0 | Customized | |
|
420 |
45 |
1.0-2.0 | Customized | |
|
480 |
45 |
1.0-2.0 |
Customized |
|
|
500 |
50 |
1.0-2.0 |
Customized |
|
|
600 |
50 |
1.4-2.0 |
Customized |
Advantages
1.The efficient and convenient bridging design significantly enhances work efficiency.
Using standardized section specifications of 420x45mm, 450x45mm and 500x45mm, the product comes with an integrated molded hook that can be directly attached to the crossbars of the frame scaffolding. This "ready-to-use" bridging structure can quickly form a stable passage between adjacent frames, without the need for additional fixings, significantly simplifying the setup process. Workers walking on it are more stable and smooth, effectively reducing the loss of working time due to unstable steps, and significantly improving the overall construction efficiency on site.
2. Multi-functional design, compatible with various scaffolding systems
This product is not only specially designed for frame-type scaffolding systems, serving as the bridge steps connecting two frames, but also can be flexibly applied in modular scaffolding tower systems as a construction platform for workers to stand and work. Whether it is the large-scale construction of exterior wall frames or the local mobile tower scaffolding climbing, this hooked platform board can handle the task and fully demonstrate its practical value of cross-system compatibility.
3. Mature customized production capacity to meet the diverse demands of the global market
Relying on a mature steel platform production line, we not only provide standard-sized products stably to major markets such as Asia and South America, but also possess flexible customized manufacturing capabilities. Customers only need to provide their own design drawings or detailed size requirements, and they can achieve on-demand production. In addition, we also export platform accessories and attachments to overseas manufacturing enterprises. From finished product supply to component matching, we fully respond to customers' personalized purchasing needs. Just inform us of your specific requirements, and we can deliver precisely.
Basic information
1.Brand: Huayou
2.Materials: Q195, Q235 steel
3.Surface treatment: hot dipped galvanized , pre-galvanized
4.Package: by bundle with steel strip
5.MOQ: 15Ton
6.Delivery time: 20-30days depends on the quantity
FAQs
1.Q: What are the standard dimensions of the hook-on steel planks, and why are they sometimes called a catwalk?
A: Our standard hook-on steel planks are manufactured in three primary cross-sectional dimensions: 420x45mm, 450x45mm, and 500x45mm. The term "catwalk" is a widely used industry nickname for this type of decking component because it serves as an elevated walkway, effectively bridging the gap between two parallel scaffold frames. Once the integrated hooks engage with the horizontal ledgers, the plank creates a secure and continuous passage, making it significantly easier and safer for personnel to move across the structure.
2.Q: What types of scaffolding systems and markets are these steel planks with hooks suitable for?
A: These planks are predominantly supplied to construction markets across Asia and South America. They are specifically designed for seamless integration with frame scaffolding systems, where the hooks rest directly on the frame ledgers to form a stable bridge. Beyond traditional frame setups, these same catwalk planks are also ideal for constructing secure work platforms and decking levels within modular scaffolding towers, providing a versatile staging area for workers at height.
3.Q: Can you produce custom-sized planks or supply components based on our own drawings and designs?
A: Absolutely. We have established a fully mature and streamlined production line for scaffolding planks. If you possess proprietary designs or detailed dimensional drawings, we can manufacture planks to your exact specifications. Furthermore, we support overseas manufacturing partners by exporting plank accessories and component parts. Our commitment is comprehensive: simply communicate your requirements, and we will execute the production to meet your complete satisfaction. Tell us what you need, and we will make it happen.
