Short Description:

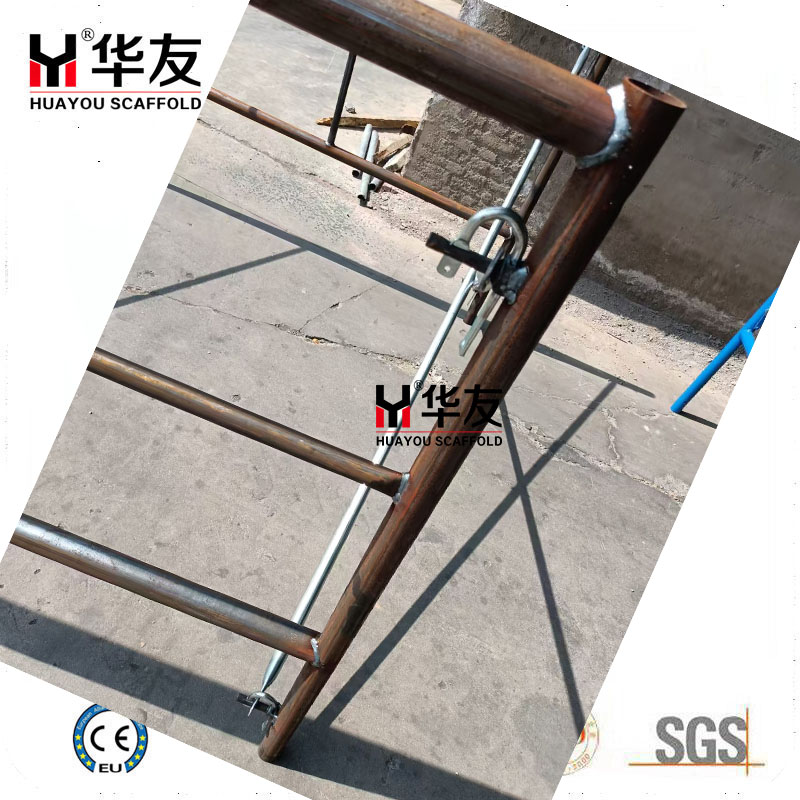

Ladder Frame also named H frame that is one of most famous frame scaffolding in American markets and Latin American markets. Frame scaffolding include Frame, cross brace, base jack, u head jack, plank with hooks, joint pin, staircase etc.

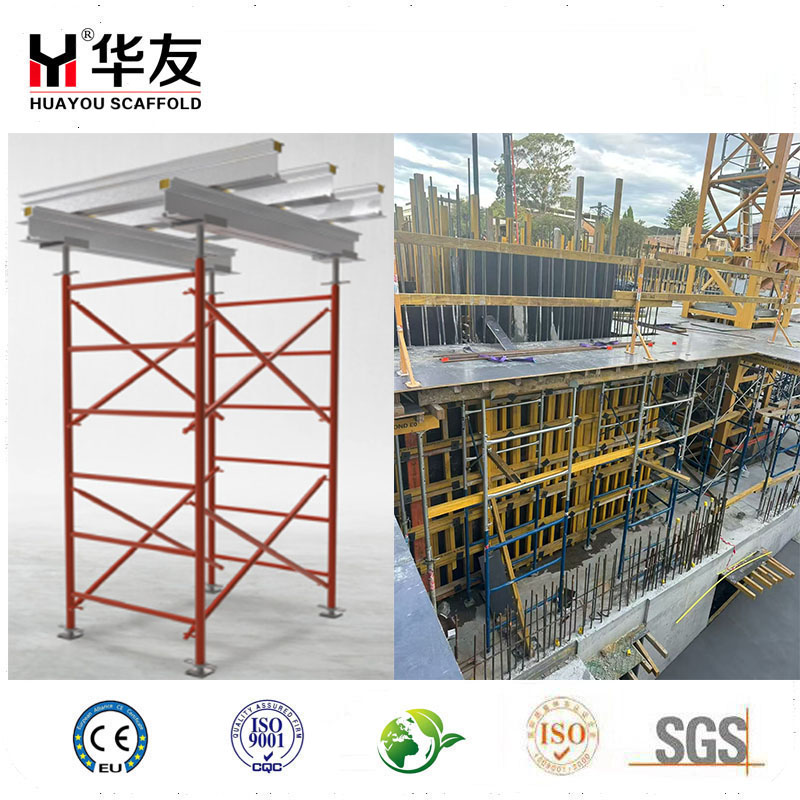

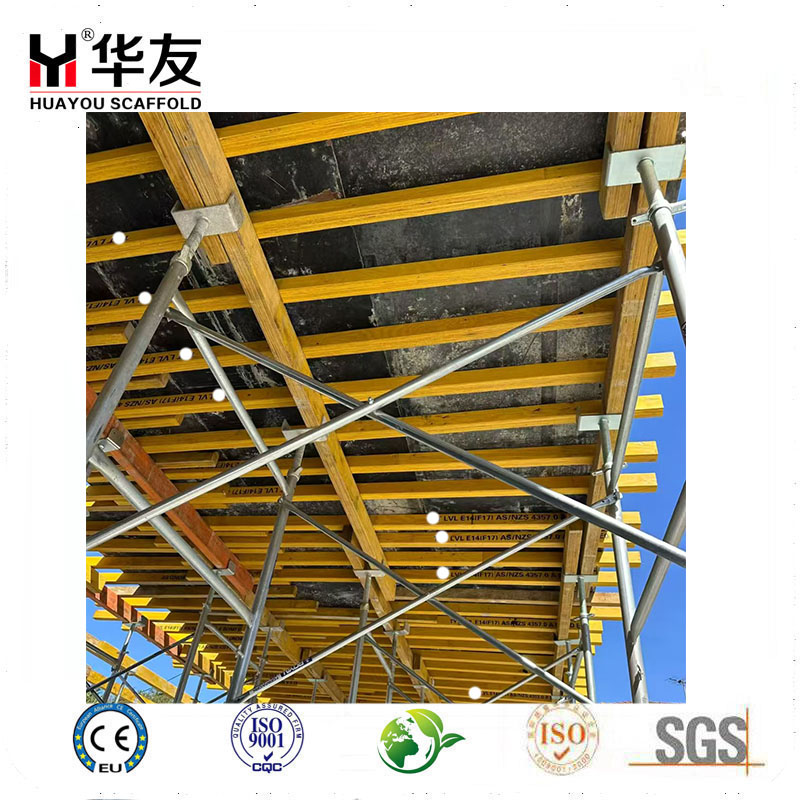

Ladder frame mainly use to support workers for building service or maintainance. Some projects also use heavy ladder frame to support H beam and formwork for concrete.

Until now, we can produce all types frame base on customers’ requirements and drawing details and established one complete processing and production chain to meet different markets.


  • Raw materials: Q195/Q235/Q355
  • Surface Treatment: Painted/Powder coated/Pre-Galv./Hot Dip Galv.
  • MOQ: 100pcs
  • Diameter: 42mm/48mm/60mm

    • Product Detail

    Product Tags

    Company Introduction

    Tianjin Huayou Scaffolding Co., Ltd is located in Tianjin City, which is the largest manufacturing base of steel and scaffolding products. Furthermore, it is a port city that easier to transport cargo to every port all over the world.
    We specialize in the production and sales of various scaffolding products, Frame Scaffolding system are one of most famous scaffolding systems used in the world. Until now, we already supplied many types of scaffolding frame, Main frame, H frame, ladder frame, walk through frame, mason frame, snap on lock frame, flip lock frame, fast lock frame, vanguard lock frame etc.
    And all different surface treatment, Powder coated, pre-galv., hot dip galv. etc. Raw materials steel grade, Q195, Q235, Q355 etc.
    Currently, our products are export to many countries that from South East Asia region, Middle East Market and Europe, America, etc.
    Our principle: "Quality First, Customer Foremost and Service Ultmost." We devote ourselves to meet your
    requirements and promote our mutually beneficial cooperation.

    Scaffolding Frames

    1. H Frame / Ladder Frame / Support Frame Specification

    Name Size (W+H) mm  Main Tube Dia mm  Other Tube Dia mm steel grade surface treatment Customized
    H Frame/Ladder Frame 1219x1930 42.7mm/48.3mm 25.4mm/42.7mm/48.3mm Q195/Q235/Q355 Painted/Pre-Galv./Powder Coated/Hot Dip Galv Yes
    762x1930 42.7mm/48.3mm 25.4mm/42.7mm/48.3mm Q195/Q235/Q355 Painted/Pre-Galv./Powder Coated/Hot Dip Galv Yes
    1524x1930 42.7mm/48.3mm 25.4mm/42.7mm/48.3mm Q195/Q235/Q355 Painted/Pre-Galv./Powder Coated/Hot Dip Galv Yes
    1219x1700 42.7mm/48.3mm 25.4mm/42.7mm/48.3mm Q195/Q235/Q355 Painted/Pre-Galv./Powder Coated/Hot Dip Galv Yes
    950x1700 42.7mm/48.3mm 25.4mm/42.7mm/48.3mm Q195/Q235/Q355 Painted/Pre-Galv./Powder Coated/Hot Dip Galv Yes
    1219x1219 42.7mm/48.3mm 25.4mm/42.7mm/48.3mm Q195/Q235/Q355 Painted/Pre-Galv./Powder Coated/Hot Dip Galv Yes
    1524x1219 42.7mm/48.3mm 25.4mm/42.7mm/48.3mm Q195/Q235/Q355 Painted/Pre-Galv./Powder Coated/Hot Dip Galv Yes
    1219x914 42.7mm/48.3mm 25.4mm/42.7mm/48.3mm Q195/Q235/Q355 Painted/Pre-Galv./Powder Coated/Hot Dip Galv Yes
    Support Frame 1220x1830 48.3mm/50mm/60.3mm 48.3mm/50mm/60.3mm Q235/Q355 Painted/Powder Coated/Hot Dip Galv Yes
    1220x1520 48.3mm/50mm/60.3mm 48.3mm/50mm/60.3mm Q235/Q355 Painted/Powder Coated/Hot Dip Galv Yes
    910x1220 48.3mm/50mm/60.3mm 48.3mm/50mm/60.3mm Q235/Q355 Painted/Powder Coated/Hot Dip Galv Yes
    1150x1200 48.3mm/50mm/60.3mm 48.3mm/50mm/60.3mm Q235/Q355 Painted/Powder Coated/Hot Dip Galv Yes
    1150x1800 48.3mm/50mm/60.3mm 48.3mm/50mm/60.3mm Q235/Q355 Painted/Powder Coated/Hot Dip Galv Yes
    1150x2000 48.3mm/50mm/60.3mm 48.3mm/50mm/60.3mm Q235/Q355 Painted/Powder Coated/Hot Dip Galv Yes
    Cross Brace 1829x1219x2198 21mm/22.7mm/25.4mm Q195-Q235 Painted/Pre-Galv./Powder Coated/Hot Dip Galv Yes
    1829x914x2045 21mm/22.7mm/25.4mm Q195-Q235 Painted/Pre-Galv./Powder Coated/Hot Dip Galv Yes
    1928x610x1928 21mm/22.7mm/25.4mm Q195-Q235 Painted/Pre-Galv./Powder Coated/Hot Dip Galv Yes
    1219x1219x1724 21mm/22.7mm/25.4mm Q195-Q235 Painted/Pre-Galv./Powder Coated/Hot Dip Galv Yes
    1219x610x1363 21mm/22.7mm/25.4mm Q195-Q235 Painted/Pre-Galv./Powder Coated/Hot Dip Galv Yes
    1400x1800x2053.5 26.5mm Q235 Painted/Pre-Galv./Powder Coated/Hot Dip Galv Yes
    765x1800x1683.5 26.5mm Q235 Painted/Pre-Galv./Powder Coated/Hot Dip Galv Yes
    Joint Pin 35mmx210mm/225mm Q195/Q235 Pre-Galv. Yes
    36mmx210mm/225mm Q195/Q235 Pre-Galv. Yes
    38mmx250mm/270mm Q195/Q235 Pre-Galv./Hot Dip Galv. Yes

    2. Catwalk / Plank with Hooks

    Catwalk as a platform of frame system can support workers to make building, maintaince or repair. Normally, will use hooks to fix between frames.

    We can produce or customized catwalk base on customers' requirements. Width, thickness and length all can be changed.

    Name Size Width mm Length mm Surface Treatment Steel Grade Customized
    Catwalk/ PLank with Hooks 240mm/480mm 1000mm/1800mm/1829mm/2000mm Pre-Galv./Painted/Powder coated/Hot Dip Galv. Q195/Q235 Yes
    250mm/500mm 1000mm/1800mm/1829mm/2000mm Pre-Galv./Painted/Powder coated/Hot Dip Galv. Q195/Q235 Yes
    300mm/600mm 1000mm/1800mm/1829mm/2000mm Pre-Galv./Painted/Powder coated/Hot Dip Galv. Q195/Q235 Yes
    350mm/360mm/400mm 1000mm/1800mm/1829mm/2000mm  Pre-Galv./Painted/Powder coated/Hot Dip Galv.  Q195/Q235  Yes

    3. Jack Base and U Jack

    Name Dia mm Length mm Steel Plate Surface Treatment Customized
    Base Jack Solid 28mm/30mm/32mm/34mm/35mm/38mm 350mm/500mm/600mm/750mm/1000mm 120x120mm/140x140mm/150x150mm Painted/Electro-Galv./Hot Dip Galv. Yes
    Base Jack Hollow 34mm/38mm/48mm 350mm/500mm/600mm/750mm/1000mm 120x120mm/140x140mm/150x150mm Painted/Electro-Galv./Hot Dip Galv. Yes
    U Head Jack Solid 28mm/30mm/32mm/34mm/35mm/38mm 350mm/500mm/600mm/750mm/1000mm 150x120x50mm/120x80x40mm/200x170x80mm Painted/Electro-Galv./Hot Dip Galv. Yes
    U Head Jack Hollow 34mm/38mm/48mm 350mm/500mm/600mm/750mm/1000mm 150x120x50mm/120x80x40mm/200x170x80mm Painted/Electro-Galv./Hot Dip Galv. Yes

    4. Castor Wheel

    For frame wheel, there are so many types for choosing.

    We can produce almost scaffolding wheel base on customers' requirements.

    Name Size mm inch Material Loading Capacity
    Wheel 150mm/200mm 6’’/8’’ Rubber+steel/PVC+steel 350kg/500kg/700kg/1000kg
