MS1462 Galvanised Scaffold Tubes for Construction

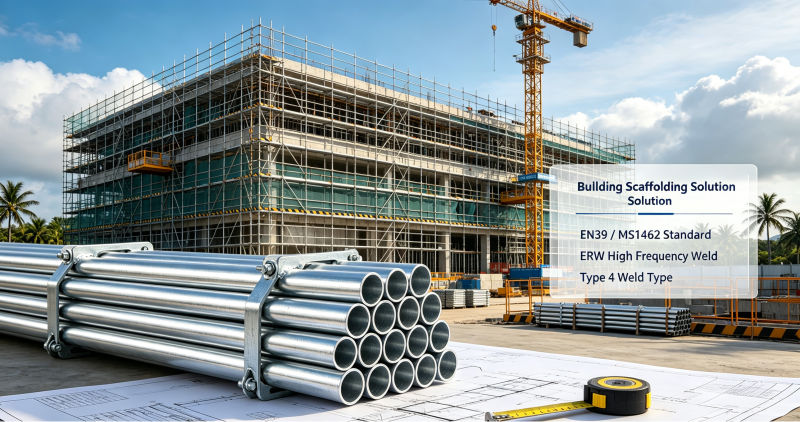

MS1462 Galvanised Scaffold Tubes are designed for construction and scaffolding applications, particularly for projects in Malaysia. Manufactured from structural steel and hot-dip galvanized, the tubes provide reliable strength, durability, and corrosion resistance for demanding construction environments.
Huayou Scaffolding Co., Ltd. is a professional scaffolding pipes manufacturer and Scaffolding Pipe Manufacturer & Supplier, providing reliable scaffold tube solutions for construction projects worldwide. Our Galvanised Scaffolding Pipe 48mm is suitable for various scaffolding systems, temporary structures, and construction support applications.
With professional manufacturing capabilities and strict quality control, Huayou supplies dependable galvanized scaffolding products for contractors, distributors, and construction companies. Custom cutting and other services are available to meet different project requirements.
MS1462 Galvanised Steel Tube Specifications
| Code | Component | Grade | Dimension | PC No. |
| 1 | Galvanised Steel Tube Welded, Type 4 |
S235GT | Φ48.3mm x(T)4.0mm x(L)0.5m | 918006 |
| 2 | Φ48.3mm x(T)4.0mm x(L)1.0m | |||
| 3 | Φ48.3mm x(T)4.0mm x(L)1.5m | |||
| 4 | Φ48.3mm x(T)4.0mm x(L)2.0m | |||
| 5 | Φ48.3mm x(T)4.0mm x(L)2.5m | |||
| 6 | Φ48.3mm x(T)4.0mm x(L)3.0m | |||
| 7 | Φ48.3mm x(T)4.0mm x(L)3.5m | |||
| 8 | Φ48.3mm x(T)4.0mm x(L)4.0m | |||
| 9 | Φ48.3mm x(T)4.0mm x(L)4.5m | |||
| 10 | Φ48.3mm x(T)4.0mm x(L)5.0m | |||
| 11 | Φ48.3mm x(T)4.0mm x(L)5.5m | |||
| 12 | Φ48.3mm x(T)4.0mm x(L)6.0m |
Special Configuration and Application
MS1462 Galvanised Scaffold Tubes are primarily designed for tubular scaffolding systems. These hot dip galvanized scaffolding pipes offer reliable durability and corrosion resistance for a variety of construction and maintenance applications:
- External Scaffolding: Suitable for residential, commercial, and high-rise building projects.

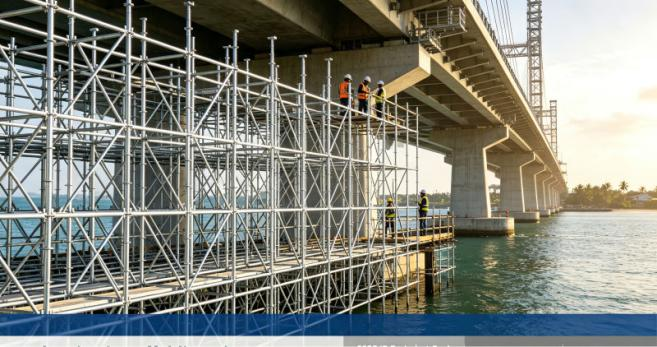

- Bridge & Tunnel Projects: Used for temporary working platforms, access structures, and construction support.
- Industrial Plant Maintenance: Suitable for maintenance, inspection, and repair work in industrial facilities.
- Temporary Structures: Used to build temporary working platforms and access structures for construction and other projects.
For safe and stable scaffolding assembly, the tubes can be used with compatible couplers and fittings complying with EN 74, helping create secure and efficient working platforms.
Quality Control
Huayou Scaffolding Co., Ltd. applies quality control throughout the manufacturing process, from raw material inspection to finished product delivery.
- ISO 9001 Quality Management: Quality management procedures are applied throughout production.
- Material Inspection: Raw materials are checked to ensure they meet the required specifications.
- Dimensional Inspection: Tube diameter, wall thickness, length, and other key dimensions are checked.
- Galvanizing Inspection: Coating thickness and surface quality are inspected for consistency.
- Final Inspection: Finished tubes undergo appearance and dimensional checks before shipment.
Huayou is a professional scaffolding pipes manufacturer supplying MS1462 Galvanised Scaffold Tubes for construction, maintenance, and tubular scaffolding applications worldwide.
