Pressed Double Coupler Scaffolding Clamp

Short Description:

HuaYou pressed double coupler is a high-quality scaffolding fitting made from steel plates. Available in BS1139/EN74 and JIS 8951 standards and Korean type, it securely connects scaffold tubes at 90 degrees with reliable strength and durability.

Send email to us

Product Detail

Product Tags

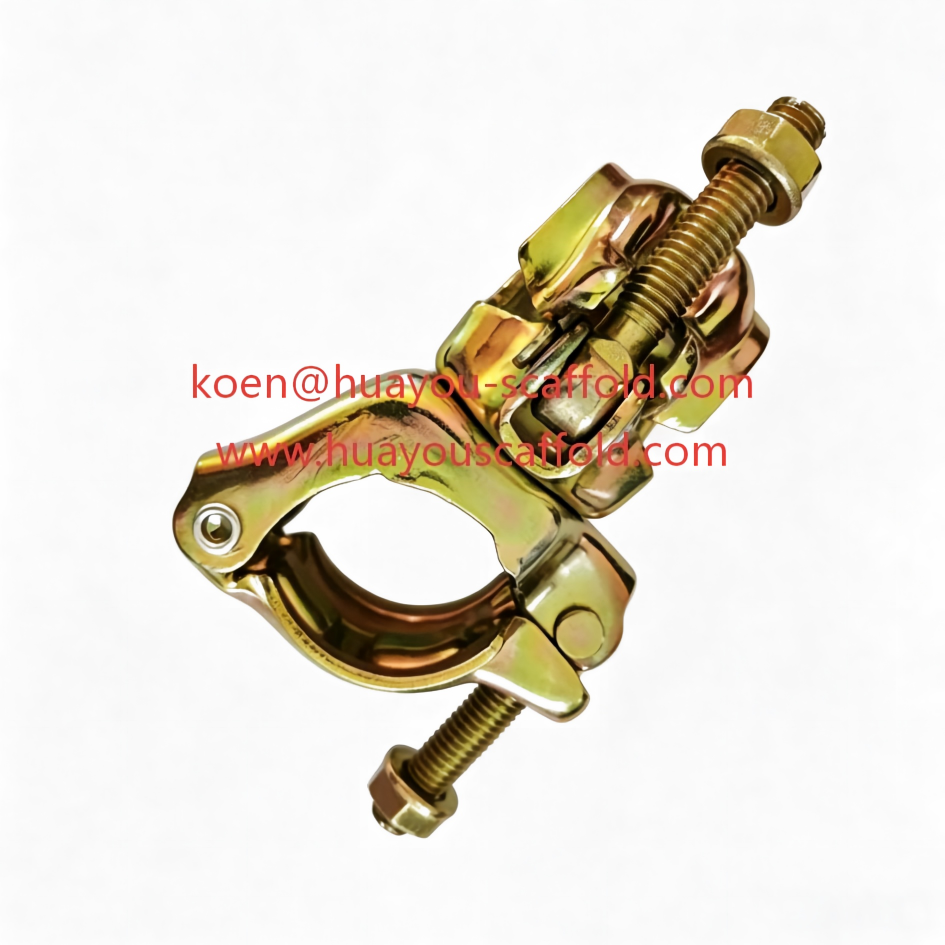

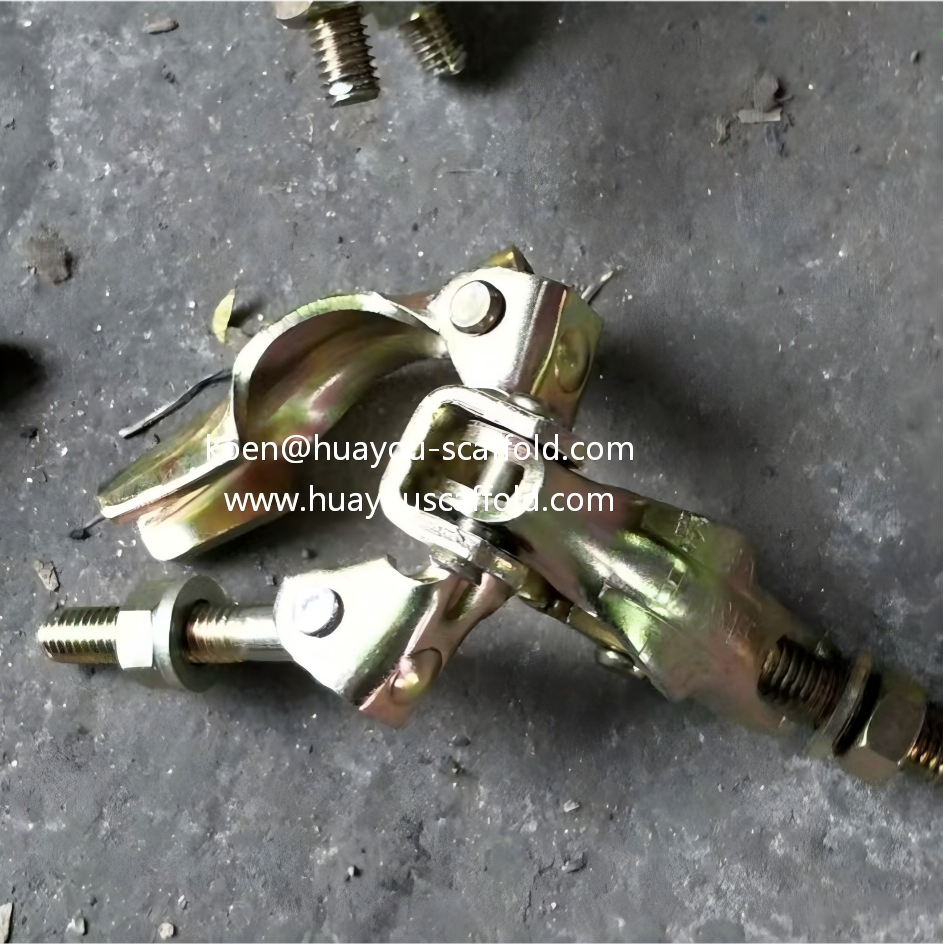

Pressed double coupler scaffolding, also known as the right angle double coupler, is a core type of high-performance pressed type scaffold fittings widely applied in standard tube and clamp scaffolding systems. Professionally engineered for construction connection needs, this scaffolding fitting firmly joins two scaffold tubes at a precise 90-degree right angle, delivering stable, safe and long-lasting structural connections for various building and infrastructure projects.

HuaYou offers two mainstream specifications of right angle double coupler to meet global market standards. The BS1139/EN74 compliant model fits 48.3mm outer diameter scaffold tubes, ideal for European and British standard scaffolding systems. The JIS 8951 standard version matches 48.6mm pipes, catering to the installation requirements of Southeast Asian and Japanese construction projects.

All HuaYou pressed type scaffold fittings undergo strict quality inspection and professional anti-corrosion surface treatment to resist rust, wear and harsh outdoor working conditions. Suitable for building construction, industrial maintenance, offshore engineering and municipal infrastructure, HuaYou pressed double coupler scaffolding provides durable and cost-effective connection solutions for global scaffolding projects, supporting customized processing to meet diverse client demands.

Technical Specifications of HuaYou Pressed Double Coupler

Item	BS1139 / EN74 Pressed Double Coupler	JIS 8951 Pressed Double Coupler
Product Type	Pressed Double Coupler	Pressed Double Coupler
Standard	BS1139 / EN74	JIS A 8951
Application	British Type Scaffold System	Japanese Type Scaffold System
Tube Diameter	OD 48.3mm	OD 48.6mm
Material	High Strength Steel Plate	High Strength Steel Plate
Manufacturing Process	Press Forming	Press Forming
Connection Angle	90° Fixed Connection	90° Fixed Connection

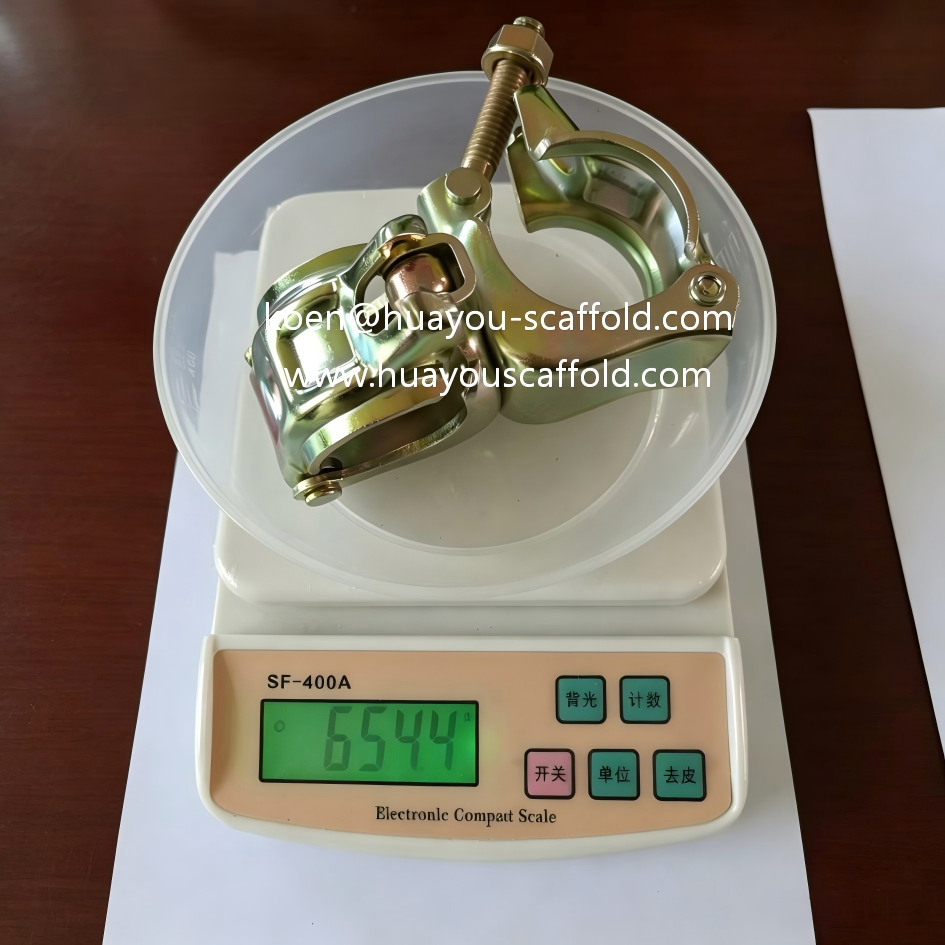

Weight	Approx. 0.85kg	Approx. 0.65kg
Bolt Grade	Grade 8.8 Available	Grade 8.8 Available
Surface Treatment	Electro Galvanized / Hot Dip Galvanized	Electro Galvanized / Hot Dip Galvanized
Color	Silver / Golden / Customized	Silver / Golden / Customized
OEM Service	Available	Available

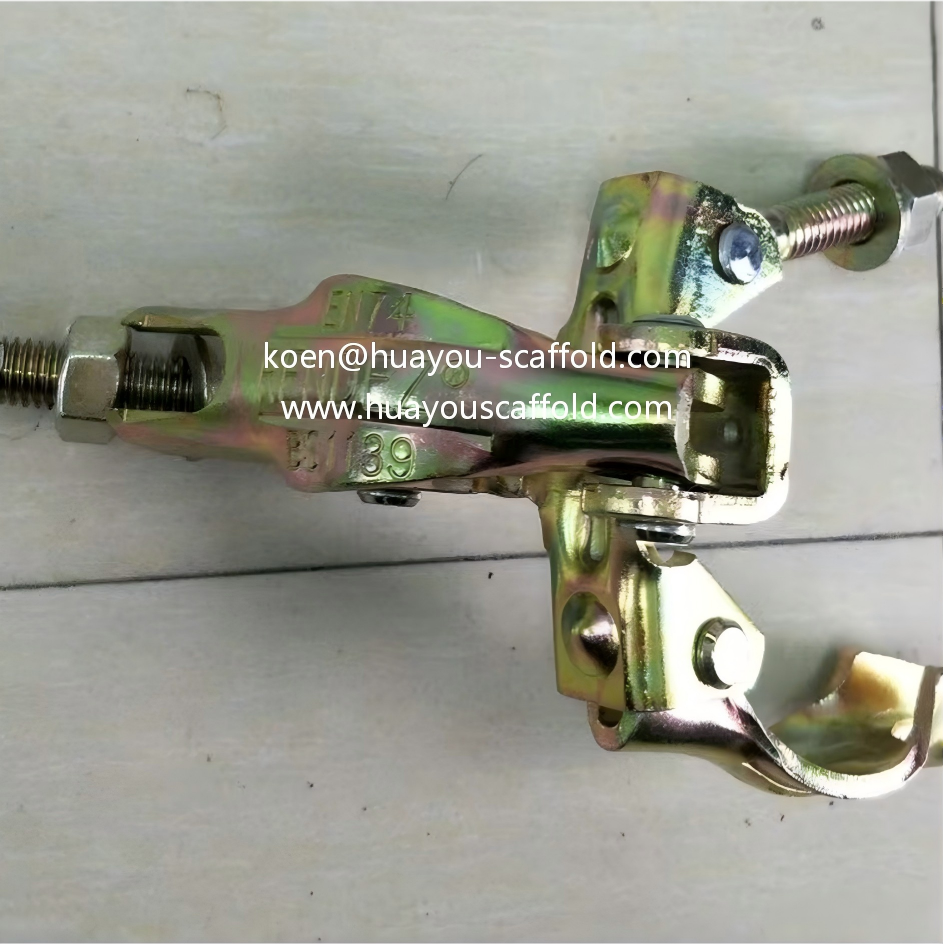

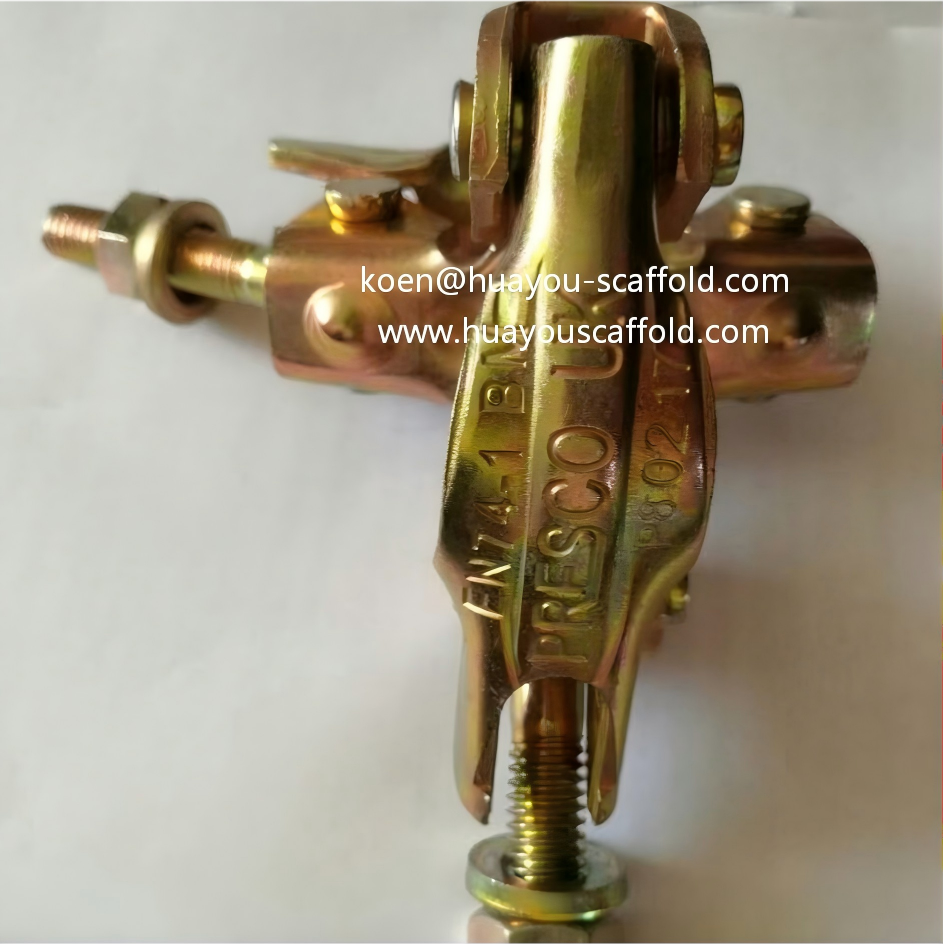

BS1139 / EN74 Pressed Double Coupler

Standard: BS1139 / EN74

Type: British Standard Right Angle Coupler

Application: Tube & Clamp Scaffolding System

Features:

1.Designed for OD 48.3mm scaffold tubes
2.Manufactured from high-strength steel plates
3.Suitable for standard scaffold tube connection at 90 degrees
4.Available with zinc plated or hot-dip galvanized finish
5.Used widely in construction and industrial scaffolding projects

JIS 8951 Pressed Double Coupler

Standard: JIS A 8951
Type: Japanese Standard Fixed Clamp
Application: JIS scaffolding pipe systems

Features:

1.Designed for OD 48.6mm scaffolding pipes
2.Lightweight pressed steel construction
3.Suitable for Japanese standard scaffolding systems
4.Excellent pipe fixing performance
5.Ideal for Asian construction markets

Advantages of HuaYou Right Angle Double Coupler

1. High Strength Steel Plate Construction

HuaYou pressed double couplers are manufactured from high-quality steel plates through precision pressing technology. The optimized structure provides stable clamping force and reliable connection performance during scaffolding installation.

2. Accurate 90-Degree Tube Connection

Designed as a rigid right-angle coupler, the pressed double coupler securely fixes two scaffold tubes at 90 degrees. This helps maintain scaffolding stability and improves the overall safety of tube-and-clamp scaffold structures.

3. Available for Different International Standards

HuaYou supplies pressed double couplers according to different market requirements, including BS1139/EN74 British standards and JIS 8951 Japanese standards. Customers can select suitable couplers according to their local scaffolding systems.

4. Lightweight and Easy Installation

Compared with forged double couplers, pressed double couplers feature a lighter structure, making transportation, installation, and dismantling more efficient. They are suitable for projects requiring frequent scaffold assembly and removal.

5. Excellent Corrosion Resistance

HuaYou pressed double couplers are available with electro galvanizing and hot-dip galvanizing finishes. The galvanized surface improves corrosion resistance and extends service life in outdoor construction environments.

6. Customized Manufacturing Capability

HuaYou can provide customized pressed couplers according to different scaffold tube sizes, standards, surface finishes, packaging requirements, and customer specifications.

Why Choose HuaYou Pressed Double Coupler?

HuaYou is a professional scaffolding fitting manufacturer specializing in high-quality steel scaffolding components. With advanced manufacturing technology, strict quality control, and years of industry experience, HuaYou supplies reliable scaffold pressed double coupler solutions that meet international scaffolding standards.

Designed as a durable right-angle coupler, HuaYou pressed double coupler scaffolding products provide secure connections between scaffold tubes, ensuring excellent stability and safety for various construction applications.

Whether you need BS1139/EN74 pressed double couplers for British scaffold systems or JIS 8951 pressed double couplers for Japanese standard pipes, HuaYou offers stable quality, competitive pricing, and customized solutions for global scaffolding contractors and distributors.
