Putlog Coupler/ Single Coupler

Short Description:

A scaffolding putlog coupler, as per BS1139 and EN74 standard, it is designed to connect a transom (horizontal tube ) to a ledger (horizontal tube parallel to the building) , providing support for scaffold boards. They are typically made from forged steel Q235 for coupler cap, pressed steel Q235 for coupler body, ensuring durability and complaince with safety standards.

FOB Price: US $0.5 - 9,999 / Piece

Min.Order Quantity: 100 Piece/Pieces

Supply Ability: 10000 Piece/Pieces per Month

Spring of jiangbulake: 123456

sds: rwrrwr

Surface Treatment: Hot Dip Galv./Electro-Galv.

Raw Materials: Q235/Q355

Dia: 48.3mm

Send email to us

Product Detail

Product Tags

Company Introduction

Tianjin Huayou Scaffolding Co., Ltd is located in Tianjin City, which is the largest manufacturing base of steel and scaffolding products. Furthermore, it is a port city that easier to transport cargo to every port all over the world.

We specialize in the production and sales of various scaffolding products, such as ringlock system, steel board, frame system, shoring prop, adjustable jack base, scaffolding pipes and fittings, couplers, cuplock system, kwickstage system, Aluminuim scaffolding system and other scaffolding or formwork accessories. Currently, our products are export to many countries that from South East Asia region, Middle East Market and Europe, America, etc.

Our principle: "Quality First, Customer Foremost and Service Ultmost." We devote ourselves to meet your

requirements and promote our mutually beneficial cooperation.

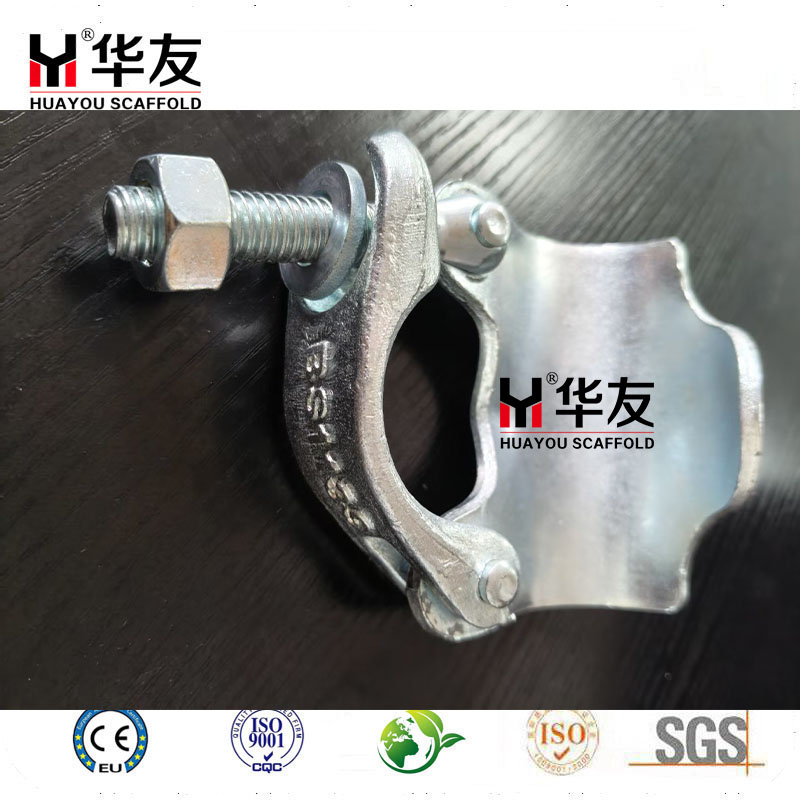

Scaffolding Putlog Coupler

1. BS1139/EN74 Standard

Commodity	Type	Specification mm	Normal Weight g	Customized	Raw Material	Surface treatment
Putlog coupler	Pressed	48.3mm	580g	yes	Q235/Q355	Electro-Galvanized/ hot dip Galvanized
Putlog coupler	Forged	48.3	610g	yes	Q235/Q355	electro-Galv./Hot dip Galv.

2. Key Features

Materials: Manufactured from high-strength drop forged steel.

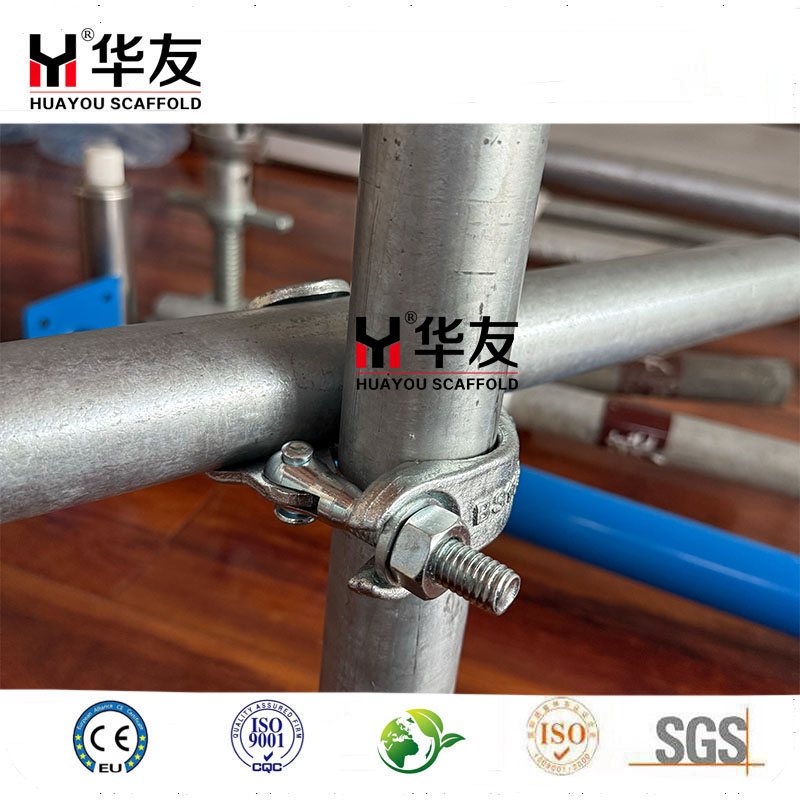

Design: Features a single jaw that clamps onto the ledger or putlog , while the other end is fixed to the vertical pipe.
Application: Primarily used in single-pole scaffolding systems.
Complaince: Meets BS1139 AND EN74 Standard.

Other Types Couplers

3. BS1139/EN74 Standard Drop Forged scaffolding Couplers and Fittings

Commodity	Specification mm	Normal Weight g	Customized	Raw Material	Surface treatment
Double/Fixed coupler	48.3x48.3mm	980g	yes	Q235/Q355	eletro Galvanized/ hot dip Galvanized
Double/Fixed coupler	48.3x60.5mm	1260g	yes	Q235/Q355	eletro Galvanized/ hot dip Galvanized
Swivel coupler	48.3x48.3mm	1130g	yes	Q235/Q355	eletro Galvanized/ hot dip Galvanized
Swivel coupler	48.3x60.5mm	1380g	yes	Q235/Q355	eletro Galvanized/ hot dip Galvanized
Putlog coupler	48.3mm	630g	yes	Q235/Q355	eletro Galvanized/ hot dip Galvanized
Board retaining coupler	48.3mm	620g	yes	Q235/Q355	eletro Galvanized/ hot dip Galvanized
Sleeve coupler	48.3x48.3mm	1000g	yes	Q235/Q355	eletro Galvanized/ hot dip Galvanized
Inner Joint Pin Coupler	48.3x48.3	1050g	yes	Q235/Q355	eletro Galvanized/ hot dip Galvanized
Beam/Girder Fixed Coupler	48.3mm	1500g	yes	Q235/Q355	eletro Galvanized/ hot dip Galvanized
Beam/Girder Swivel Coupler	48.3mm	1350g	yes	Q235/Q355	eletro Galvanized/ hot dip Galvanized

4. American Type Standard Drop Forged scaffolding Couplers and Fittings

Commodity	Specification mm	Normal Weight g	Customized	Raw Material	Surface treatment
Double coupler	48.3x48.3mm	1500g	yes	Q235/Q355	eletro Galvanized/ hot dip Galvanized
Swivel coupler	48.3x48.3mm	1710g	yes	Q235/Q355	eletro Galvanized/ hot dip Galvanized
