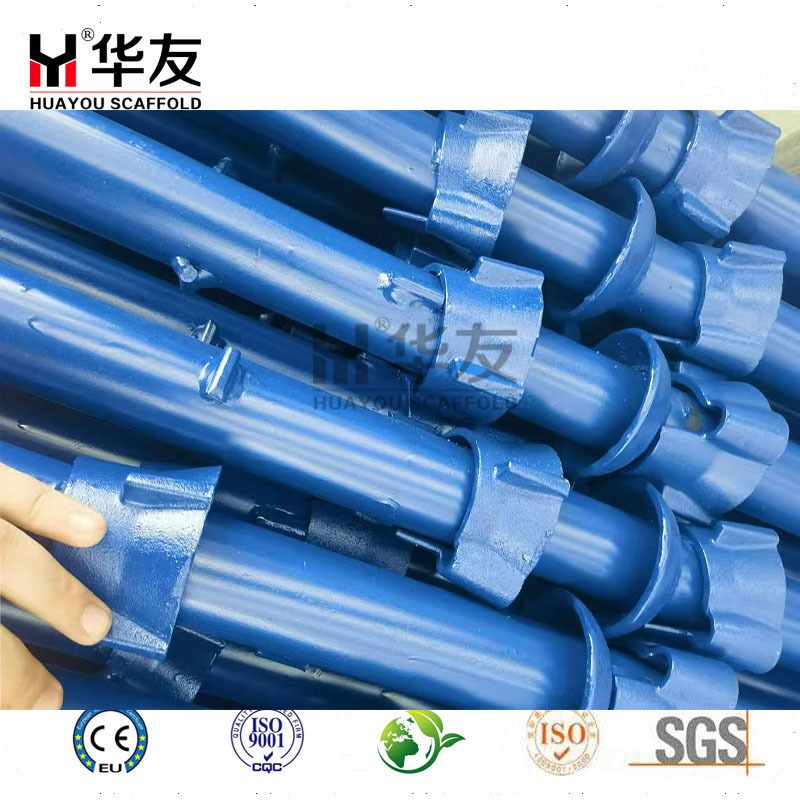

Reliable Scaffolding Legs And Locking System To Enhance Stability
Description
The Scaffolding Lock system is a globally leading modular scaffolding solution. It enables rapid assembly through its unique cup lock connection mechanism and combines high-strength Q235/Q355 steel pipe standard parts with flexible horizontal braces and diagonal braces components, ensuring construction safety and efficiency.
The system consists of core components such as vertical standard poles, horizontal post poles, diagonal supports and steel plate bases, supporting ground construction or high-altitude suspension operations, and is suitable for residential to large commercial projects.
The pressed/cast cutter head post rods and the socket-type standard rods form a stable interlocking structure. The 1.3-2.0mm thick steel plate platform can be customized to meet the load requirements, making it an ideal construction frame that combines stability and mobility.
Specification Details
|
Name |
Diameter (mm) |
thickness(mm) | Length (m) |
Steel Grade |
Spigot |
Surface Treatment |
|
Cuplock Standard |
48.3 |
2.5/2.75/3.0/3.2/4.0 |
1.0 |
Q235/Q355 |
Outer sleeve or Inner Joint |
Hot Dip Galv./Painted |
|
48.3 |
2.5/2.75/3.0/3.2/4.0 |
1.5 |
Q235/Q355 |
Outer sleeve or Inner Joint |
Hot Dip Galv./Painted |
|
|
48.3 |
2.5/2.75/3.0/3.2/4.0 |
2.0 |
Q235/Q355 |
Outer sleeve or Inner Joint |
Hot Dip Galv./Painted |
|
|
48.3 |
2.5/2.75/3.0/3.2/4.0 |
2.5 |
Q235/Q355 |
Outer sleeve or Inner Joint |
Hot Dip Galv./Painted |
|
|
48.3 |
2.5/2.75/3.0/3.2/4.0 |
3.0 |
Q235/Q355 |
Outer sleeve or Inner Joint |
Hot Dip Galv./Painted |
|
Name |
Diameter (mm) |
Thickness (mm) |
Steel Grade |
Brace Head |
Surface Treatment |
|
Cuplock Diagonal Brace |
48.3 |
2.0/2.3/2.5/2.75/3.0 |
Q235 |
Blade or Coupler |
Hot Dip Galv./Painted |
|
48.3 |
2.0/2.3/2.5/2.75/3.0 |
Q235 |
Blade or Coupler |
Hot Dip Galv./Painted |
|
|
48.3 |
2.0/2.3/2.5/2.75/3.0 |
Q235 |
Blade or Coupler |
Hot Dip Galv./Painted |
Advantages
1. Modular design, efficient and flexible
Adopt standardized vertical poles (standards) and horizontal bars (ledgers); The modular structure supports multiple configurations (fixed/rolling towers, suspended types, etc.)
2. Excellent stability and load-bearing capacity
The interlocking design of the cup lock ensures the firmness of the nodes, and the diagonal supports (diagonal braces) further enhance the overall stability, making it suitable for high-rise or large-span construction
3. Safe and reliable
High-strength materials (Q235/Q355 steel pipes) and standardized components (cast/forged tool heads, steel plate bases) ensure the durability of the structure and reduce the risk of collapse.
The stable platform design (such as steel planks and stairs) provides a safe working space and complies with the safety regulations for high-altitude operations.
Company Introduction
Huayou Company is a leading supplier specializing in modular scaffolding systems for scaffolding locks, dedicated to providing safe, efficient and multi-functional scaffolding solutions for the global construction industry. The scaffolding lock system is renowned for its innovative cup-shaped lock design and is widely used in high-rise buildings, commercial projects, industrial facilities, infrastructure and other fields.
