Ringlock Rosette Horizontal Formwork System
Basic Information

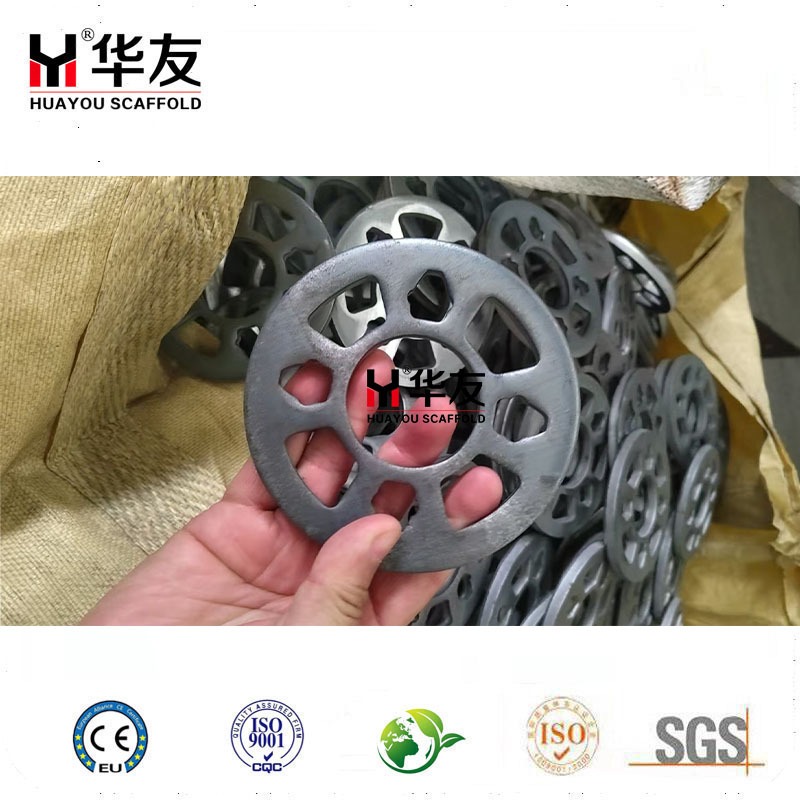

As a vital pressed component in the Ringlock scaffolding system, this circular rosette (often called a "ring") serves as the primary connection node. Manufactured for high load capacity, it comes in common outer diameters (OD) of 120mm, 122mm, and 124mm, with robust thickness options of 8mm, 9mm, and 10mm.

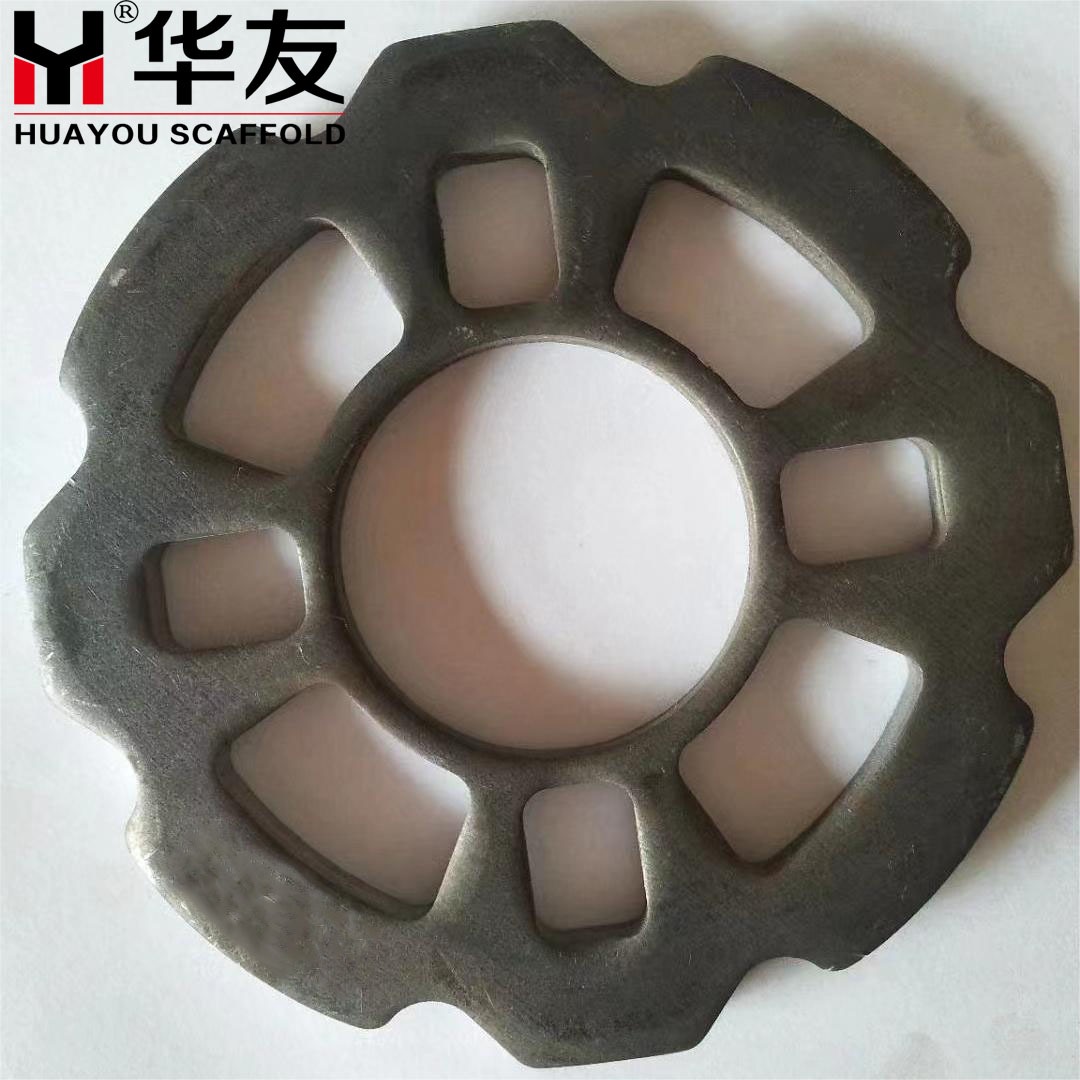

Precisely welded onto the vertical standard at 500mm intervals, each rosette features eight dedicated holes: four smaller ones for secure ledger attachment and four larger holes for diagonal brace connection, ensuring a rigid and stable framework.
|
Commodity |
Outer Diameter mm |
Thickness |
Steel Grade |
Customized |
|
Rosette |
120 |
8/9/10 |
Q235/Q355 |
Yes |
|
122 |
8/9/10 |
Q235/Q355 |
Yes |
|
|
124 |
8/9/10 |
Q235/Q355 |
Yes |
Advantages
1.Outstanding load-bearing performance
It is cast using high-strength steel, with thickness options of 8mm, 9mm, and 10mm. This ensures that the product has extremely high load-bearing capacity and structural stability, thereby guaranteeing construction safety.
2. Precise and standardized connection
8-hole standardized design (4 small holes for connecting the crossbar, 4 large holes for connecting the diagonal brace), enabling quick, precise and secure connection with the Ringlock system components, with high construction efficiency and strong overall system integrity.
3. Strict dimension specifications and compatibility
The main outer diameter specifications (OD 120/122/124mm) comply with international standards and are perfectly compatible with the mainstream Ringlock system components, ensuring interchangeability and overall assembly accuracy.
4. Optimized production processes and quality
As a professional ODM factory, we have advanced production lines and implement strict quality control throughout the process from raw materials to molding. Our products, renowned for their durability and reliability, are sold to the high-end markets in Europe and America, and have an excellent reputation.
5. Enhance the overall framework stability
Welded at a 500mm interval onto the upright poles, they form a rigid node system, significantly enhancing the overall lateral displacement resistance and stability of the scaffold frame.
6. Direct supply from the manufacturer, a choice of value
We adhere to the principle of "creating value and serving customers", offering highly competitive prices and ensuring long-term stable high-quality supply. We support customization, ensure timely delivery, and are committed to establishing mutually beneficial and long-term cooperative relationships.
Function Showing
FAQS
1.Q: What are the key specifications of your Ringlock Rosettes?
A: Our standard rosettes have outer diameters of 120mm, 122mm, and 124mm, with thicknesses of 8mm, 9mm, or 10mm. They feature 8 holes (4 small for ledgers, 4 larger for diagonal braces) and are designed for high load capacity.
2.Q: How is the Rosette attached to the Ringlock scaffolding system?
A: The rosette is a crucial pressed steel connector. It is welded onto the vertical standards (uprights) of the Ringlock system at precise 500mm intervals, forming the primary connection points for the entire structure.
3.Q: What guarantees the quality and strength of your Rosettes?
A: We manufacture using advanced machinery and strict quality control. Our rosettes are precision-pressed from high-grade steel, ensuring durability, high load capacity, and consistent performance that meets international standards.
4.Q: Do you support OEM/ODM services and bulk export?
A: Yes, as an experienced ODM factory in China, we specialize in customized solutions and bulk merchandise trade. We reliably export to markets like the USA, UK, and EU, ensuring timely delivery, competitive pricing, and transparent cooperation.
5.Q: What is your company's core commitment to customers?
A: Our motto is "Create Values, Serving Customer!" We are committed to delivering innovative design, lasting quality, and reliable on-time solutions. We aim to build long-term, mutually beneficial partnerships with all our clients.
