Scaffold Putlog Coupler | Forged & Pressed Types
The HuaYou scaffold putlog coupler is a compact scaffold fitting designed to connect a putlog, transom, or scaffold tube to another tube at a right angle. It is commonly used in traditional tube-and-coupler scaffolding where secure and accurate connections are required for supporting scaffold boards and forming working platforms.
HuaYou supplies both forged putlog coupler and pressed steel versions. The forged option is manufactured for higher mechanical strength and demanding applications, while the pressed type provides a cost-effective solution for general scaffolding projects.
Pressed Sleeve Coupler Specifications
| Item | Specification |
| Product Name | Scaffold Putlog Coupler |
| Model | WPCS1 / Customized |
| Main Type | Single Putlog Coupler |
| Available Types | Forged / Pressed |
| Suitable Tube OD | 48.3 mm |
| Connection Angle | 90° |
| Forged Single Coupler Weight | Approx. 0.60 kg |
| Pressed Single Putlog Coupler Weight | Approx. 0.65 kg |
| Forged Wrapover Putlog Coupler | Approx. 0.80 kg |
| Surface Treatment | Hot-Dip Galvanized / Zinc-Plated / Painted |
| Bolt & Nut Options | 21 mm / 22 mm / 23 mm |
| Material | Steel |
| Application | Tube and Coupler Scaffolding |
| Customization | Logo, marking, bolt and nut options |
Why Choose HuaYou Scaffold Putlog Coupler？
1. Secure 90° Tube Connection
The coupler is designed to connect a putlog or transom to a scaffold tube at 90 degrees, helping create stable working platforms and scaffold structures.
2. Forged and Pressed Options
HuaYou provides both forged single coupler and pressed steel configurations, allowing customers to select the appropriate manufacturing type according to load requirements and project budget.
3. Multiple Surface Finishes
Hot-dip galvanized, electro-galvanized and painted finishes are available to meet different corrosion protection and project requirements.
4. Compatible with 48.3 mm Scaffold Tubes
The coupler is designed for standard 48.3 mm scaffold tubes, making it suitable for conventional scaffold tube and fittings and Tube and Coupler System applications.
Available Putlog Coupler Types

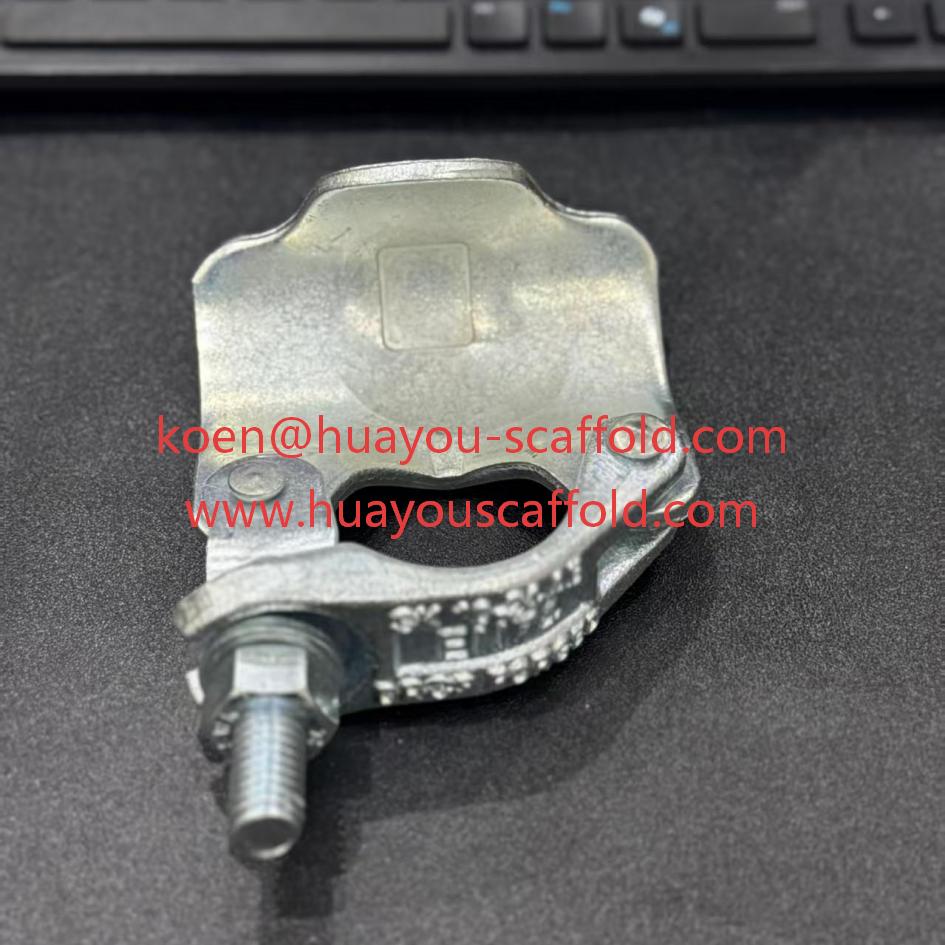

1. Forged Putlog Coupler
The forged putlog coupler is manufactured through a forging process to provide a strong and durable connection. It is suitable for scaffolding projects where reliable mechanical performance and repeated installation are important.
The forged construction gives the coupler a robust body while maintaining a compact profile around the scaffold tube.

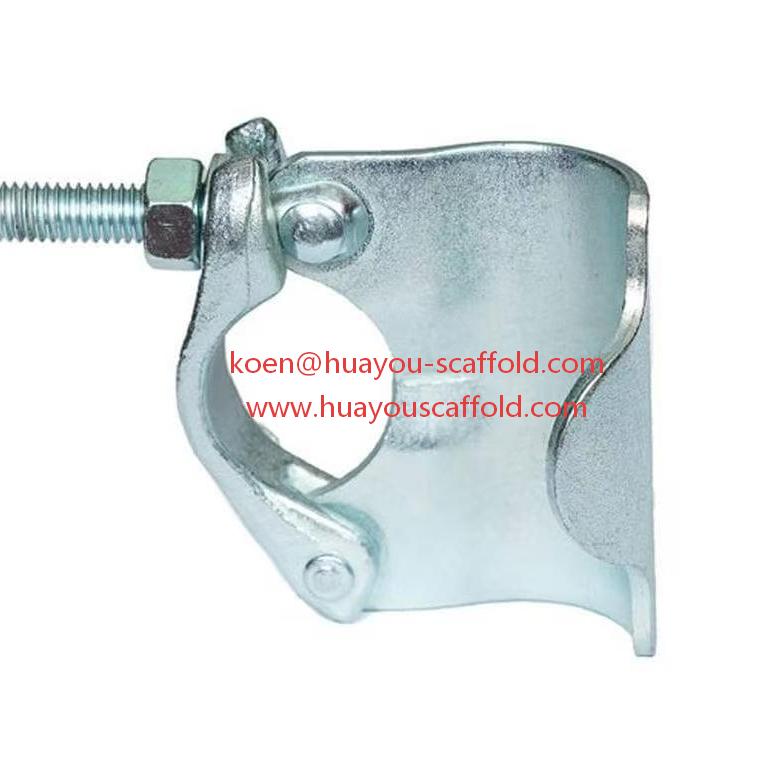

2. Pressed Putlog Coupler
The pressed version is formed from steel plate and provides a practical solution for standard tube-and-coupler scaffolding. It offers consistent dimensions and is suitable for general construction and access scaffolding applications.
3. Wrapover Putlog Coupler
The wrapover design provides an alternative configuration for connecting scaffold tubes and putlogs. HuaYou can supply forged versions according to project requirements.
FAQS
Q1:What is a scaffold putlog coupler?
A:A scaffold putlog coupler is a fitting used to connect a putlog, transom or scaffold tube to another scaffold tube, typically at a 90-degree angle. It is commonly used in tube-and-coupler scaffolding and working platforms.
Q2:What scaffold tube does the HuaYou putlog coupler fit?
A:The standard HuaYou putlog coupler is designed for 48.3 mm scaffold tubes. Other configurations can be discussed for specific project requirements.
Q3:What is the difference between a forged putlog coupler and a pressed putlog coupler?
A:A forged putlog coupler is manufactured through forging and generally offers a robust construction for demanding applications. A pressed putlog coupler is formed from steel plate and provides a cost-effective option for general scaffolding.
Q:Is the putlog coupler available with galvanized surface treatment?
A:Yes. HuaYou can supply hot-dip galvanized, electro-galvanized and painted putlog couplers. Hot-dip galvanizing is particularly suitable for applications requiring enhanced corrosion protection.
