Versatile Kwikstage Steel Plank For Efficient Construction Projects
Since our founding, we have been committed to expanding our global presence. In 2019, we registered an export company and today, our products are trusted by customers in nearly 50 countries around the world. This growth is a testament to our dedication to quality and customer satisfaction. Over the years, we have established a comprehensive procurement system to ensure on-time delivery and excellent service to meet the needs of different customers.
Product Introduction
In the ever-evolving construction industry, efficiency and reliability are critical. Our Kwikstage System consists of a variety of basic components including Kwikstage Standards, Crossbars (Horizontal Rods), Kwikstage Crossbars, Tie Rods, Plates, Braces, and Adjustable Jack Bases, all carefully designed for optimal performance and safety.
Kwikstage steel panels are manufactured with precision and durability in mind, ensuring they can withstand the rigors of any construction environment. Our steel panels are powder coated, painted, electro-galvanized, and hot-dip galvanized, making them durable and corrosion-resistant, making them ideal for both interior and exterior applications.
Versatile Kwikstage steel plank are more than just a product; they’re a set of solutions designed to make your construction project more efficient. Whether you’re working on a residential, commercial, or industrial site, our steel panels provide the strength and stability you need to get the job done.

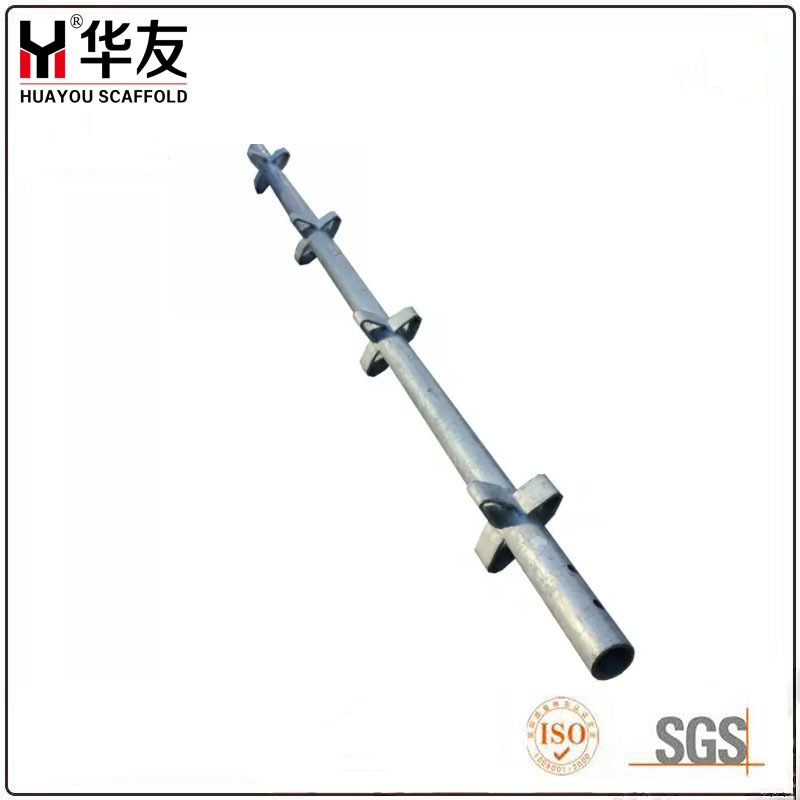

Kwikstage scaffolding vertical/standard
|
NAME |
LENGTH(M) |
NORMAL SIZE(MM) |
MATERIALS |
|
Vertical/Standard |
L=0.5 |
OD48.3, Thk 3.0/3.2/3.6/4.0 |
Q235/Q355 |
|
Vertical/Standard |
L=1.0 |
OD48.3, Thk 3.0/3.2/3.6/4.0 |
Q235/Q355 |
|
Vertical/Standard |
L=1.5 |
OD48.3, Thk 3.0/3.2/3.6/4.0 |
Q235/Q355 |
|
Vertical/Standard |
L=2.0 |
OD48.3, Thk 3.0/3.2/3.6/4.0 |
Q235/Q355 |
|
Vertical/Standard |
L=2.5 |
OD48.3, Thk 3.0/3.2/3.6/4.0 |
Q235/Q355 |
|
Vertical/Standard |
L=3.0 |
OD48.3, Thk 3.0/3.2/3.6/4.0 |
Q235/Q355 |
Kwikstage scaffolding ledger
|
NAME |
LENGTH(M) |
NORMAL SIZE(MM) |
|
Ledger |
L=0.5 |
OD48.3, Thk 3.0-4.0 |
|
Ledger |
L=0.8 |
OD48.3, Thk 3.0-4.0 |
|
Ledger |
L=1.0 |
OD48.3, Thk 3.0-4.0 |
|
Ledger |
L=1.2 |
OD48.3, Thk 3.0-4.0 |
|
Ledger |
L=1.8 |
OD48.3, Thk 3.0-4.0 |
|
Ledger |
L=2.4 |
OD48.3, Thk 3.0-4.0 |
Kwikstage scaffolding brace
|
NAME |
LENGTH(M) |
NORMAL SIZE(MM) |
|
Brace |
L=1.83 |
OD48.3, Thk 3.0-4.0 |
|
Brace |
L=2.75 |
OD48.3, Thk 3.0-4.0 |
|
Brace |
L=3.53 |
OD48.3, Thk 3.0-4.0 |
|
Brace |
L=3.66 |
OD48.3, Thk 3.0-4.0 |
Kwikstage scaffolding transom
|
NAME |
LENGTH(M) |
NORMAL SIZE(MM) |
|
Transom |
L=0.8 |
OD48.3, Thk 3.0-4.0 |
|
Transom |
L=1.2 |
OD48.3, Thk 3.0-4.0 |
|
Transom |
L=1.8 |
OD48.3, Thk 3.0-4.0 |
|
Transom |
L=2.4 |
OD48.3, Thk 3.0-4.0 |
Kwikstage scaffolding return transom
|
NAME |
LENGTH(M) |
|
Return Transom |
L=0.8 |
|
Return Transom |
L=1.2 |
Kwikstage scaffolding platform braket
|
NAME |
WIDTH(MM) |
|
One Board Platform Braket |
W=230 |
|
Two Board Platform Braket |
W=460 |
|
Two Board Platform Braket |
W=690 |
Kwikstage scaffolding tie bars
|
NAME |
LENGTH(M) |
SIZE(MM) |
|
One Board Platform Braket |
L=1.2 |
40*40*4 |
|
Two Board Platform Braket |
L=1.8 |
40*40*4 |
|
Two Board Platform Braket |
L=2.4 |
40*40*4 |
Kwikstage scaffolding steel board
|
NAME |
LENGTH(M) |
NORMAL SIZE(MM) |
MATERIALS |
|
Steel Board |
L=0.54 |
260*63*1.5 |
Q195/235 |
|
Steel Board |
L=0.74 |
260*63*1.5 |
Q195/235 |
|
Steel Board |
L=1.2 |
260*63*1.5 |
Q195/235 |
|
Steel Board |
L=1.81 |
260*63*1.5 |
Q195/235 |
|
Steel Board |
L=2.42 |
260*63*1.5 |
Q195/235 |
|
Steel Board |
L=3.07 |
260*63*1.5 |
Q195/235 |
Main feature
The Kwikstage system consists of several main components, including Kwikstage standards, beams (horizontal bars), crossbars, tie rods, steel plates, diagonal braces, and adjustable jack bases. Together, these components form a sturdy scaffolding structure that can support a variety of construction activities. The steel plates, in particular, are designed to provide workers with a solid walking surface to ensure their safety when working at height.
One of the highlights of Kwikstage steel is the wide range of finish options available. These options include powder coating, painting, electro-galvanizing, and hot-dip galvanizing. These treatments not only enhance the aesthetics of the steel, but also provide additional protection against corrosion and wear, extending the life of the scaffolding system.
Product Advantage
One of the main advantages of Kwikstage steel scaffolding is their strength and stability. The steel structure ensures that they can withstand heavy loads, making them ideal for large projects.
In addition, the modular design allows for quick assembly and disassembly, which significantly reduces labor costs and shortens project duration. A variety of surface treatments also means that these steel panels can withstand harsh weather conditions, ensuring their longevity and reliability.
In addition, since establishing our export department in 2019, our company has continued to expand its market and has successfully supplied Kwikstage systems to nearly 50 countries/regions. Our global presence has enabled us to improve our procurement system and ensure that we can effectively meet the diverse needs of our customers.
Product shortcoming
One notable drawback is their weight; while steel construction provides strength, it also makes it more cumbersome to transport and handle than lighter materials.
Additionally, the initial investment in a Kwikstage system can be higher than other scaffolding options, which can be prohibitive for some smaller contractors.
FAQS
Q1:What are the main components of the Kwikstage system?
The Kwikstage system consists of several key components that work together to provide a strong and safe scaffolding solution. These components include Kwikstage Standards (vertical posts), Crossbars (horizontal supports), Kwikstage Crossbars (crossbars), Tie Rods, Steel Plates, Diagonal Braces, and Adjustable Jack Bases. Each component plays a vital role in ensuring the structural integrity of the scaffold.
Q2:What surface finishes are available for Kwikstage components?
For enhanced durability and corrosion resistance, Kwikstage components are available in a variety of surface treatments. Common treatments include powder coating, painting, electro-galvanizing, and hot-dip galvanizing. These treatments not only extend the life of the material, but also help improve the overall safety of the scaffolding system.
Q3:Why choose Kwikstage for your building needs?
Kwikstage scaffolding is popular for its easy assembly and disassembly, making it an ideal choice for projects of all sizes. Its modular design makes it flexible in configuration to meet different site needs. In addition, our company was founded in 2019 and has successfully expanded its business scope to nearly 50 countries/regions, ensuring that customers receive high-quality products supported by a sound procurement system.
