Aluminium Mobile Tower
Aluminium Mobile Tower Information Details
Key Features:

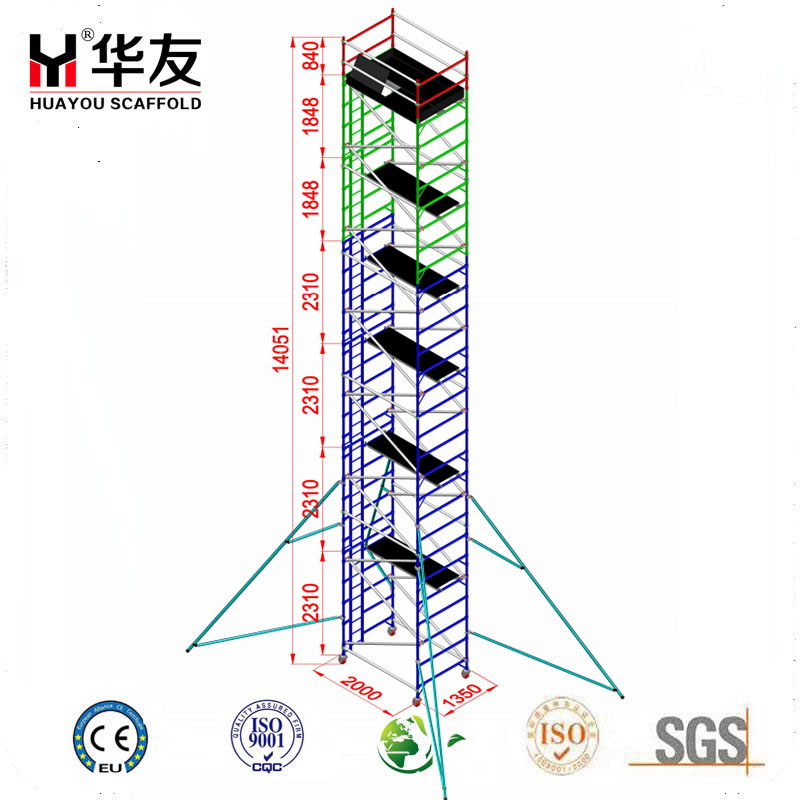

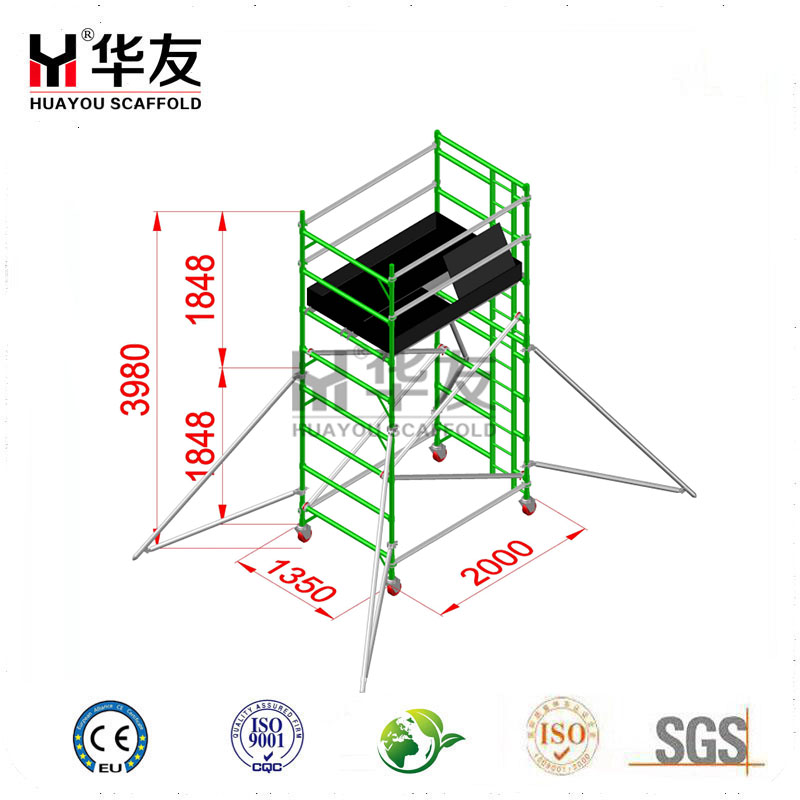

- 1. Dimensions: The tower shall have different height base on working requirements, a base width of 1.35m and a length 2m.

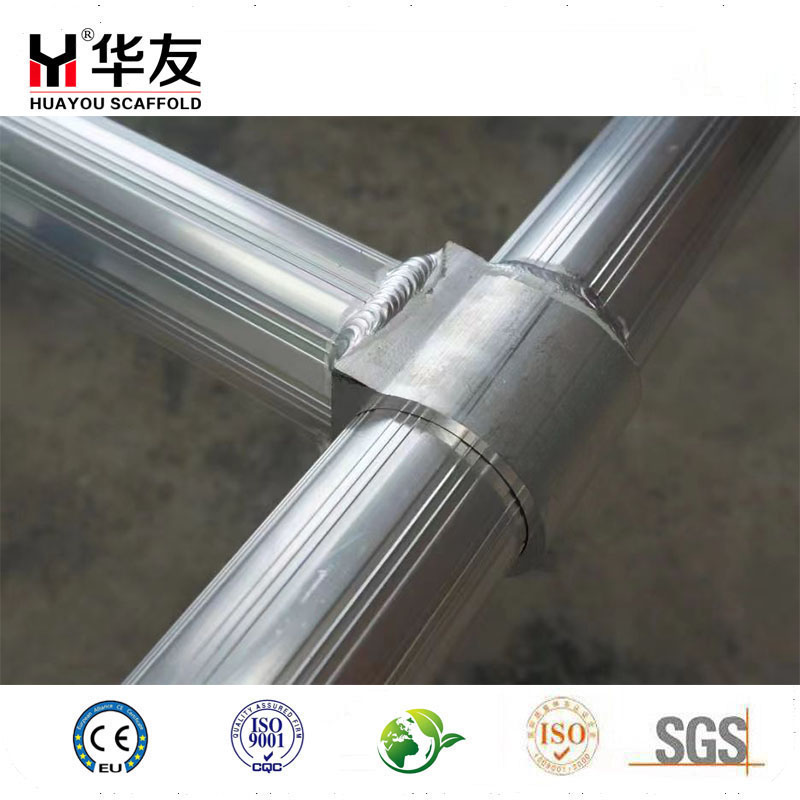

- 2. Materials: Crafted from high-strength aluminium ( light weight yet strong)
- 3. Platform Capacity: The tower shall be equipped with top working platform. Additional intermediate platforms will be valuable option. Each platform shall be able to support a load of up to 250kg, with a total safe working load of 700kg for the entire tower.

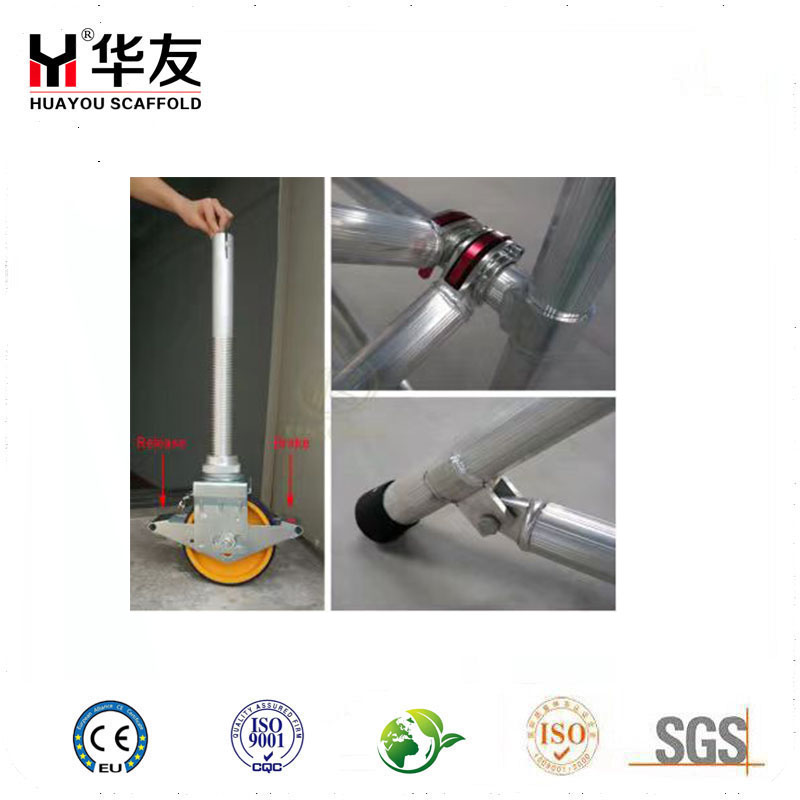

- 4. Mobility: Equipped with heavy-duty 8 inch wheels featuing brake and release option. the tower can be easily moved and securely positioned as needed.
- 5. Guardrails and toe boards: shall be on all platforms for fall protection.

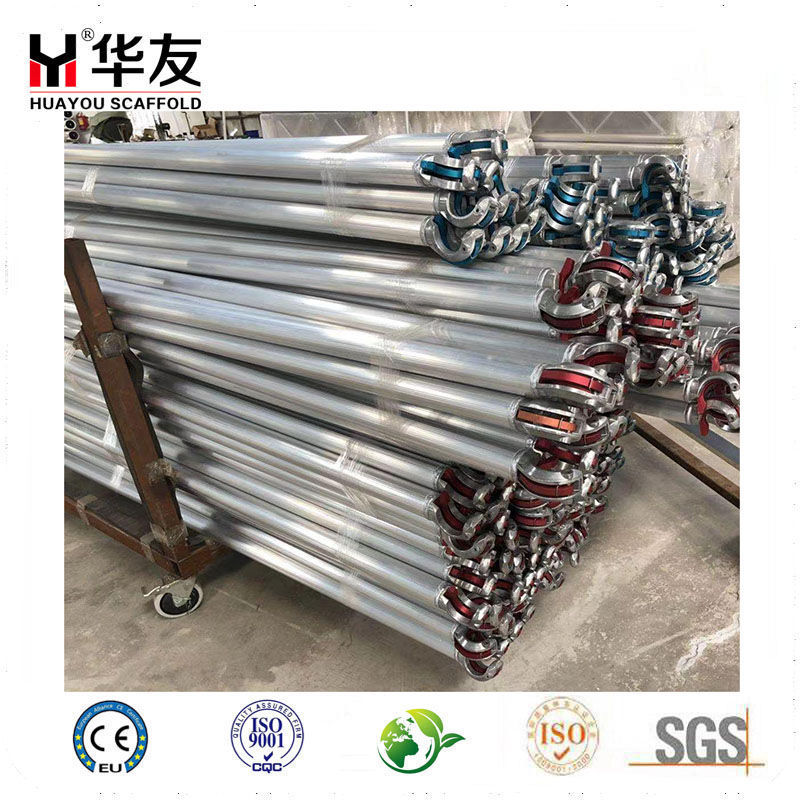

- 6. Stabilizers or outriggers: minimum 4 lateral stabilizers made from light & high-strength aluminium tubes for enhanced stability of the tower.

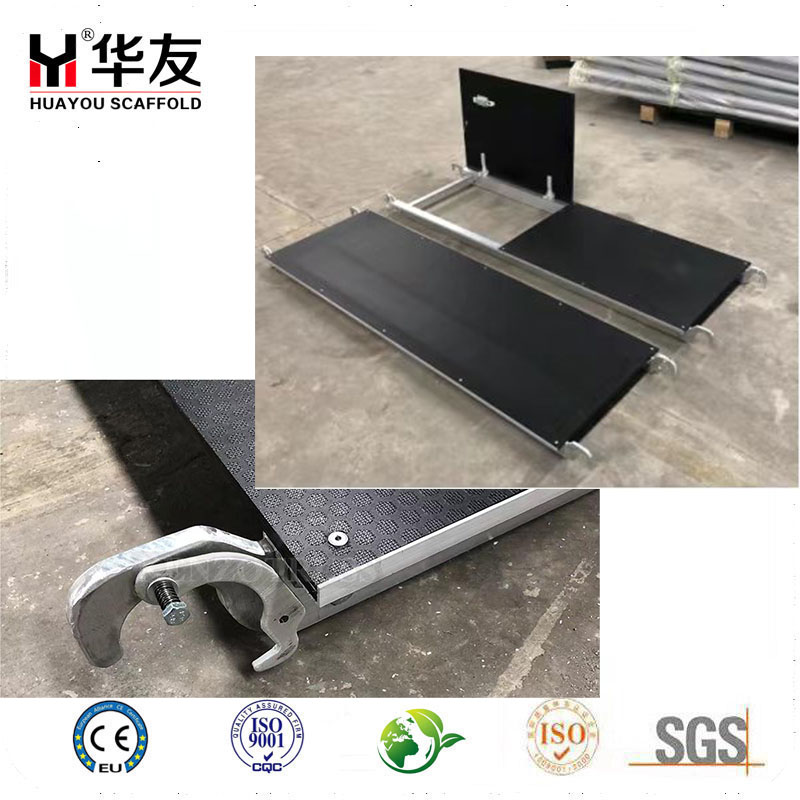

- 7. Non-slip working platforms: planks made from light & high-strength aluminium for safe working conditions.

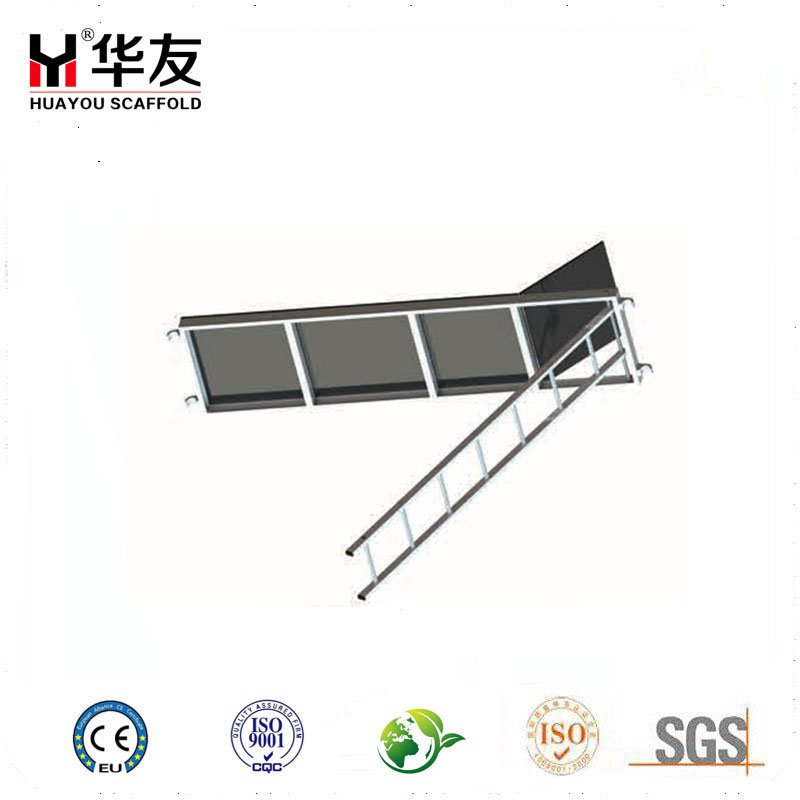

- 8. Ladder: the tower shall be equipped with ladder made from light & high-strength aluminium, easy to fit securely to the tower.

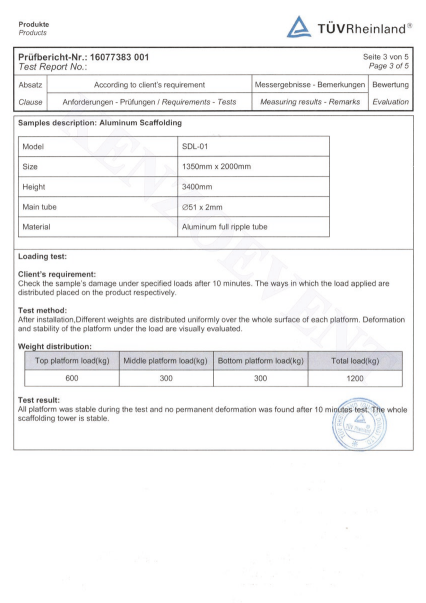

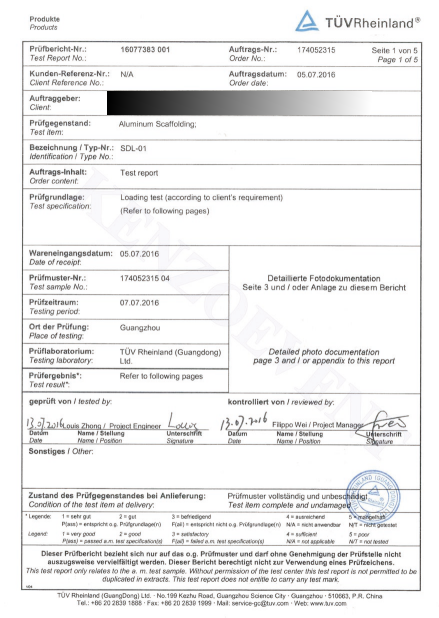

- 9. Compliance: Meets relevent safety standards for mobile access tower (BS1139-3, EN1004; HD1004...)
Main types
Aluminium single ladder
Aluminium single telescopic ladder
Aluminium multipurpose telescopic ladder
Aluminium big hinge multipurpose ladder
Aluminium tower platform
Aluminium plank with hook
1) Aluminium Single Telescopic Ladder
| Name | Photo | Extension Length(M) | Step Height (CM) | Closed Length (CM) | Unit Weight (kg) | Max Loading (Kg) |
| Telescopic ladder |  |
L=2.9 | 30 | 77 | 7.3 | 150 |
| Telescopic ladder | L=3.2 | 30 | 80 | 8.3 | 150 | |
| Telescopic ladder | L=3.8 | 30 | 86.5 | 10.3 | 150 | |
| Telescopic ladder |  |
L=1.4 | 30 | 62 | 3.6 | 150 |
| Telescopic ladder | L=2.0 | 30 | 68 | 4.8 | 150 | |
| Telescopic ladder | L=2.0 | 30 | 75 | 5 | 150 | |
| Telescopic ladder | L=2.6 | 30 | 75 | 6.2 | 150 | |
| Telescopic ladder with Finger Gap and Stabilize Bar |  |
L=2.6 | 30 | 85 | 6.8 | 150 |
| Telescopic ladder with Finger Gap and Stabilize Bar | L=2.9 | 30 | 90 | 7.8 | 150 | |
| Telescopic ladder with Finger Gap and Stabilize Bar | L=3.2 | 30 | 93 | 9 | 150 | |
| Telescopic ladder with Finger Gap and Stabilize Bar | L=3.8 | 30 | 103 | 11 | 150 | |
| Telescopic ladder with Finger Gap and Stabilize Bar | L=4.1 | 30 | 108 | 11.7 | 150 | |
| Telescopic ladder with Finger Gap and Stabilize Bar | L=4.4 | 30 | 112 | 12.6 | 150 |
2) Aluminium Multipurpose Ladder
|
Name |
Photo |
Extension Length (M) |
Step Height (CM) |
Closed Length (CM) |
Unit Weight (Kg) |
Max Loading (Kg) |
|
Multipurpose Ladder |
|
L=3.2 |
30 |
86 |
11.4 |
150 |
|
Multipurpose Ladder |
L=3.8 |
30 |
89 |
13 |
150 |
|
|
Multipurpose Ladder |
L=4.4 |
30 |
92 |
14.9 |
150 |
|
|
Multipurpose Ladder |
L=5.0 |
30 |
95 |
17.5 |
150 |
|
|
Multipurpose Ladder |
L=5.6 |
30 |
98 |
20 |
150 |
3) Aluminium Double Telescopic Ladder
| Name | Photo | Extension Length(M) | Step Height (CM) | Closed Length (CM) | Unit Weight (Kg) | Max Loading(Kg) |
| Double Telescopic Ladder |  |
L=1.4+1.4 | 30 | 63 | 7.7 | 150 |
| Double Telescopic Ladder | L=2.0+2.0 | 30 | 70 | 9.8 | 150 | |
| Double Telescopic Ladder | L=2.6+2.6 | 30 | 77 | 13.5 | 150 | |
| Double Telescopic Ladder | L=2.9+2.9 | 30 | 80 | 15.8 | 150 | |
| Telescopic Combination Ladder | L=2.6+2.0 | 30 | 77 | 12.8 | 150 | |
| Telescopic Combination Ladder | L=3.8+3.2 | 30 | 90 | 19 | 150 |
4) Aluminium Single Straight Ladder
| Name | Photo | Length (M) | Width (CM) | Step Height (CM) | Customize | Max Loading(Kg) |
| Single Straight Ladder |  |
L=3/3.05 | W=375/450 | 27/30 | Yes | 150 |
| Single Straight Ladder | L=4/4.25 | W=375/450 | 27/30 | Yes | 150 | |
| Single Straight Ladder | L=5 | W=375/450 | 27/30 | Yes | 150 | |
| Single Straight Ladder | L=6/6.1 | W=375/450 | 27/30 | Yes | 150 |
