Durable Cup Lock Scaffolding Provides Safe Support For Construction
Description

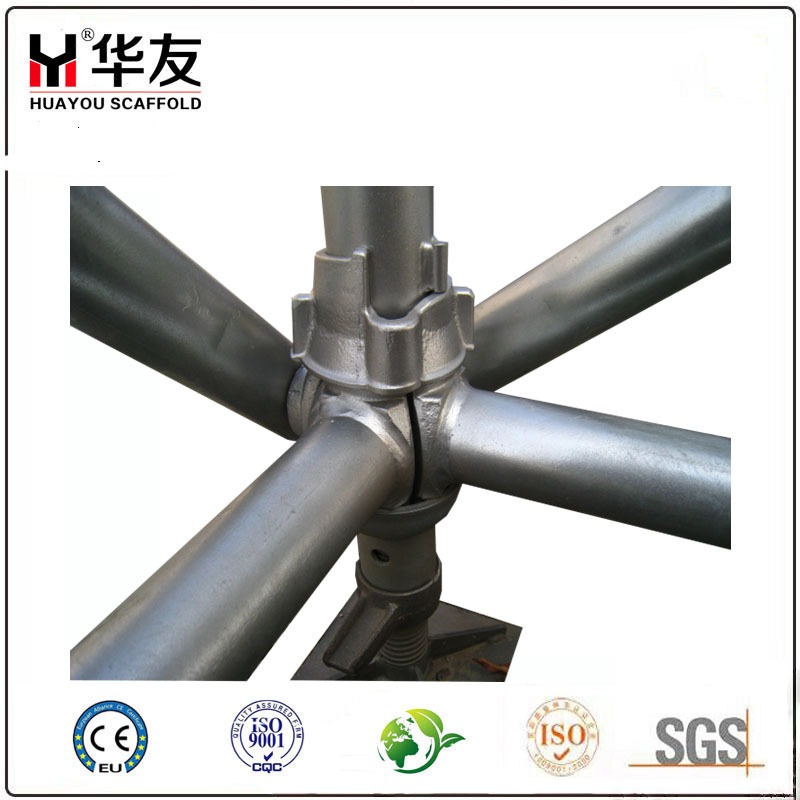

The Cuplock system is a globally widely used modular scaffold. With its unique cup lock design, it enables rapid assembly and high stability, making it suitable for ground construction, suspension or mobile high-altitude operations. This system is composed of vertical standard rods, horizontal crossbars (classification accounts), diagonal supports, base jacks and other components, and is made of Q235/Q355 steel pipe material to ensure high strength and durability. Its standardized design supports flexible configuration and can be matched with steel plates, stairs and other accessories to meet the diverse needs of residential to large commercial projects, taking into account both construction efficiency and worker safety.
Specification Details
|
Name |
Diameter (mm) |
thickness(mm) | Length (m) |
Steel Grade |
Spigot |
Surface Treatment |
|
Cuplock Standard |
48.3 |
2.5/2.75/3.0/3.2/4.0 |
1.0 |
Q235/Q355 |
Outer sleeve or Inner Joint |
Hot Dip Galv./Painted |
|
48.3 |
2.5/2.75/3.0/3.2/4.0 |
1.5 |
Q235/Q355 |
Outer sleeve or Inner Joint |
Hot Dip Galv./Painted |
|
|
48.3 |
2.5/2.75/3.0/3.2/4.0 |
2.0 |
Q235/Q355 |
Outer sleeve or Inner Joint |
Hot Dip Galv./Painted |
|
|
48.3 |
2.5/2.75/3.0/3.2/4.0 |
2.5 |
Q235/Q355 |
Outer sleeve or Inner Joint |
Hot Dip Galv./Painted |
|
|
48.3 |
2.5/2.75/3.0/3.2/4.0 |
3.0 |
Q235/Q355 |
Outer sleeve or Inner Joint |
Hot Dip Galv./Painted |
|
Name |
Diameter (mm) |
Thickness (mm) |
Steel Grade |
Brace Head |
Surface Treatment |
|
Cuplock Diagonal Brace |
48.3 |
2.0/2.3/2.5/2.75/3.0 |
Q235 |
Blade or Coupler |
Hot Dip Galv./Painted |
|
48.3 |
2.0/2.3/2.5/2.75/3.0 |
Q235 |
Blade or Coupler |
Hot Dip Galv./Painted |
|
|
48.3 |
2.0/2.3/2.5/2.75/3.0 |
Q235 |
Blade or Coupler |
Hot Dip Galv./Painted |
Advantages
1.Modular design, quick installation - The unique cup lock mechanism simplifies assembly and improves construction efficiency.
2.High strength and stability - The vertical standard and the horizontal ledger are closely interlocked, forming a stable framework with strong load-bearing capacity.
3.Multi-functional applicability - Supports ground construction, suspended installation and rolling tower configuration, adapting to high-altitude operations and complex project requirements.
4.Safe and reliable - The rigid structure combined with diagonal supports ensures the safety of high-altitude operations and meets modern building standards.

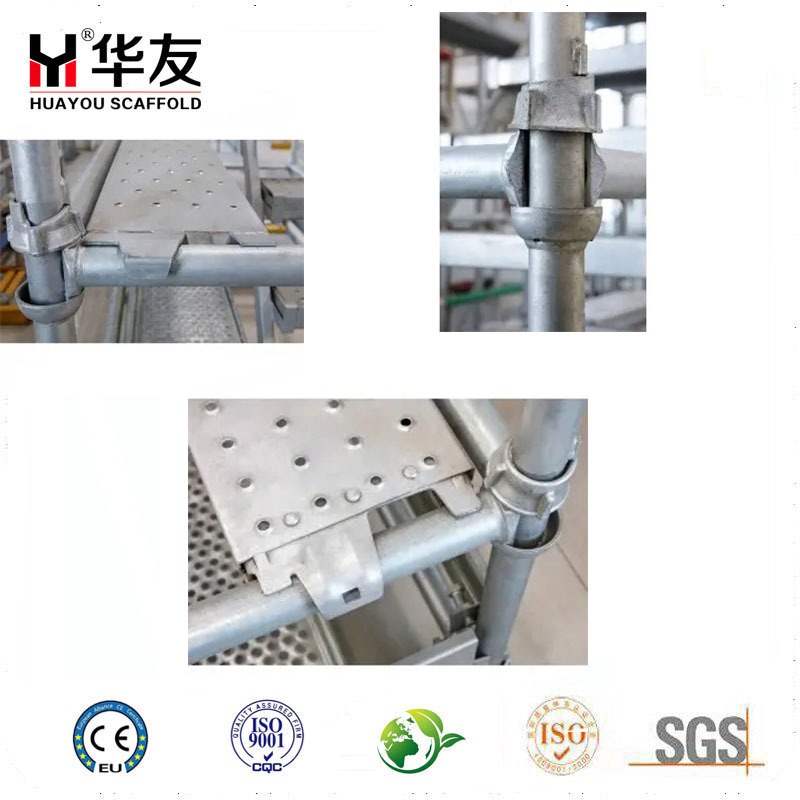

5.Flexible expansion - It can be matched with standard parts, diagonal braces, steel plates, jacks and other components to meet different construction scenarios (such as platforms, stairs, etc.).
6.High-quality materials - Q235/Q355 steel pipes and durable fittings (forged/pressed joints) are used to ensure a long service life.
7.Economically efficient - Reduces installation time and labor costs, suitable for diverse needs ranging from residential to large commercial projects.
FAQS
1. What are the main advantages of Cuplock scaffolding?
Cuplock scaffolding features a unique cup lock design, which enables quick assembly and strong stability. It is suitable for high-altitude operations and can be configured as either fixed or mobile structures to meet various construction requirements.
2. What are the main components of Cuplock scaffolding?
The main components include vertical standard rods (vertical rods), horizontal crossbars (classification rods), diagonal supports, base jacks, U-head jacks, steel plates (springboards), and optional accessories such as stairs and walkways.
3. In which construction scenarios is Cuplock scaffolding suitable?
It is applicable to various projects such as residential buildings, commercial buildings, Bridges, factories, etc. It supports ground construction, suspended installation and rolling tower configuration, and is suitable for high-altitude operations.
