Formwork Clamp & Concrete Formwork Clamps – Quality Tools

Short Description:

The Formwork Casted Clamp is specifically designed for steel Euro formwork systems. Its primary functions are to securely join two steel formwork panels and provide stable support for slab forms, wall forms, and similar applications.

Unlike pressed clamps, our casting clamp is manufactured through a complete casting process. We start with high-purity raw materials, which are heated and melted into molten iron. The molten metal is then poured into molds, followed by controlled cooling and solidification. After demolding, each piece undergoes polishing and grinding, followed by electro-galvanizing. Finally, the components are assembled and packed.

This production method ensures consistent quality across all our products.


  • Raw Materials: QT450
  • Unit weight : 2.45kg/2.8kg
  • Product Detail

    Product Tags

    Our Formwork Casted Clamp is specifically designed for steel Euro formwork systems. Its primary function is to securely fix two steel forms together, ensuring a tight and stable joint. It also provides reliable support for slab forms, wall forms, and other concrete formwork applications.

    Unlike pressed clamps, our casting clamp is produced through a complete casting process. We use high-purity raw materials, which are heated and melted, then poured into molds for cooling and solidification. After that, each clamp undergoes polishing, grinding, electro-galvanizing, assembly, and final packing. Every step is strictly controlled to ensure consistent quality.

    Formwork Accessories

    Name Pic. Size mm Unit weight kg Surface Treatment
    Tie Rod   15/17mm 1.5kg/m Black/Galv.
    Wing nut   15/17mm 0.3kg Black/Electro-Galv.
    Wing nut 20/22mm 0.6kg Black/Electro-Galv.
    Round nut with 3 wings 20/22mm, D110 0.92kg Black/Electro-Galv.
    Round nut with 3 wings   15/17mm, D100 0.53 kg / 0.65kg Black/Electro-Galv.
    Round nut with 2 wings   D16 0.5kg Black/Electro-Galv.
    Hex nut   15/17mm 0.19kg Black/Electro-Galv.
    Tie nut- Swivel Combination Plate nut   15/17mm 1kg  Black/Electro-Galv.
    Washer   100x100mm   Black/Electro-Galv.
    Panel lock clamp 2.45kg Electro-Galv.
    Formwork clamp-Wedge Lock Clamp     2.8kg Electro-Galv.
    Formwork clamp-Universal Lock Clamp   120mm 4.3 Electro-Galv.
    Steel cone  DW15mm  75mm 0.32kg Black/Electro-Galv.
    Formwork Spring clamp   105x69mm 0.31 Electro-Galv./Painted
    Flat Tie   18.5mmx150L   Self-finished
    Flat Tie   18.5mmx200L   Self-finished
    Flat Tie   18.5mmx300L   Self-finished
    Flat Tie   18.5mmx600L   Self-finished
    Wedge Pin   79mm 0.28 Black
    Hook Small/Big       Painted silver

    Details Showing

    It's true that requirements vary significantly across different markets, and product quality can be inconsistent. Many end users, unfortunately, are not well informed about quality standards — their main focus tends to be price comparison rather than performance.

    That's why we offer different quality levels to match specific needs. For customers who demand high performance, we recommend our 2.8kg annealed option. For projects with lower requirements, the 2.45kg version is a suitable and cost-effective choice.

    Name Unit weight kg Technique Process Surface Treatment Raw materials
    Formwork Casted clamp 2.45kg and 2.8kg Casting Electro-Galv. QT450

    Advantages

    1. Casting Process – Stronger than Pressed

    1.Our Formwork Clamp is made by casting, not pressing. That means the entire production process is different: we use high-purity raw materials, heat and melt them, pour molten iron into molds, then cool and solidify. After that, we polish, grind, apply electro-galvanized coating, assemble, and pack. The result is a denser, more durable clamp compared to pressed alternatives.

    2. Reliable Connection for Formwork Systems

    In any concrete building project, Concrete Formwork Clamps play a critical role — they connect steel forms, support slab forms, wall forms, and ensure two steel formwork panels join tightly. Our clamps are specifically designed for steel Euro form systems, giving you a secure and stable connection for the entire formwork structure.

    3. High-Quality Raw Materials & Strict Quality Control

    Tianjin Huayou Scaffolding Co., Ltd. is located in Tianjin City, which gives us easy access to different steel grades and enables strict quality control throughout production. From molten iron to finished clamp, every batch is monitored to ensure consistency and reliability.

    4. Corrosion Protection – Electro-Galvanized Finish

    After casting and grinding, each Formwork Clamp receives an electro-galvanized surface treatment. This adds a layer of rust protection, extending the service life even in humid or outdoor construction environments.

    5. Global Export Experience

    Our Concrete Formwork Clamps are already exported to many countries and regions, including:

    • Southeast Asia
    • Middle East
    • Europe
    • America

    This international track record speaks to our product quality and ability to meet different market standards.

    6. Customer-Focused Principle

    We operate on a simple but serious principle: Quality First, Customer Foremost, Service Utmost. We don't just sell clamps — we work with you to meet your project requirements and build a mutually beneficial, long-term cooperation.



    Company Introduction

    Tianjin Huayou Scaffolding Co., Ltd is located in Tianjin City, which can give us more support to choose different steel grade raw materials and also can control qualtiy.
    For Formwork system, the clamps are very important parts to connect whole system for concrete building. Currently, there are two types formwork clamps, one is casting and the other is pressed.
    Currently, our products are export to many countries that from South East Asia region, Middle East Market and Europe, America, etc.
    Our principle: "Quality First, Customer Foremost and Service Ultmost." We devote ourselves to meet your
    requirements and promote our mutually beneficial cooperation.

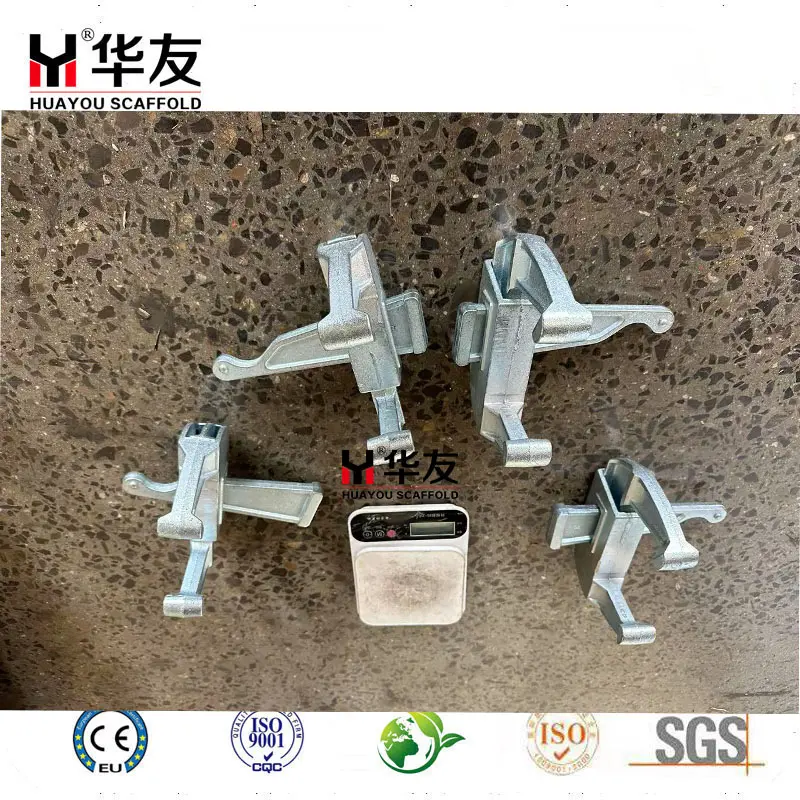

    Formwork Clamp (2)
