HuaYou Pressed Double Coupler for Steel Scaffolding

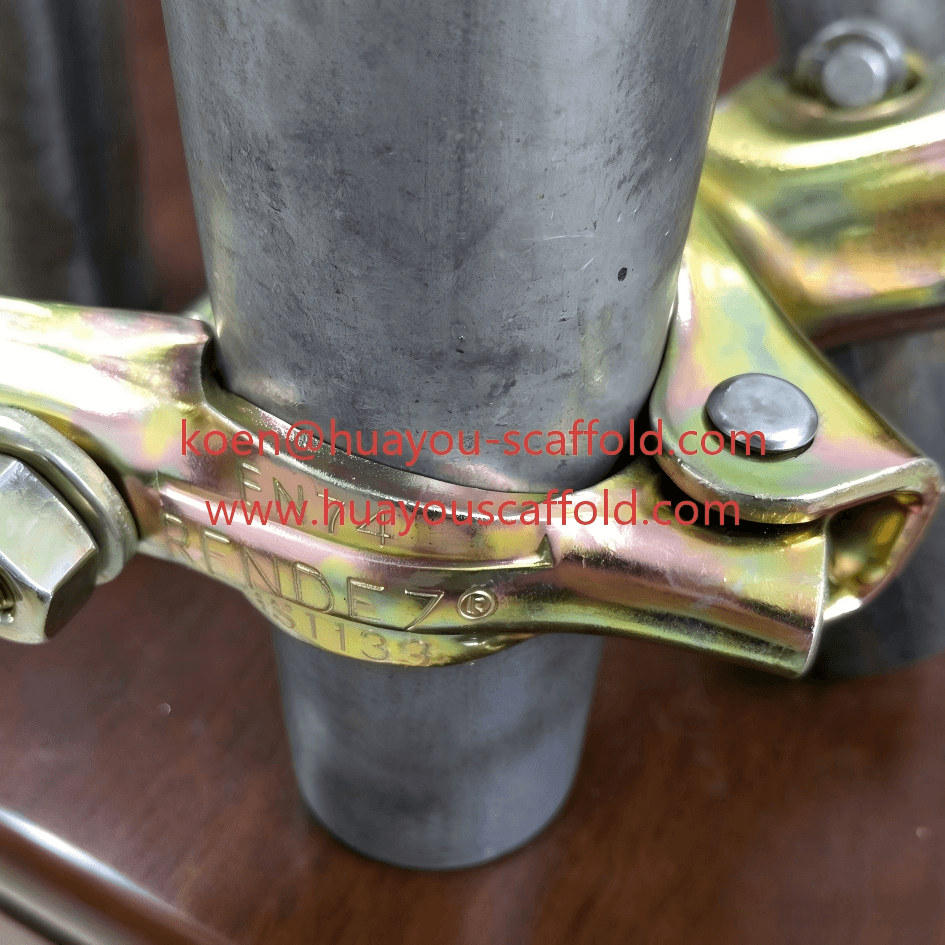

HuaYou Pressed Double Coupler is a fixed scaffolding connector used to join two scaffold tubes at a right angle. Manufactured by pressing steel plates into shape, this Pressed Double Scaffolding Coupler provides a practical connection solution for tube-and-coupler scaffolding systems used in construction, maintenance, and industrial projects.
Also known as a Scaffold Double Coupler, Scaffolding Double Coupler, or Right Angle Coupler, this fitting holds intersecting tubes in a fixed 90-degree position. It is suitable for assembling scaffold structures where correctly matched tube sizes and compatible couplers are required.
As a versatile Pressed Right Angle Coupler, this product can be supplied for different project specifications, subject to the selected model, applicable standard, and confirmed technical requirements.
Pressed Double Coupler Specifications
| Item | Specification |
| Product Name | Pressed Double Coupler |
| Brand | HuaYou |
| Product Type | Fixed Double Coupler / Right Angle Coupler |
| Material | Press-formed steel plate |
| Connection Angle | 90 degrees |
| British-Type Tube Size | 48.3 mm |
| Japanese/Korean-Type Tube Size | 48.6 mm, depending on model |
| Available Standards | BS 1139, EN 74, JIS A 8951, KS 3501, subject to model and certification |
| Surface Finish | Zinc-plated or hot-dip galvanized |
| Bolt and Nut | Configuration according to the selected model |
| Weight | Depends on model and specification |
| Application | Tube-and-coupler scaffolding, construction and industrial maintenance |
| Packaging | Bulk or customized packaging, subject to order |
| Customization | Available upon confirmation of tube size, standard, finish, and quantity |
Note: The table lists configurable product options. Please confirm the exact standard, dimensions, material grade, weight, and certification for the selected HuaYou model before placing an order.
Pressed Double Coupler vs. Forged Double Coupler
Pressed and forged double couplers are both used to connect scaffold tubes at right angles, but their manufacturing processes and intended specifications differ.
| Comparison | Pressed Double Coupler | Forged Double Coupler |
| Manufacturing Process | Formed from steel plate | Forged from steel stock |
| Typical Characteristics | Lightweight, practical design | Often heavier, with a robust forged body |
| Common Selection Factors | Tube size, system standard, weight, cost | Required performance, tube specification, and applicable standard |
| Surface Finish | Zinc-plated or hot-dip galvanized options | Zinc-plated or hot-dip galvanized options |
| Selection Guidance | Choose according to the approved scaffolding design | Choose when the specified system requires a suitable forged fitting |
Neither type should be selected based on appearance or weight alone. Always verify the applicable standard, test results, tube compatibility, and required load performance.
Key Advantages of HuaYou Pressed Double Coupler
1. Secure 90-Degree Tube Connection
The Pressed Scaffold Coupler is designed to connect two compatible scaffold tubes at a fixed right angle. Its pressed body and fastening assembly help maintain the intended connection when correctly installed and used within the applicable system requirements.
2. Multiple Standard Options
Different scaffolding markets use different tube dimensions and fitting specifications. HuaYou can supply options for British, Japanese, and Korean market requirements, helping buyers select a suitable Scaffolding Coupler for their existing tube-and-coupler systems.
3. Corrosion-Resistant Surface Finishes
Zinc-plated and hot-dip galvanized finishes are available according to the selected specification. These treatments help reduce corrosion and support repeated use in suitable construction and maintenance environments.
4. Practical and Efficient Installation
The straightforward clamp design allows scaffold tubes to be connected using the corresponding bolt-and-nut assembly. Correctly matched components and proper tightening help make installation and dismantling more manageable for trained scaffold personnel.
5. Flexible Supply for Project Requirements
HuaYou can discuss product requirements such as tube diameter, applicable standard, surface treatment, packaging, and order quantity. Buyers can confirm these details before production to improve compatibility with their scaffolding projects.
Applications of Pressed Double Scaffolding Couplers
Building Construction
A Steel Scaffolding Coupler can connect horizontal and vertical scaffold tubes in temporary access structures used for building construction, exterior work, and renovation.
Industrial Maintenance
Pressed double couplers can be used in compatible tube-and-coupler scaffolding for maintenance access around industrial facilities, workshops, and equipment areas.
Infrastructure Projects
When the relevant scaffolding design permits, a Right Angle Coupler can help assemble temporary scaffold structures for infrastructure construction, repair, and inspection work.
Oil, Gas, and Marine Maintenance
With an appropriate corrosion-resistant finish and a verified application specification, pressed scaffold fittings may be used in suitable industrial maintenance environments. The complete scaffold system must be designed for the actual site conditions.
How to Choose the Right Pressed Double Coupler
Before purchasing a Pressed Double Coupler, consider the following factors:
1.Tube diameter: Confirm whether the scaffold tubes are 48.3 mm, 48.6 mm, or another specified size.
2.Applicable standard: Identify the required British, Japanese, Korean, or other project-specific standard.
3.Surface protection: Choose zinc plating or hot-dip galvanizing according to the expected environment and maintenance plan.
4.Fastener configuration: Check bolt grade, nut dimensions, and other hardware requirements.
5.Project performance requirements: Confirm that the selected coupler and complete scaffold system meet the applicable design and safety requirements.
Providing these details helps HuaYou identify the appropriate Scaffold Coupler for your application.
