Pressed Swivel Coupler Scaffolding Manufacturer Huayou

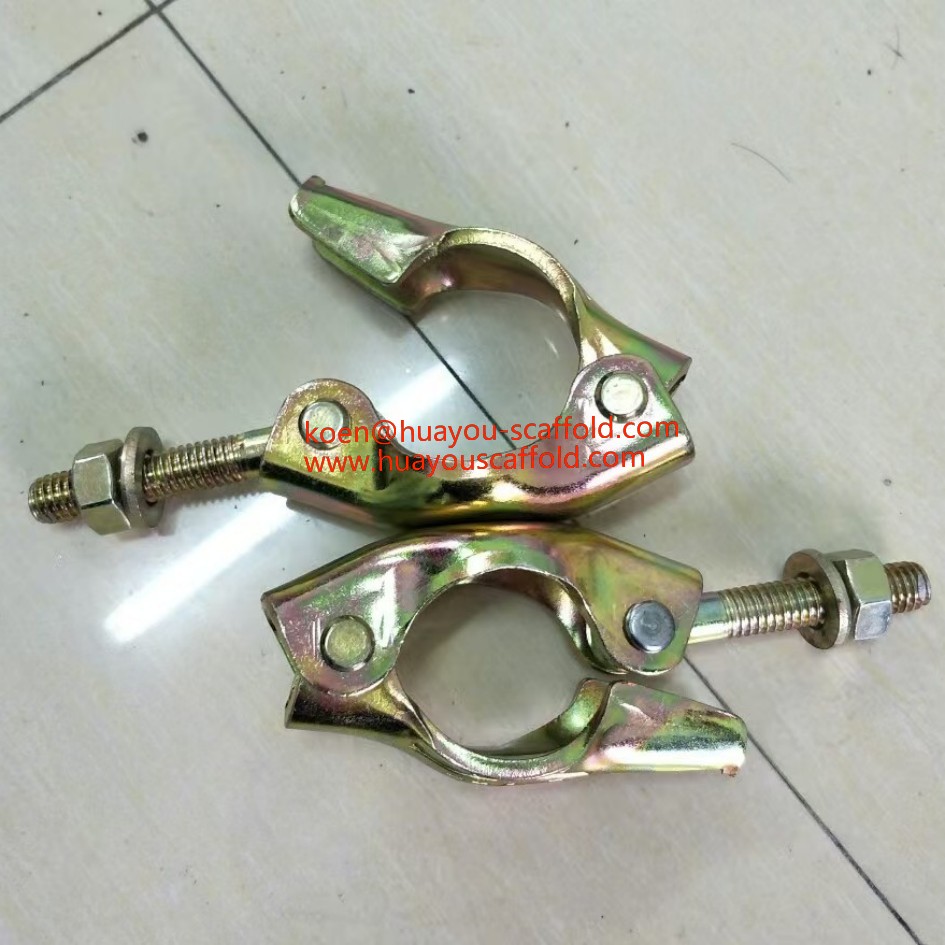

Pressed swivel couplers are a type of scaffolding fitting designed to join two tubes at almost any angle. Unlike fixed couplers, they have a joint that rotates. Position the two halves as needed, then tighten the bolt to hold the tubes securely. This makes them suitable for connections that don’t meet at a standard right angle.
The term “pressed” describes how the coupler is manufactured. Huayou forms the body and cover from steel plate using molds and jigs, rather than forging them from round bar. British-standard couplers are made from 5 mm plate, while Japanese and Korean models use 3 mm plate and are lighter.
Huayou also produces pressed sleeve couplers, single couplers and fixed clamps in the same product range, making it easier to combine items in one order. Both swivel coupler styles use grade 8.8 bolts. British-standard models have a 1/2-inch bolt with 21 mm cross nuts and washers; Japanese-standard models use a 7/16-inch bolt with 17 mm flange nuts.
British Type Pressed Swivel Coupler EN 74 Class A Specification
| Item | Value |
| Weight | 1.00 kg |
| Plate thickness | 5 mm |
| Slipping force | Required 10 kN / tested 20 kN |
| Failure force | Required 14 kN / tested 23.52 kN |
| Tube size | O.D 48.3 mm |
| Bolt | 8.8 class, 1/2" with 21mm cross nuts and washers |
| Finish | Yellow passivate |
Japanese Type Pressed Swivel Coupler JIS A 8951 Specification
| Item | Specification |
| Weight | 0.65 kg |
| Plate thickness | 3 mm |
| Slippage | Less than 10 mm at 7355 N |
| Failure load | Required over 10787 N / tested 12277 N |
| Eye bolt nut torque | 44.13 N·m |
| Bolt | 7/16" with 17mm flange nuts |
| Finish | Zinc plated |
Key Features of Huayou Pressed Swivel Coupler
1.Material & Structure:
The Pressed Swivel Coupler is Produced from High Strength (SPHC) Steel Plate Stamped , giving it stable mechanical performance and consistent quality with each subsequent batch.
2.Positioning Function
The adjustable head on swivel allows two scaffold tubes to be fixed at any working angle – the same family of coupler also offers pressed fixed clamps for 90-degree right angle connections.
3.Standard Selection:
With multiple different international standard options including BS1139, EN 74, JIS A 8951 and KS, available for conforming to different region scaffold pipe outer diameters.
4.Surface Options
Galvanized surface treatments 2 to be chosen based on anti-rots environment, and then hot-dip galvanization for marine and offshore uses.
5.Installation:
The No. 8.8 grade high-strength Bolt-nut Assembly for rapid tightening helps you to put together and dismantle from site conditions cleanly and casually, with no special tools required.
6.Pipe Compatibility
This Scaffold Swivel Coupler, a key part of our Scaffolding Couplers range, is capable across a broad range of cross-size combinations, including scaffold pipe of varying diameters, from O.D 42mm to O.D 60mm.
Why Choose Huayou Pressed Swivel Coupler?
1.Load Capacity and Slipping Force:
SGS Test Report Included in Every Batch; ask & we send prior to placing order.
2.Dual Standard Production:
Line produces both BS/EN and JIS couplers, so mixed orders are delivered from one plant.
3.Total Product Range:
We press in-house all swivel, sleeve, single, fixed, board, ladder, toe board fittings, making prices and quality even.
4.Batch Quality Control:
Raw materials, loading and mock-up samples checked before goods come out of the factory.
5.Factory Price Cut
No markup from middleman, Direct support from the production team.
6.Global Customer Service
We have the same entire archive and delivery system for almost 50 countries that have been using our products customers worldwide since 2013.
FAQs
Q: Which scaffold tube sizes fit your pressed swivel coupler?
A: The standard O.D. is 48.3mm for the British coupler and 48.6mm for the JIS coupler. 48.3×60mm, 42.7×48.6mm and 42×48.3mm mixed sizes also possible.
Q: Do you provide load test reports?
A: Yes. All products are tested for load capacity and slipping force by a third-party laboratory with the reports sent with the order or by request.
Q: Can I order galvanizers for hot dip galvanized couplers?
A: That would be provided for Coastal or offshore. Please give us your site conditions and we will suggest a finish.

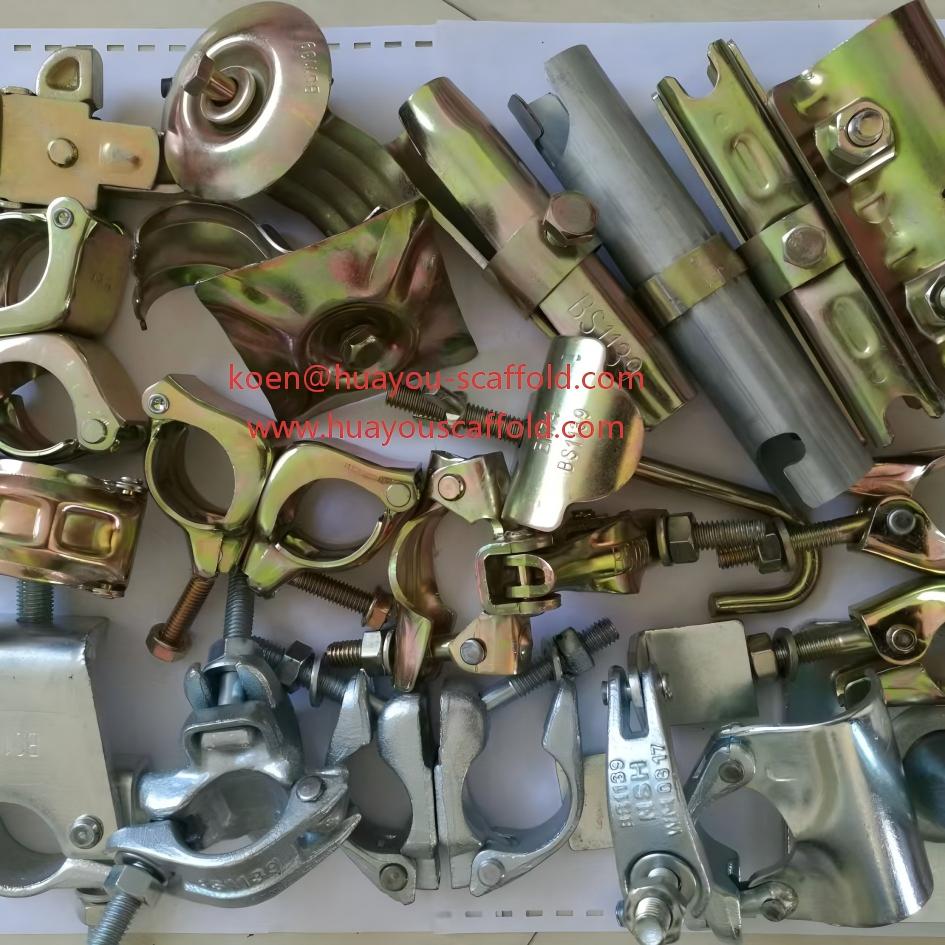

Q: Do you supply other pressed scaffold couplers?
A: Yes. Along with swivel couplers, Huayou makes pressed board retaining couplers for platform edge fixing, plus sleeve, single and fixed pressed fittings in the same galvanized finishes.
